Schneider Electric TA80D3L8004TPE TransferPacT Active 3P 800 A 400 V LCD Automatic Transfer Switch

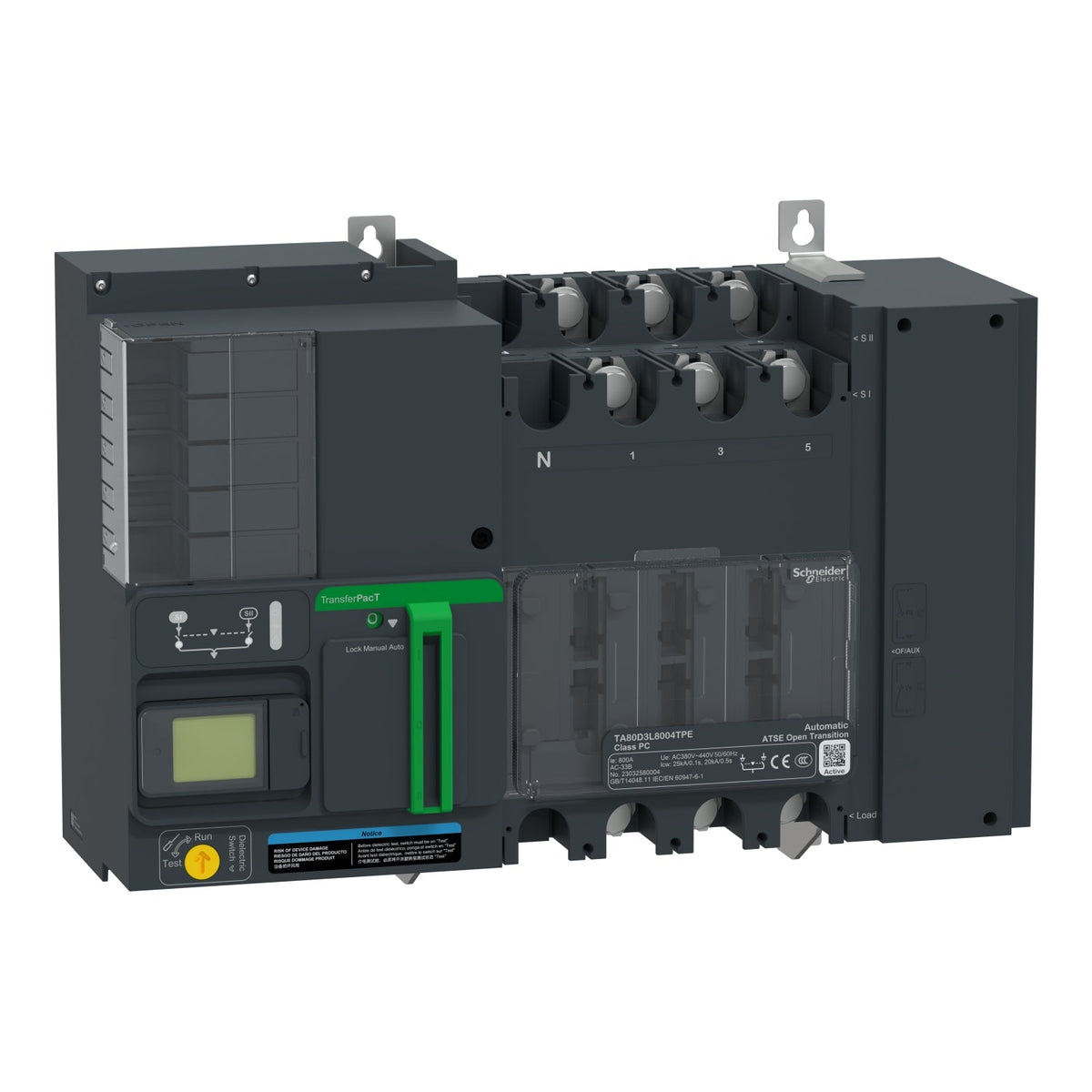

The TA80D3L8004TPE is a Schneider Electric TransferPacT automatic transfer switch rated 800 A at 400 V AC, 3-pole, built on the 800 A frame and fitted with a LCD controller. It switches a load between two independent AC sources without an external controller, holding 800 A continuously at 60 degrees C ambient inside a distribution panel.

Technical Specifications

Certifications & Standards

• CE
• CB
• CCC
• IEC 60947-6-1

Selection Notes

The LCD controller on the TA80D3L8004TPE gives a local status and alarm display with push-button setting, which suits panels where an operator needs to read source and alarm status without opening the cover. At 800 A, the TA80D3L8004TPE runs its 800 A frame at full rated current with no spare capacity margin. The 3-pole configuration switches the phase conductors only, with the neutral left solid, a choice that follows the earthing arrangement (TN-C-S vs TN-S) of the installation it serves. The 400 V AC rated Icm of 40 kA alone (330 kA backed by an upstream protective device) sets how much fault current the switch can close onto without welding its contacts, a figure to check against the available short-circuit current at the installation point.

Applications

TransferPacT automatic transfer switches of this type change the power source for life-safety and continuity loads such as fire-fighting equipment, smoke extraction fans, sprinkler pumps and emergency lighting, and are used in industrial and commercial buildings, data centers, healthcare facilities and transportation infrastructure where an uninterrupted supply between two sources is required.
