Schneider Electric SSP1A475BDT Harmony SSP1 75 A Zero-Voltage Switching Solid State Relay

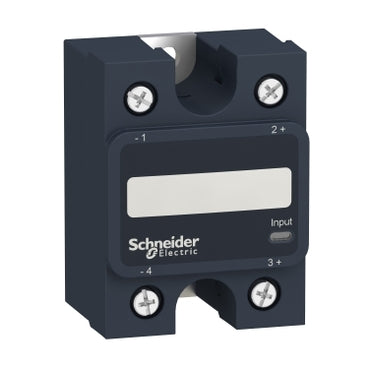

The Schneider Electric SSP1A475BDT is a Harmony SSP1 single-phase solid state relay rated 75 A, panel mounted with a supplied thermal pad. It switches a 48-660 V AC load from a 4-32 V DC control input using zero-voltage switching, with a 0.5 cycle turn-on and turn-off response time and no mechanical contacts to wear.

Technical Specifications

Certifications & Standards

• CE
• EAC
• UL
• CSA
• IEC 60950-1
• UL 508
• CSA C22.2 No 14-13
• IEC 62314

Selection Notes

With a 4-32 V DC control input, the SSP1A475BDT is the variant for panels where the control signal comes from a PLC output, transmitter or low-voltage logic circuit rather than line voltage; the M7T-suffix variant in the same SSP1 range takes a 90-280 V AC input instead. Zero-voltage switching turns the SCR on only as the load waveform crosses zero, which limits inrush-related electrical noise and is the reason this relay is specified over a mechanical contactor for resistive heating loads that switch frequently. The 75 A rating and supplied thermal pad size the heatsink interface for continuous duty at rated current; derate the load current for higher ambient or reduced heatsink area.

Applications

Used to switch resistive heating elements, single-phase motor loads and other high-cycle AC loads from low-voltage DC control signals without contact wear.
