Schneider Electric SSM1A112P7 Harmony Solid State Relay 12 A 24-280 V AC Output DIN Rail Solid State Relay

% $-62.13

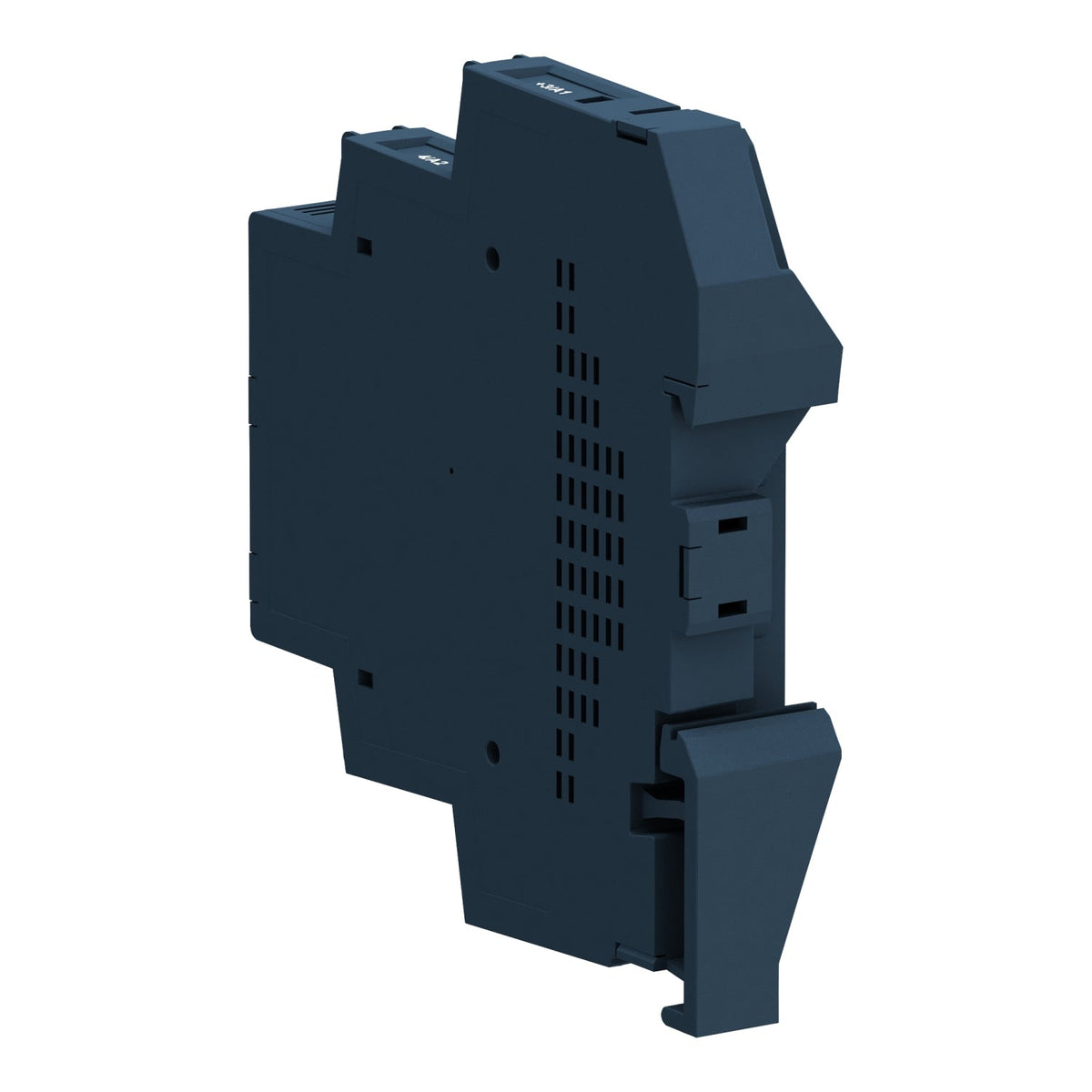

Schneider Electric SSM1A112P7 Harmony DIN rail solid state relay 12A 200-265V AC input
Schneider Electric SSM1A112P7 Harmony DIN rail solid state relay 12A 200-265V AC input

Schneider Electric SSM1A112P7 Harmony Solid State Relay 12 A 24-280 V AC Output DIN Rail Solid State Relay

Brand: Schneider Electric
Reference No: SSM1A112P7
Catalog No: SSM1A112P7
Series: Harmony Solid State Relays
Tariff Code (HS): 853649
Rated Current: 12 A
Rated Voltage: 24-280 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$62.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric SSM1A112P7 is a Harmony Solid State Relays DIN-rail mounted single-phase relay rated 12 A, switching a 24-280 V AC load with zero-voltage switching. It is controlled by a 200-265 V AC input, has a built-in heat sink, and signals input status with a green LED.

Technical Specifications

Reference SSM1A112P7
Brand Schneider Electric
Range Harmony Solid State Relays
Device Short Name SSM
Product Type Modular DIN rail relay
Number of Phases 1 phase
Mounting Symmetrical DIN rail
Rated Current 12 A
Output Switching Mode Zero voltage switching
Output Voltage 24-280 V AC
Control Circuit Voltage (Uc) 200-265 V AC
Load Current Range 0.15-12 A
Pick-up Voltage 200 V AC (turn-on)
Drop-out Voltage 90 V AC (turn-off)
Input Current 2.5-3.5 mA
Dielectric Strength 4 kV AC input/output
Insulation Resistance 1000 MOhm at 500 V DC
Rated Insulation Voltage (Ui) 280 V
Maximum Voltage Drop <1.3 V on-state
Response Time 0.5 cycle turn-on / 30 ms turn-off
IP Degree of Protection IP20
Dimensions (W x H x D) 18.5 x 87.5 x 83.5 mm
Net Weight 0.075 kg
Ambient Air Temperature (Operation) -30 to 80 degC

Certifications & Standards

  • CE
  • CSA
  • UL
  • IEC 60950-1
  • IEC 61000
  • IEC 62314

Selection Notes

The SSM1A112P7 suits applications where the control signal is already a 200-265 V AC line voltage, avoiding a separate low-voltage supply; choose the SSM1A112BD instead when the control signal is 4-32 V DC, typically from a PLC output.

Technical Details

Short Description
The Schneider Electric SSM1A112P7 is a Harmony Solid State Relays DIN-rail mounted single-phase relay rated 12 A, switching a 24-280 V AC load with ze
Rated Current (Ampere)
12 A
Rated Voltage (VAC)
24-280 V AC
Mounting Type
Symmetrical DIN rail
Protection Type
IP20
Catalog No
SSM1A112P7
Delivery Date (Days)
30 days
Model Number
SSM
Tariff Code
853649
