Schneider Electric SR3XT101BD Zelio Logic SR3 10 I/O Extension Module 24 V DC PLC I/O Module

% $-104.69

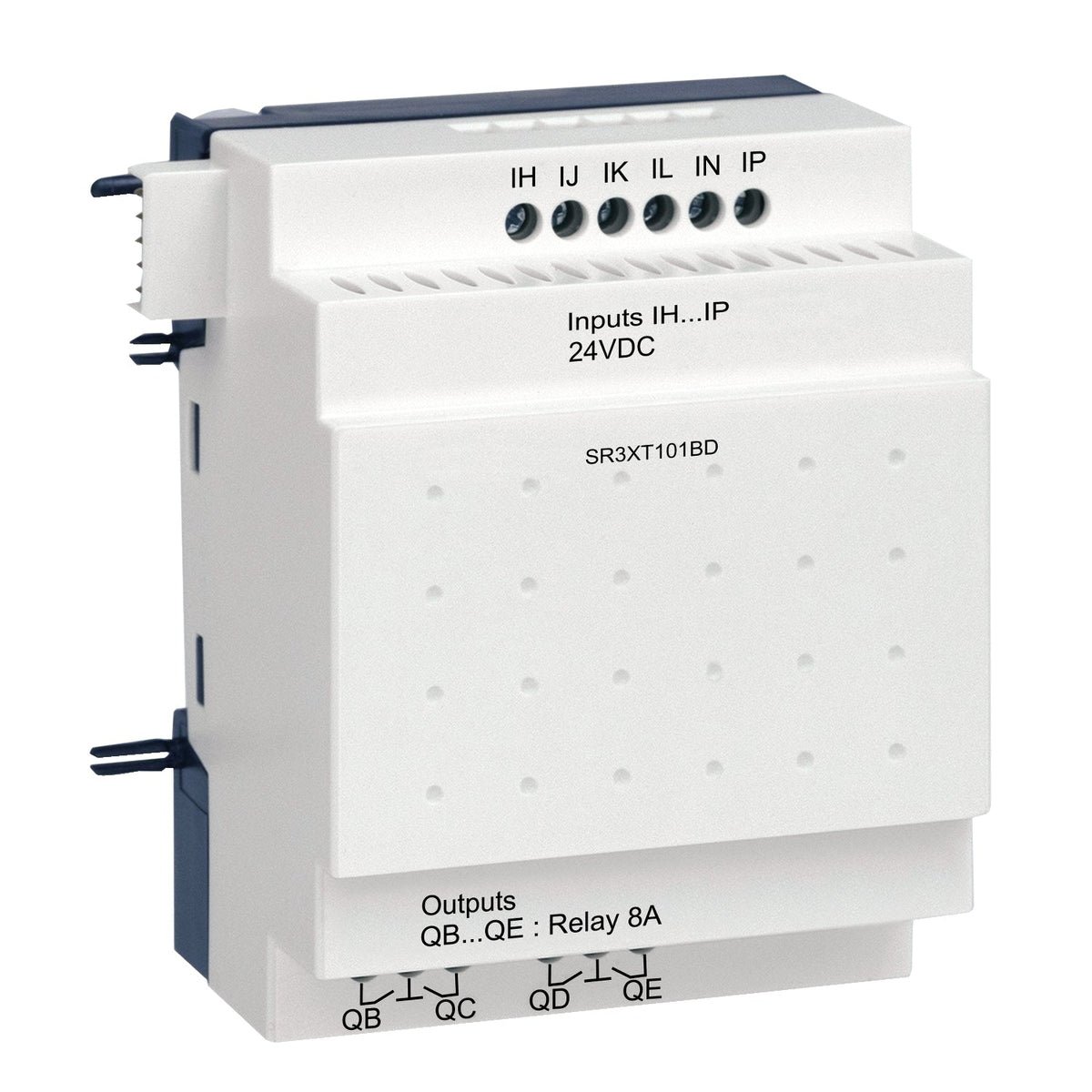

Schneider Electric SR3XT101BD Zelio Logic SR3 discrete I/O extension module - 10 I/O, 24 V DC
Schneider Electric SR3XT101BD Zelio Logic SR3 discrete I/O extension module - 10 I/O, 24 V DC

Schneider Electric SR3XT101BD Zelio Logic SR3 10 I/O Extension Module 24 V DC PLC I/O Module

Brand: Schneider Electric
Reference No: SR3XT101BD
Catalog No: SR3XT101BD
Series: Zelio Logic
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$104.69

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric SR3XT101BD is a discrete I/O extension module for the Zelio Logic SR3 range, adding 10 I/O (6 discrete inputs, 4 relay outputs) at 24 V DC to a base smart relay. It mounts on the same DIN rail as the base unit to expand the I/O count of larger automation systems.

Technical Specifications

Reference SR3XT101BD
Brand Schneider Electric
Range Zelio Logic
GTIN 3389110550085
Product Type Discrete I/O extension module
Rated Supply Voltage (Us) 24 V DC
Supply Voltage Limits 19.2–30 V
Discrete Inputs 6, 24 V DC
Outputs 4 relay, NO contacts
Output Thermal Current 8 A for all 4 outputs
Rated Impulse Withstand Voltage (Uimp) 4 kV (EN/IEC 60947-1, EN/IEC 60664-1)
Response Time (Relay Output) 10 ms / 5 ms
Connections – Terminals Screw terminals, 0.2–2.5 mm²
Overvoltage Category III (IEC 60664-1)
IP Degree of Protection IP20 (terminal block) / IP40 (front panel)
Ambient Air Temperature, Operation -20…40 °C (non-ventilated) / -20…55 °C
Ambient Air Temperature, Storage -40…70 °C
Net Weight 0.2 kg

Certifications & Standards

  • UL
  • CSA
  • GOST
  • GL
  • C-tick
  • IEC 61000-4-2
  • IEC 61000-4-3
  • IEC 61000-4-4
  • IEC 61000-4-5
  • IEC 61000-4-6
  • IEC 61000-4-11
  • IEC 61000-4-12
  • IEC 60068-2-6
  • IEC 60068-2-27

Selection Notes

The SR3XT101BD adds 6 discrete inputs and 4 relay outputs (8 A) to a 24 V DC Zelio Logic base unit when the application outgrows the base's own I/O count. Use the AC-supplied SR3XT101FU instead on a panel without a 24 V DC rail, or the smaller SR3XT61BD when only 4 inputs and 2 outputs of extra capacity are needed.

Technical Details

Short Description
Schneider Electric SR3XT101BD Zelio Logic SR3 I/O extension module, 10 I/O, 24 V DC, 4 relay outputs.
Mounting Type
DIN rail
Protection Type
IP20 (terminal block) / IP40 (front panel)
Catalog No
SR3XT101BD
Delivery Date (Days)
30 days
Model Number
Zelio Logic SR3
Tariff Code
853710
