Schneider Electric SR2B201B Zelio Logic SR2 20 I/O 24 V AC with Display 8 Relay Outputs Logic Module

% $-285.41

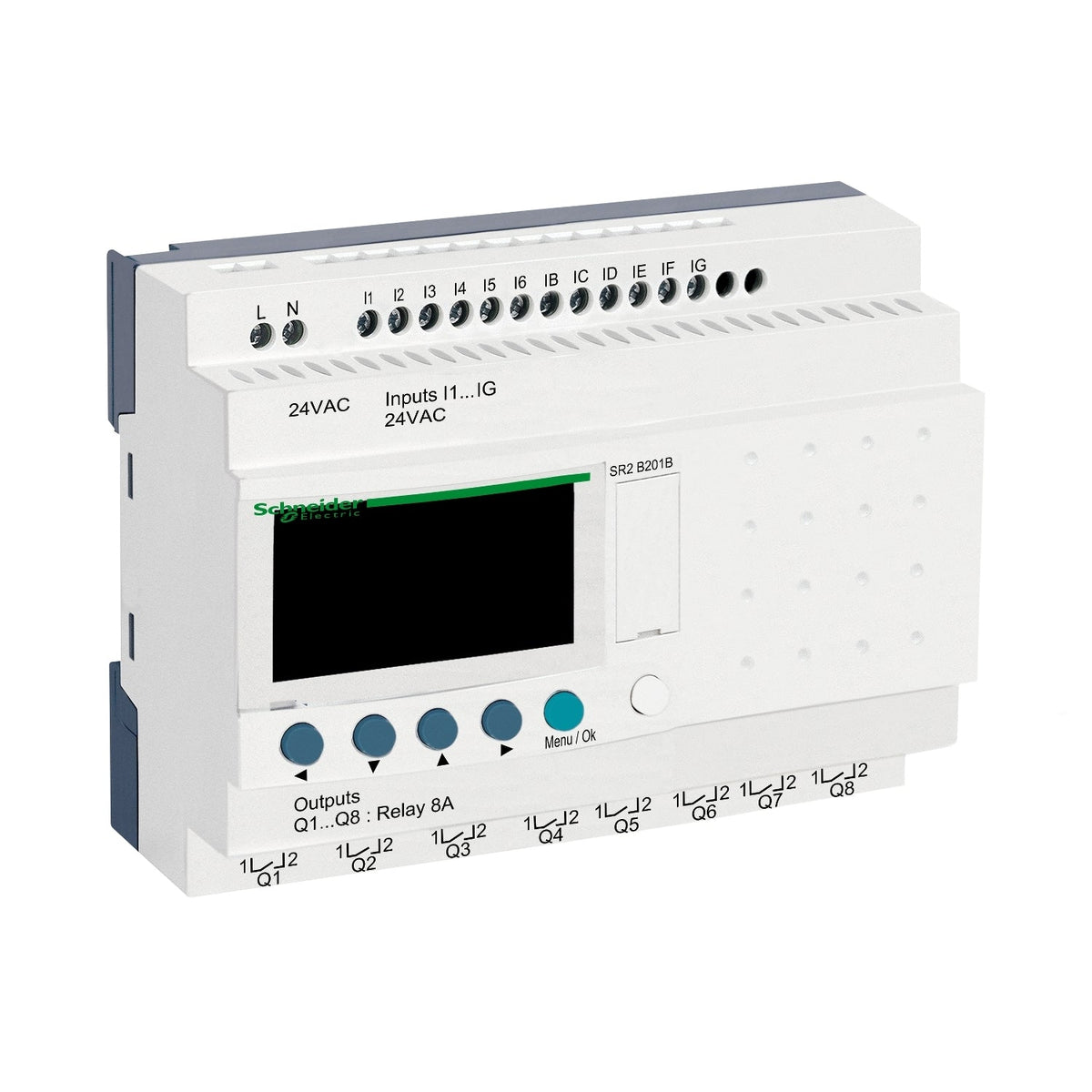

Schneider Electric SR2B201B Zelio Logic SR2 20 I-O Smart Relay
Schneider Electric SR2B201B Zelio Logic SR2 20 I-O Smart Relay

Schneider Electric SR2B201B Zelio Logic SR2 20 I/O 24 V AC with Display 8 Relay Outputs Logic Module

Brand: Schneider Electric
Reference No: SR2B201B
Catalog No: SR2B201B
Series: Zelio Logic
Tariff Code (HS): 853710
Rated Voltage: 24 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$285.41

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric SR2B201B is a Zelio Logic SR2 compact smart relay with 12 discrete inputs and 8 relay outputs rated 8 A each, powered from 24 V AC. Its built-in LCD display and navigation buttons, with a real-time clock, let you program, monitor, and diagnose simple automation tasks directly on the unit.

Technical Specifications

Reference SR2B201B
GTIN 3389110549713
Brand Schneider Electric
Range Zelio Logic
Product Type Compact smart relay
Local Display With
Clock With
Program Capacity 0-240 ladder / 0-500 FBD
Supply Voltage 24 V AC
Supply Voltage Limits 20.4-28.8 V
Maximum Supply Current 233 mA (without extension)
Power consumption 6 VA (without extension)
Isolation Voltage 1780 V
Discrete Input Number 12
Discrete Input Voltage 24 V AC
Discrete Input Current 4.4 mA
Number of Outputs 8 relay
Output Voltage Limits 24-250 V AC / 5-30 V DC
Output Thermal Current 8 A for all 8 outputs
Cycle Time 6-90 ms
Backup Time 10 years at 25°C
IP Degree of Protection IP20 (terminal block) / IP40 (front panel)
Ambient Operating Temperature -20 to 55°C
Rated Impulse Withstand Voltage [Uimp] 4 kV (EN/IEC 60947-1, EN/IEC 60664-1)
Net Weight 0.38 kg

Certifications & Standards

  • GL
  • UL
  • CSA
  • C-tick
  • GOST
  • IEC 61000-4-4
  • IEC 61000-4-3
  • IEC 60068-2-27 Ea
  • IEC 61000-4-11
  • IEC 61000-4-5
  • IEC 61000-4-12
  • IEC 61000-4-2
  • IEC 60068-2-6 Fc
  • IEC 61000-4-6

Selection Notes

The SR2B201B is the 24 V AC member of the 20-I/O Zelio Logic SR2 compact range, with a built-in real-time clock for time-based control such as scheduled lighting or pump cycling. Where less I/O is needed, the smaller 10- and 12-I/O SR2 variants in the same family save panel space without changing the programming environment.

Technical Details

Short Description
Zelio Logic SR2 compact smart relay, 12 DI, 8 relay DO, 24 V AC supply, with clock, built-in display.
Rated Voltage (VAC)
24 V AC
Protection Type
IP20
Catalog No
SR2B201B
Delivery Date (Days)
30 days
Model Number
Zelio Logic SR2
Tariff Code
853710
