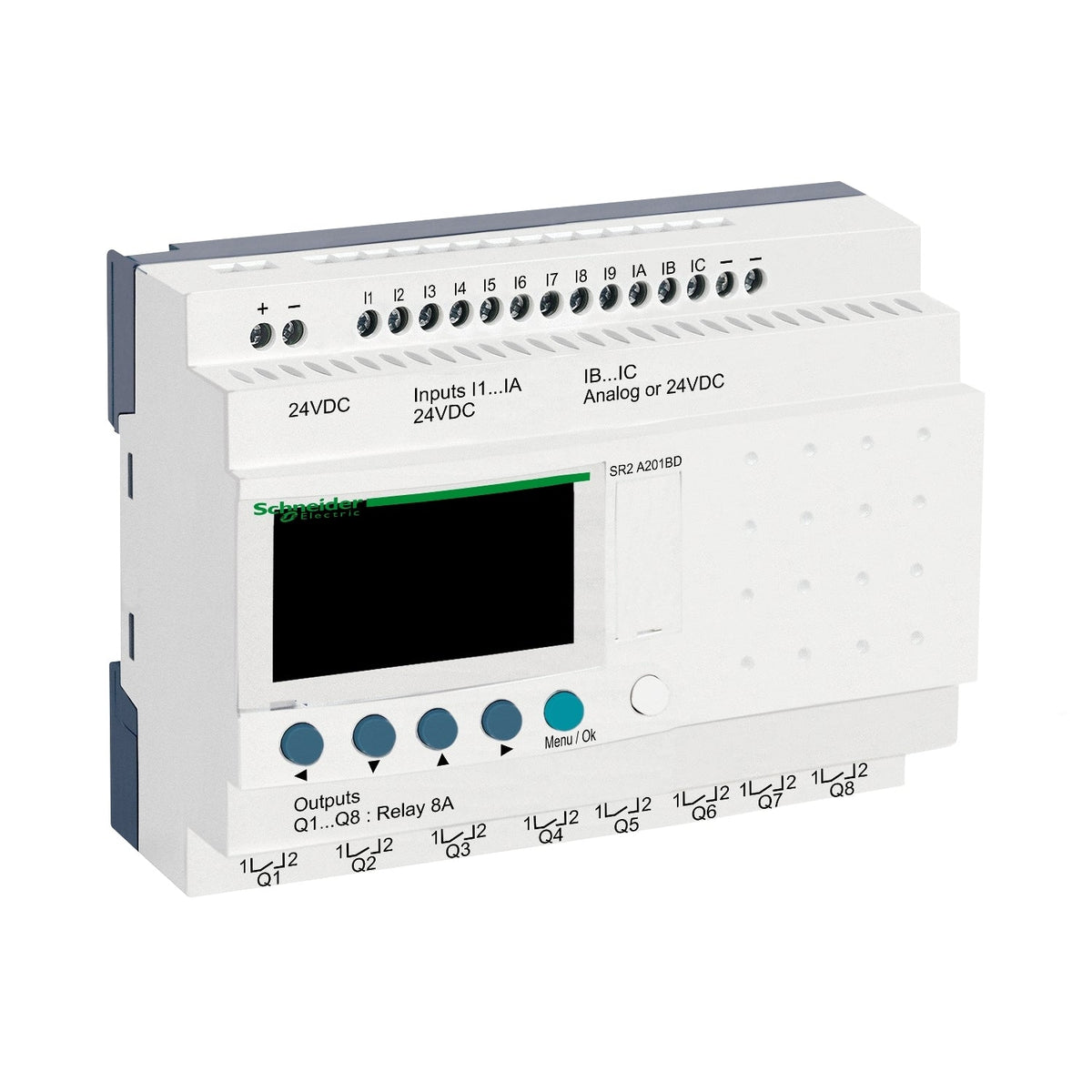

Schneider Electric SR2A201BD Zelio Logic SR2 20 I/O 24 V DC with Display 8 Relay Outputs Logic Module

The Schneider Electric SR2A201BD is a Zelio Logic SR2 compact smart relay with 12 discrete inputs (2 configurable as analogue) and 8 relay outputs rated 8 A each, powered from 24 V DC. Its built-in LCD display and navigation buttons, without a real-time clock, let you program, monitor, and diagnose simple automation tasks directly on the unit.

Technical Specifications

Certifications & Standards

• GOST
• CSA
• GL
• UL
• C-tick
• IEC 61000-4-5
• IEC 61000-4-6
• IEC 60068-2-6 Fc
• IEC 61000-4-12
• IEC 61000-4-11
• IEC 61000-4-3
• IEC 61000-4-2
• IEC 60068-2-27 Ea
• IEC 61000-4-4

Selection Notes

The SR2A201BD is the 24 V DC member of the 20-I/O Zelio Logic SR2 compact range, without a real-time clock, for applications that need only event-based logic and 2 of its inputs configurable as 0-10 V analogue channels for simple threshold or setpoint monitoring. Where less I/O is needed, the smaller 10- and 12-I/O SR2 variants in the same family save panel space without changing the programming environment.
