Schneider Electric RXG22BD Harmony RXG 5A 2CO 24VDC Interface Plug-in Relay

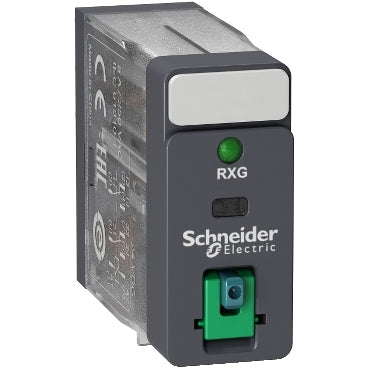

The Schneider Electric RXG22BD is a Harmony RXG series interface plug-in relay with two C/O contacts rated 5 A and a 24 V DC control coil. It has a status LED and a lockable test button for panel troubleshooting, a mechanical flag indicator, a 1250 VA maximum switching capacity, and an IP40 housing rating.

Technical Specifications

Certifications & Standards

• CSA
• CE
• EAC
• UL
• DNV
• CSA C22.2 No 14
• UL 508
• IEC 61810-1

Selection Notes

The 24 V DC coil and 2 C/O, 5 A contact rating suit low-voltage control circuits fed from a DC power supply, rather than the mains-voltage RXG12P7/RXG22P7 AC-coil variants. The status LED and lockable test button carry over from the rest of the RXG series for the same panel-troubleshooting and commissioning workflow. Choose the 230 V AC coil version instead when the control circuit is powered directly from the AC supply. The 6000 V coil-to-contact impulse withstand under reinforced insulation gives isolation margin between the low-voltage DC control side and a mains-voltage load circuit.
