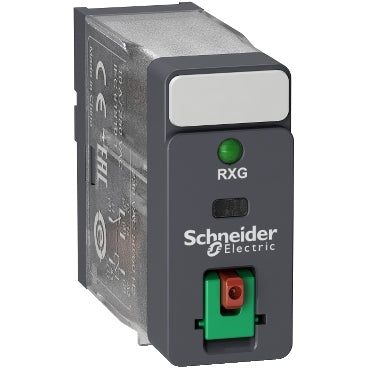

Schneider Electric RXG12B7 Harmony RXG 10A 1CO 24V AC Interface Plug-In Relay

The Schneider Electric RXG12B7 is a Harmony RXG series interface plug-in relay with a single C/O contact rated 10 A and a 24 V AC control coil. A status LED and mechanical flag show the contact state at a glance, and a lockable test button allows manual actuation during panel commissioning without pulling the relay.

Technical Specifications

Certifications & Standards

• EAC
• CSA
• UL
• CE
• DNV
• IEC 61810-1
• CSA C22.2 No 14
• UL 508

Selection Notes

The status LED plus mechanical flag on the RXG12B7 give two independent ways to read contact state: the LED needs the 24 V AC coil energized, while the flag works even with the relay unpowered, which matters when troubleshooting a dead control circuit. Its 10 A/250 V AC rating and 2500 VA switching capacity size it for contactor coils and small motor-starter loads on a 24 V AC control loop. The DNV marine approval, alongside the standard CE/UL/CSA set, qualifies this variant for shipboard or offshore control panels. A removable legend lets the terminal be relabeled after installation without a new socket.
