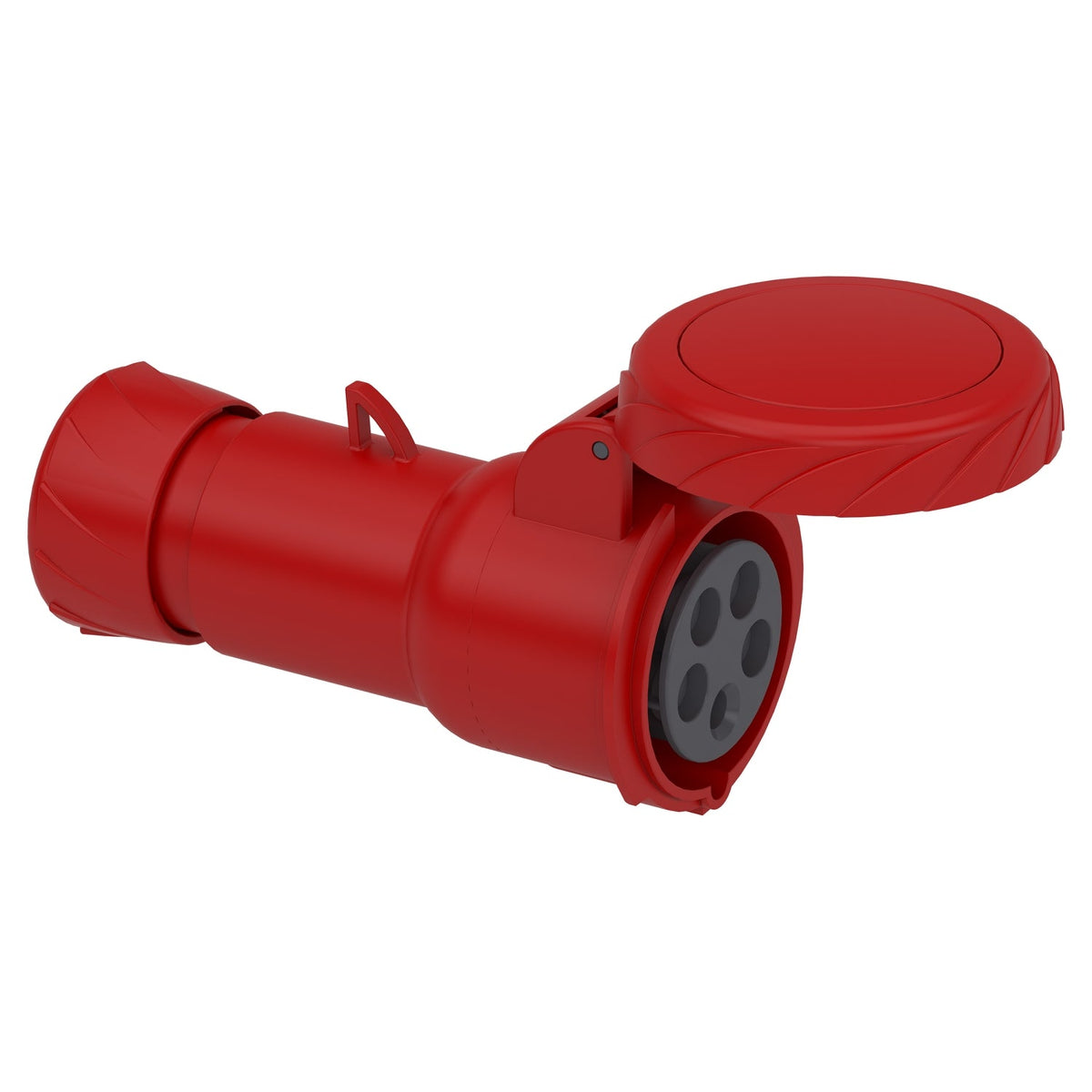

Schneider Electric PKY16M735 PratiKa Wander Socket Straight 16 A 3P+N+E 380-415 V IP67 Industrial Socket

The Schneider Electric PKY16M735 is a PratiKa industrial wander socket rated 16 A, 3P+N+E at 380-415 V AC, protected to IP67 for connecting portable equipment through a trailing cable. The red-marked housing and fast connection terminals match the 16 A wander plug in the same clock-position-6h family, and the body accepts a 1-2.5 mm² cable with an IK08 impact rating.

Technical Specifications

Certifications & Standards

• IEC 60309-1
• IEC 60309-2

Selection Notes

Pair this PKY16M735 wander socket with the matching 16 A, 3P+N+E PratiKa wander plug to extend a supply cable without opening a panel. Pick IP67 for dry indoor runs and the IP44 variant for outdoor or washdown routing; the 16 A rating distinguishes it from the 32 A socket in the same family. The red housing flags the 380-415 V rating so installers do not cross-connect it with a different-voltage line. The 3P+N+E configuration adds a neutral alongside the three phases and earth, so it covers mixed single-phase and three-phase loads fed from the same 380-415 V connection. Fast connection accepts a 1-2.5 mm² conductor on the trailing cable side of the joint.
