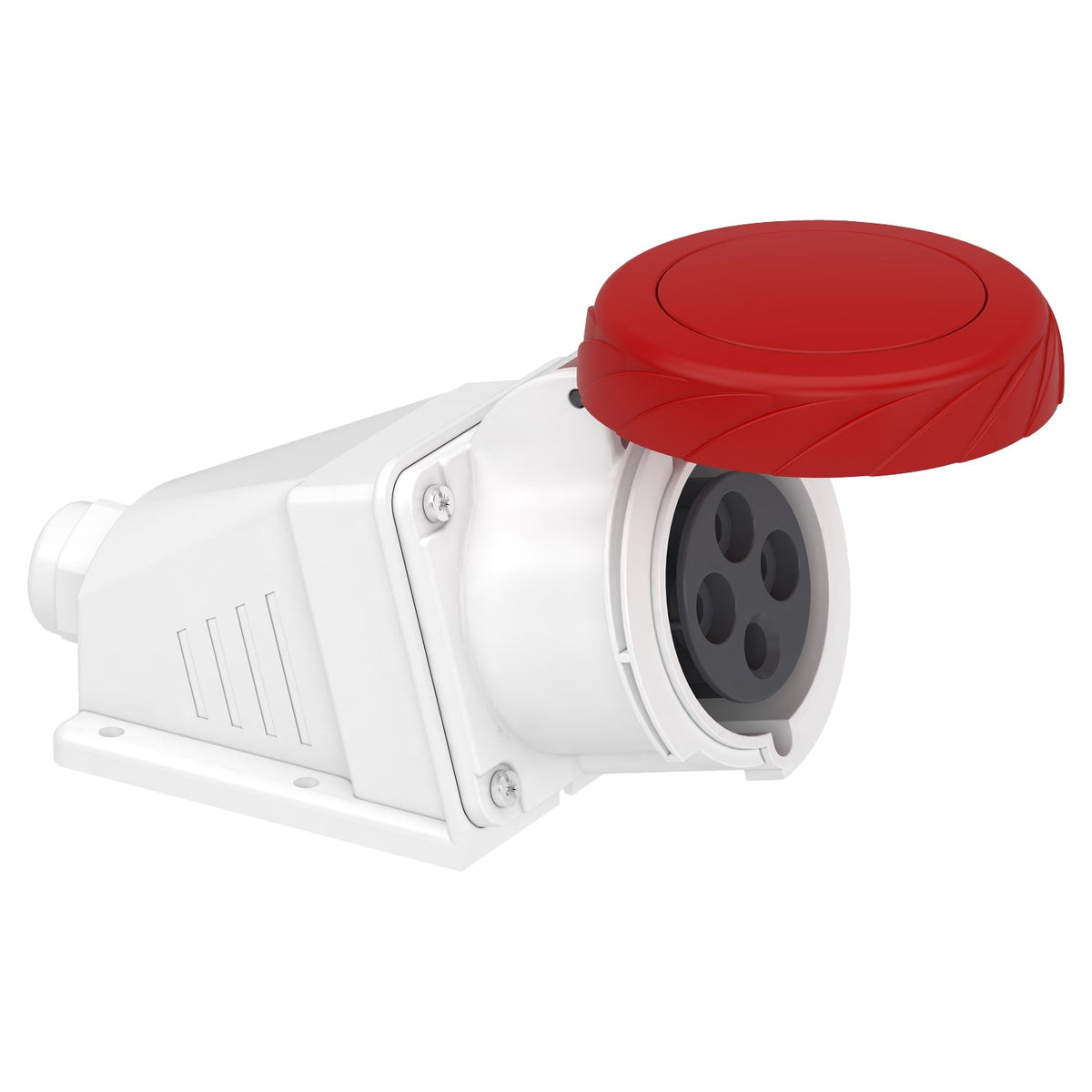

Schneider Electric PKF32W734 PratiKa Wall Mounted Socket 32 A 3P+E 380-415 V IP67 Industrial Socket

The Schneider Electric PKF32W734 is a PratiKa industrial socket rated 32 A, 3P+E at 380-415 V AC, wall-mounted with an angled outlet and protected to IP67. Captive screws terminate the fixed installation cable, and the red-coded body identifies the operating voltage for panel-shop and site electricians. It accepts a 2.5-10 mm² cable and carries an IK08 impact rating alongside the IP67 ingress protection.

Technical Specifications

Certifications & Standards

• IEC 60309-1
• IEC 60309-2

Selection Notes

This PKF32W734 is fixed to the wall, not carried on a cable, so it suits a permanent outlet point rather than a portable connection. The angled outlet shape fits enclosures where the mating socket approaches from the side; use the straight variant in the same 32 A, 3P+E rating where the cable run approaches straight on. IP67 covers washdown and outdoor locations at this current and pole count. The 3P+E configuration carries three phases and earth without a neutral, so it suits balanced three-phase loads such as motors that have no need for a neutral conductor. Captive screws wire the incoming supply, accepting a 2.5-10 mm² conductor on this 32 A variant.
