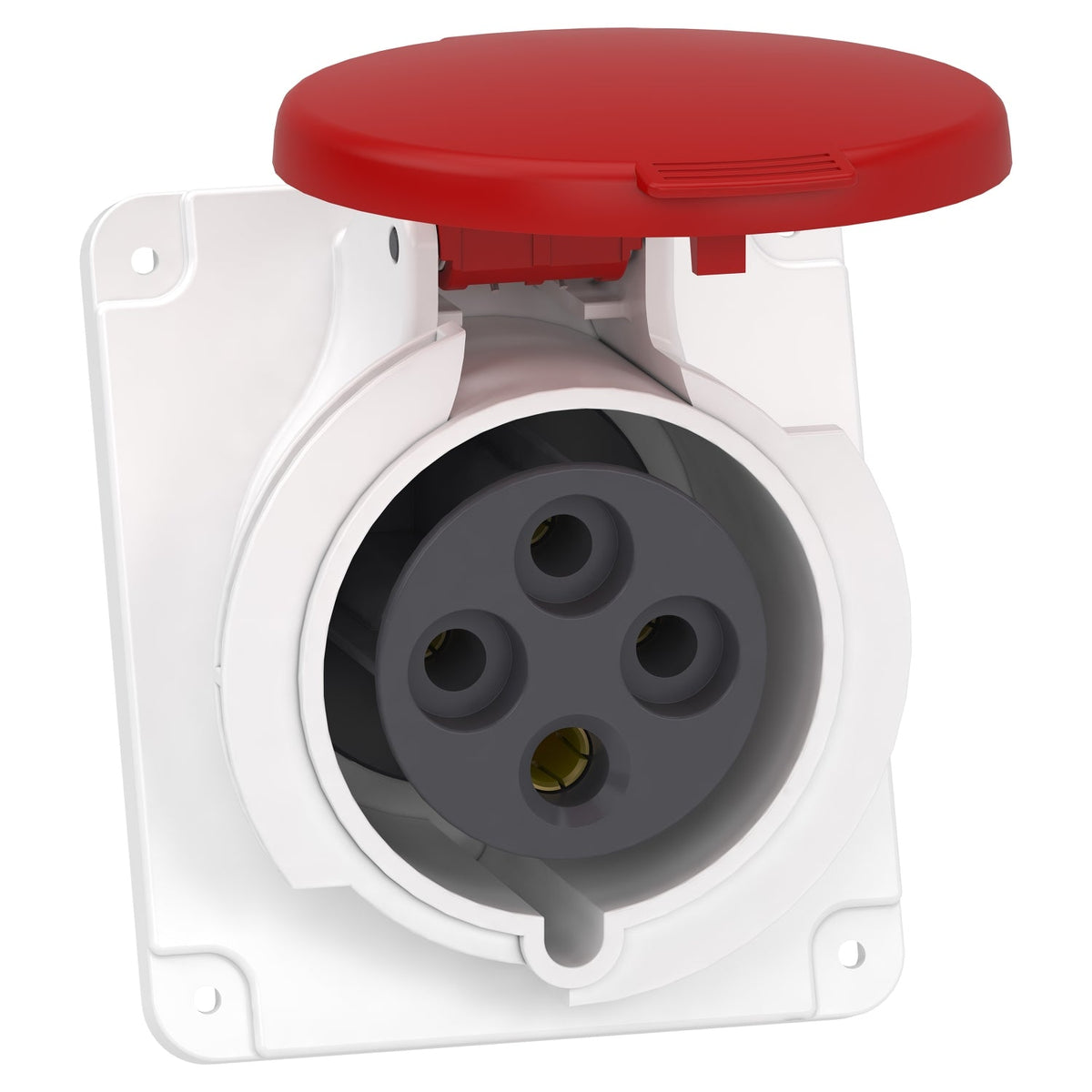

Schneider Electric PKF32F434 Mureva PK Panel-Mounted Angled 32 A 3P+E 380-415 V IP44 Industrial Socket

% $-13.35
Schneider Electric PKF32F434 Mureva PK Panel-Mounted Angled Industrial Socket – 32 A 3P+E IP44
Schneider Electric PKF32F434 Mureva PK Panel-Mounted Angled Industrial Socket – 32 A 3P+E IP44

Schneider Electric PKF32F434 Mureva PK Panel-Mounted Angled 32 A 3P+E 380-415 V IP44 Industrial Socket

Brand: Schneider Electric
Reference No: PKF32F434
Catalog No: PKF32F434
Tariff Code (HS): 853669
Rated Current: 32 A
Rated Voltage: 380-415 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$13.35

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric PKF32F434 is a Mureva PK panel-mounted angled socket rated 32 A, 3P+E, for 380-415 V AC networks. It mounts into an equipment panel with its connector body angled away from the panel face, uses captive screw terminals, and carries an IP44 degree of protection with a 6 h ground-lug clock position. The grey (RAL 7035) housing uses red voltage-identification colour coding and a 850 °C fire-resistance rating.

Technical Specifications

Reference PKF32F434
Brand Schneider Electric
Range Mureva PK
Product or component type Socket
Mounting mode Panel-mounted
Shape Angled
Number of poles 3P+E
Rated current (In) 32 A
Rated operational voltage (Ue) 380-415 V
Rated frequency 50/60 Hz
Ground lug clock position 6 h
Connections Captive screws
Cable cross section 2.5-10 mm²
IP degree of protection IP44 (IEC 60529)
IK degree of protection IK08 (EN 62262)
Fire resistance 850 °C (IEC 60695-2-1)
Ambient operating temperature 35 °C
Housing material Self-extinguishing engineering polymer
Contact material Brass
Colour Grey (RAL 7035)
Voltage identification colour Red
Base dimension 90 x 100 mm
Dimensions (H x W x D) 100 x 90 x 117 mm
Net weight 0.233 kg

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

Pick the PKF32F434 where panel space forces the mating plug to approach at an angle rather than straight into the enclosure face — the angled body keeps the plug and cable clear of adjacent panel hardware. The IP44 rating covers general indoor use; the IP67 angled variant in the same 3P+E, 380-415 V configuration is the choice for outdoor or washdown locations.

Technical Details

Short Description
Mureva PK panel-mounted angled socket, 32 A, 3P+E, 380-415 V, IP44, captive screw terminals.
Rated Current (Ampere)
32 A
Rated Voltage (VAC)
380-415 V
Mounting Type
Panel-mounted
Protection Type
IP44
Catalog No
PKF32F434
Delivery Date (Days)
30 days
Model Number
Mureva PK Panel-Mounted Angled
Tariff Code
853669
