Schneider Electric PKB63T534 Mureva PK Interlocked Socket Panel Mounted 63A 3P+E 380-415V Industrial Socket

% $-295.94

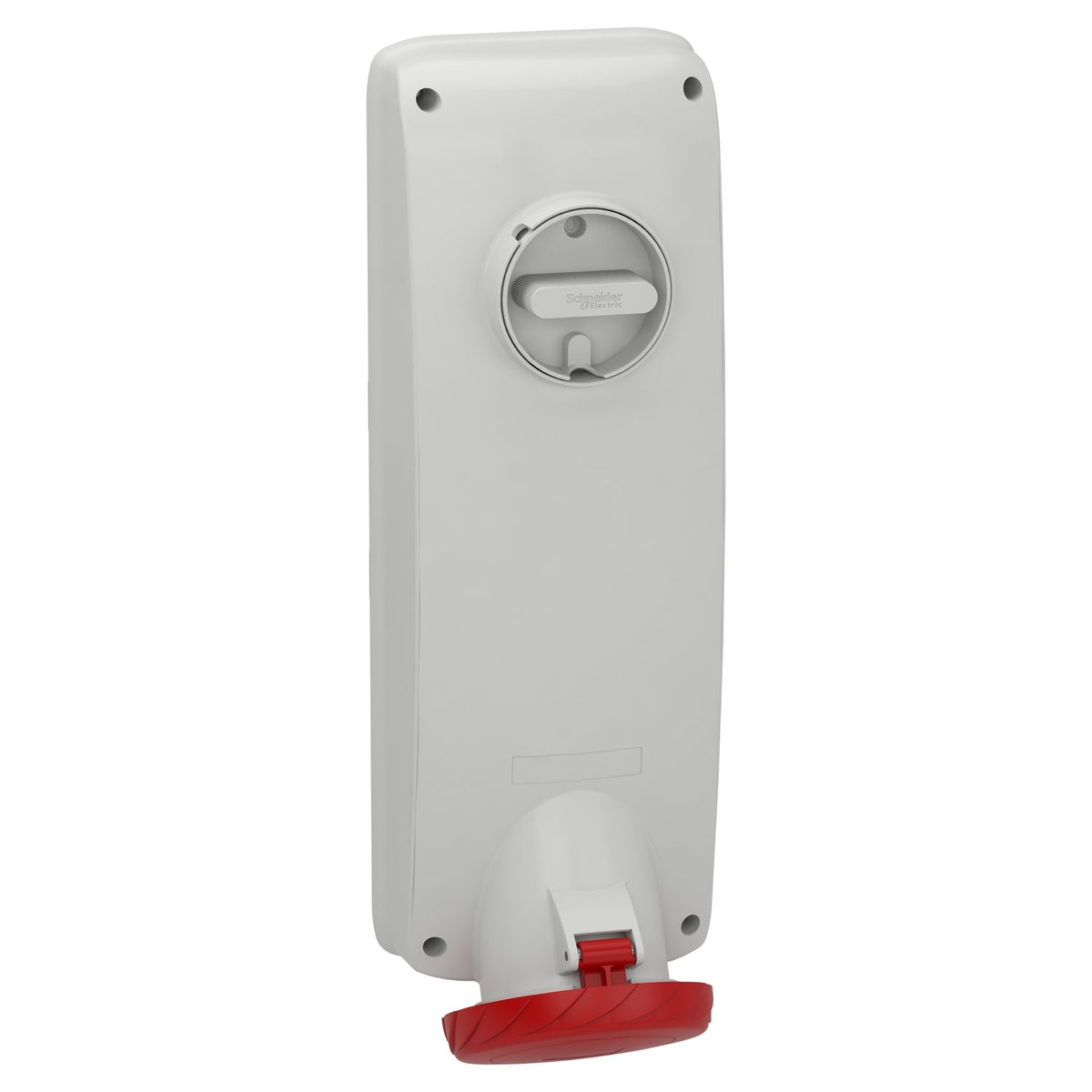

Schneider Electric PKB63T534 Mureva PK interlocked socket panel mounted 63A 3P+E IP65
Schneider Electric PKB63T534 Mureva PK interlocked socket panel mounted 63A 3P+E IP65

Schneider Electric PKB63T534 Mureva PK Interlocked Socket Panel Mounted 63A 3P+E 380-415V Industrial Socket

Brand: Schneider Electric
Reference No: PKB63T534
Catalog No: PKB63T534
Tariff Code (HS): 853669
Rated Current: 63 A
Rated Voltage: 380-415 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$295.94

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric PKB63T534 is a Mureva PK interlocked industrial socket rated 63 A, 3P+E, for a 380-415 V AC network at 50/60 Hz. It is panel-mounted with captive-screw terminal connections and reaches IP65/IK09 protection, built to withstand a 750 degC glow-wire fire-resistance test.

Technical Specifications

Reference PKB63T534
Brand Schneider Electric
Range Mureva
Product Type Interlocked socket
Rated Current (In) 63 A
Rated Voltage (Ue) 380-415 V
Number of Poles 3P + E
Network Frequency 50/60 Hz
Ground Lug Clock Position 6 h
Mounting Panel-mounted
Connection Captive screws
Material Self-extinguishing polymer housing; stainless steel pins and screws
Maximum Cable Cross Section 35 mm²
Colour Grey (RAL 7035), red voltage identification
IP Rating IP65 (IEC 60529)
IK Rating IK09 (EN 62262)
Fire Resistance 750 degC (IEC 60695-2-11)
Operating Temperature -25 to 40 degC
Dimensions (W x H x D) 140 x 430 x 116 mm
Weight 3 kg

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

The PKB63T534 is the panel-mounted counterpart to the wall-mounted PKB63P534, keeping the same 63 A, 3P+E, IP65/IK09 rating and interlocked safety behaviour but with a shallower 116 mm mounting depth suited to being fitted directly into an enclosure wall rather than surface-mounted. Choose it when the socket needs to sit flush in a machine or panel face; choose the PKB63P534 when the socket is mounted on an open wall or support structure.

Technical Details

Short Description
Mureva PK interlocked industrial socket, panel-mounted, 63A, 3P+E, 380-415V, IP65/IK09, screw terminals.
Rated Current (Ampere)
63 A
Rated Voltage (VAC)
380-415 V
Mounting Type
Panel-mounted
Protection Type
IP65
Catalog No
PKB63T534
Delivery Date (Days)
30 days
Model Number
Mureva PK
Tariff Code
853669
