Schneider Electric NTSXTB12010H Modicon Edge I/O NTS screw terminal block 12-point - 5 mm pitch

Schneider Electric NTSXTB12010H NTS Screw Terminal Block 12-Point Without Cover AC Remote I/O Module

Name: Schneider Electric NTSXTB12010H NTS Screw Terminal Block 12-Point Without Cover AC Remote I/O Module
Brand: Schneider Electric
SKU: NTSXTB12010H
Price: 27.18 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: NTSXTB12010H

Catalog No: NTSXTB12010H

Series: Modicon Edge I/O NTS

Tariff Code (HS): 853710

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$27.18

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

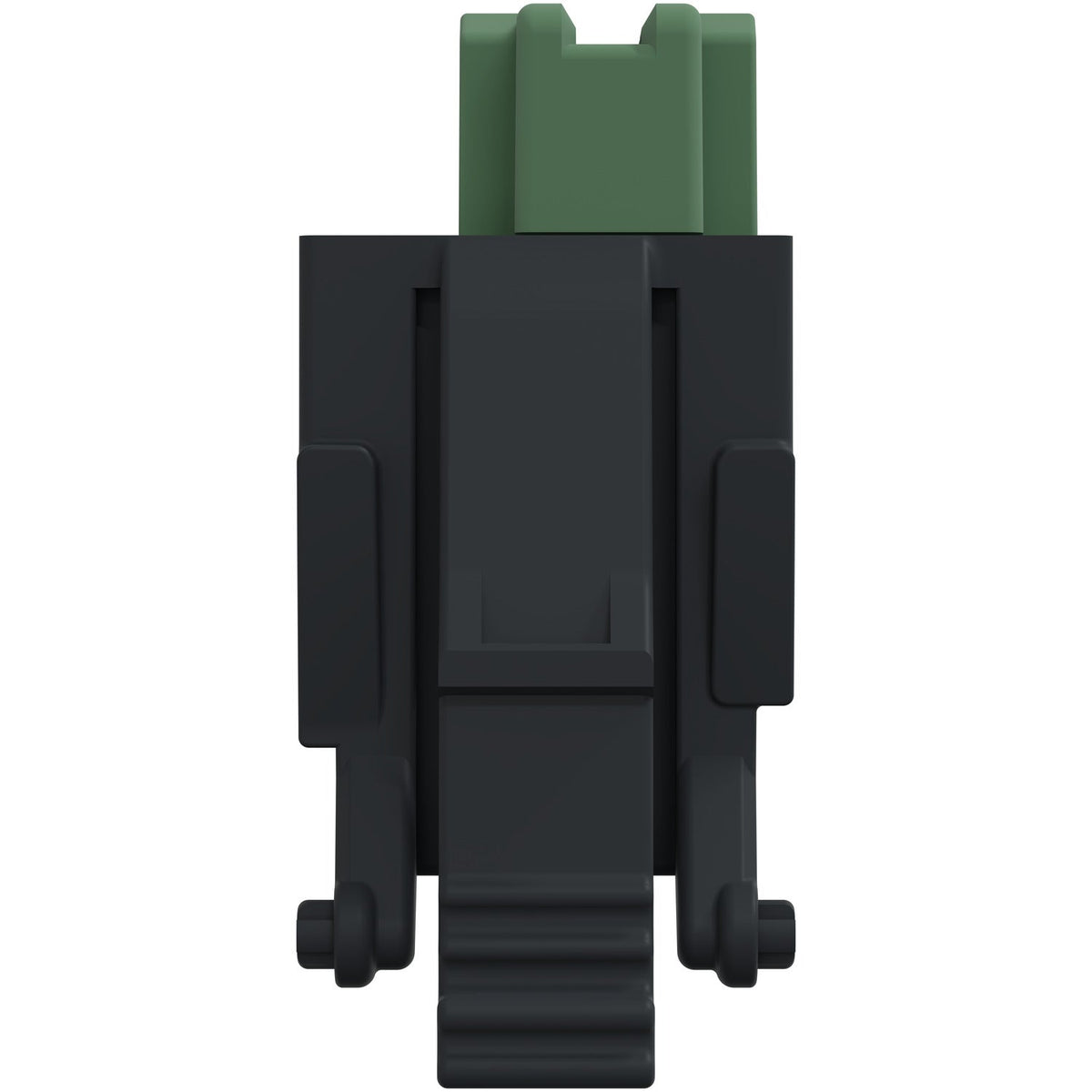

The Schneider Electric NTSXTB12010H is a 12-point screw terminal block from the Modicon Edge I/O NTS range, built for the low-height (100 mm) I/O module housing. It ships without a cover, uses a 5 mm pitch, and handles AC-wired discrete I/O channels. The H suffix marks the hardened variant, rated IP20 from -40 to 70 degrees C for extended-temperature panels.

Technical Specifications

Reference	NTSXTB12010H
Brand	Schneider Electric
GTIN	3606486878415
Range of Product	Modicon Edge I/O NTS
Product or Component Type	Terminal block
Connector Type	Screw connector
Pin Number	12
Pitch	5 mm
Cover	Without cover
Height	3.5 in (90 mm)
Width	0.6 in (14 mm)
Net Weight	0.088 lb(US) (0.040 kg)
Product Compatibility	NTS low height I/O module (discrete I/O modules)
IP Degree of Protection	IP20
Ambient Air Temperature for Operation	-40 to 70 C

Certifications & Standards

CE
UKCA
cULus
RCM
EN/IEC 61131-2

Selection Notes

Choose the low-height variant to match the NTS I/O module body (100 mm); a low-height terminal block will not seat correctly on a high-height module and vice versa. The uncovered version leaves the connection points exposed for faster field wiring where touch-safety is handled elsewhere in the enclosure. Screw connectors on this block are removable from the module front face, so a wiring fault or module swap does not require re-terminating the field cabling.

Technical Details

Short Description

Modicon Edge I/O NTS screw terminal block, 12 points, 5 mm pitch, low module, IP20.

Mounting Type

Front-face plug-in on NTS low-height I/O module

Protection Type

IP20

Catalog No

NTSXTB12010H

Delivery Date (Days)

30 days

Model Number

NTS

Tariff Code

853710
