Schneider Electric NTSXTB12000H Modicon Edge I/O NTS screw terminal block - 12 point without cover

Schneider Electric NTSXTB12000H Modicon Edge I/O NTS 12Pt Terminal Block No Cover Hardened Remote I/O Module

Name: Schneider Electric NTSXTB12000H Modicon Edge I/O NTS 12Pt Terminal Block No Cover Hardened Remote I/O Module
Brand: Schneider Electric
SKU: NTSXTB12000H
Price: 14.82 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: NTSXTB12000H

Catalog No: NTSXTB12000H

Series: Modicon Edge I/O NTS

Tariff Code (HS): 853710

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$14.82

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

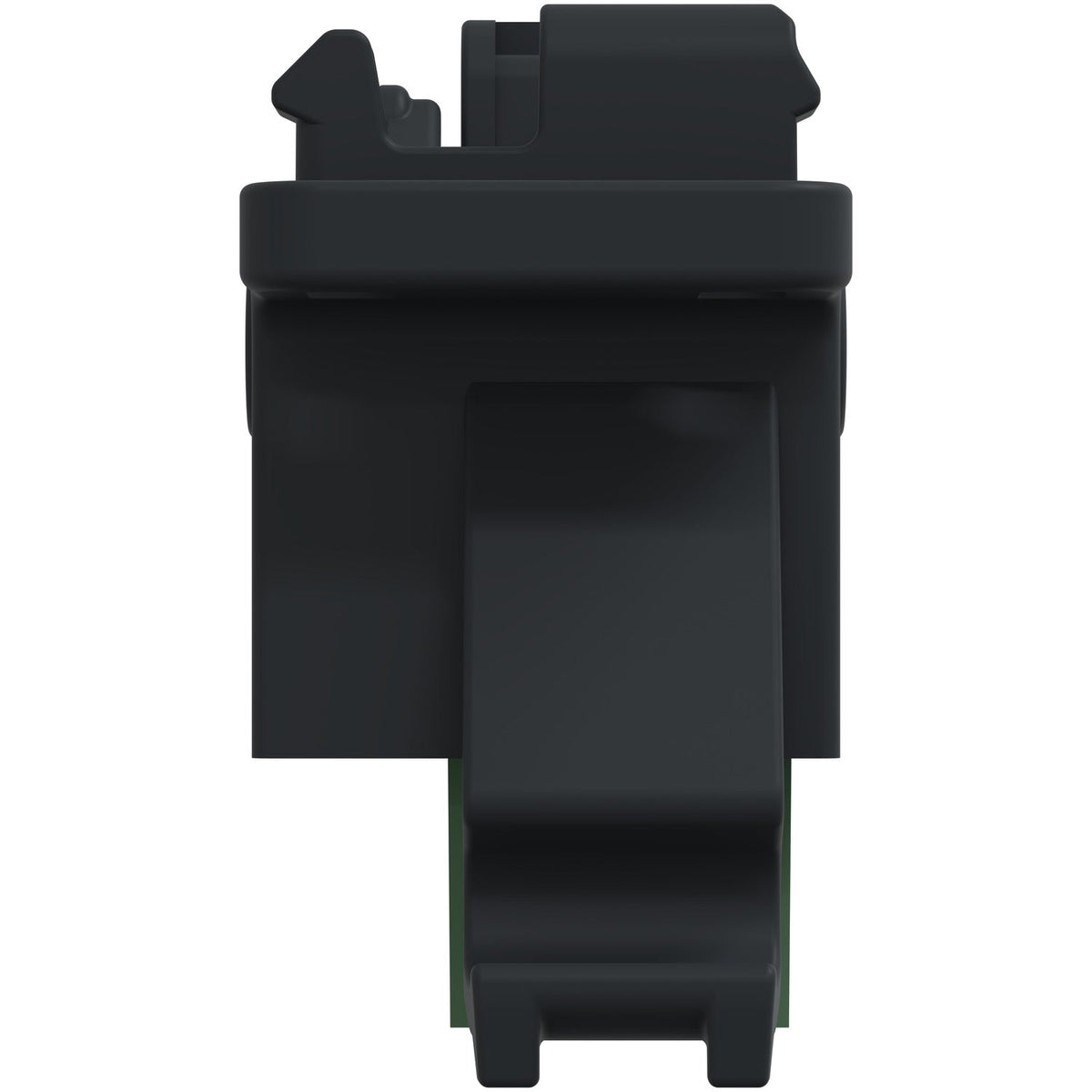

The Schneider Electric NTSXTB12000H is a Modicon Edge I/O NTS screw terminal block without a plastic cover, sized for the 100 mm-high low-height I/O modules. It has 12 connection points on a 5 mm pitch and mounts removably to the module's front face, allowing quick disconnection for maintenance without unwiring each conductor. It is rated for the severe-environment -40...70 degC range with conformal-coated contacts.

Technical Specifications

Reference	NTSXTB12000H
Brand	Schneider Electric
Range	Modicon Edge I/O NTS
GTIN	3606486878392
Product Type	Terminal block
Accessory Destination	I/O module
Product Compatibility	NTS low-height I/O module
Connector Type	Screw connector
Pin Number	12
Cover	Without cover
Color	Gray
Dimensions, H x W	90 x 14 mm
Net Weight	0.040 kg
IP Degree of Protection	IP20
Ambient Temperature, Operation	-40...70 degC
Ambient Temperature, Storage	-40...85 degC

Certifications & Standards

CE
UKCA
cULus
RCM

Selection Notes

The NTSXTB12000H's open, uncovered design exposes the 12 screw terminals for faster wiring during panel build, a reasonable trade-off where the enclosure already limits accidental finger contact. Where IP-touch protection on the wiring side matters, the covered NTSXTB12001H is the correct choice instead; both fit the same 100 mm-high low-height discrete and analog I/O modules.

Technical Details

Short Description

Modicon Edge I/O NTS 12-point screw terminal block without cover, for low-height I/O modules, hardened.

Catalog No

NTSXTB12000H

Delivery Date (Days)

30 days

Model Number

NTS Terminal Block

Tariff Code

853710
