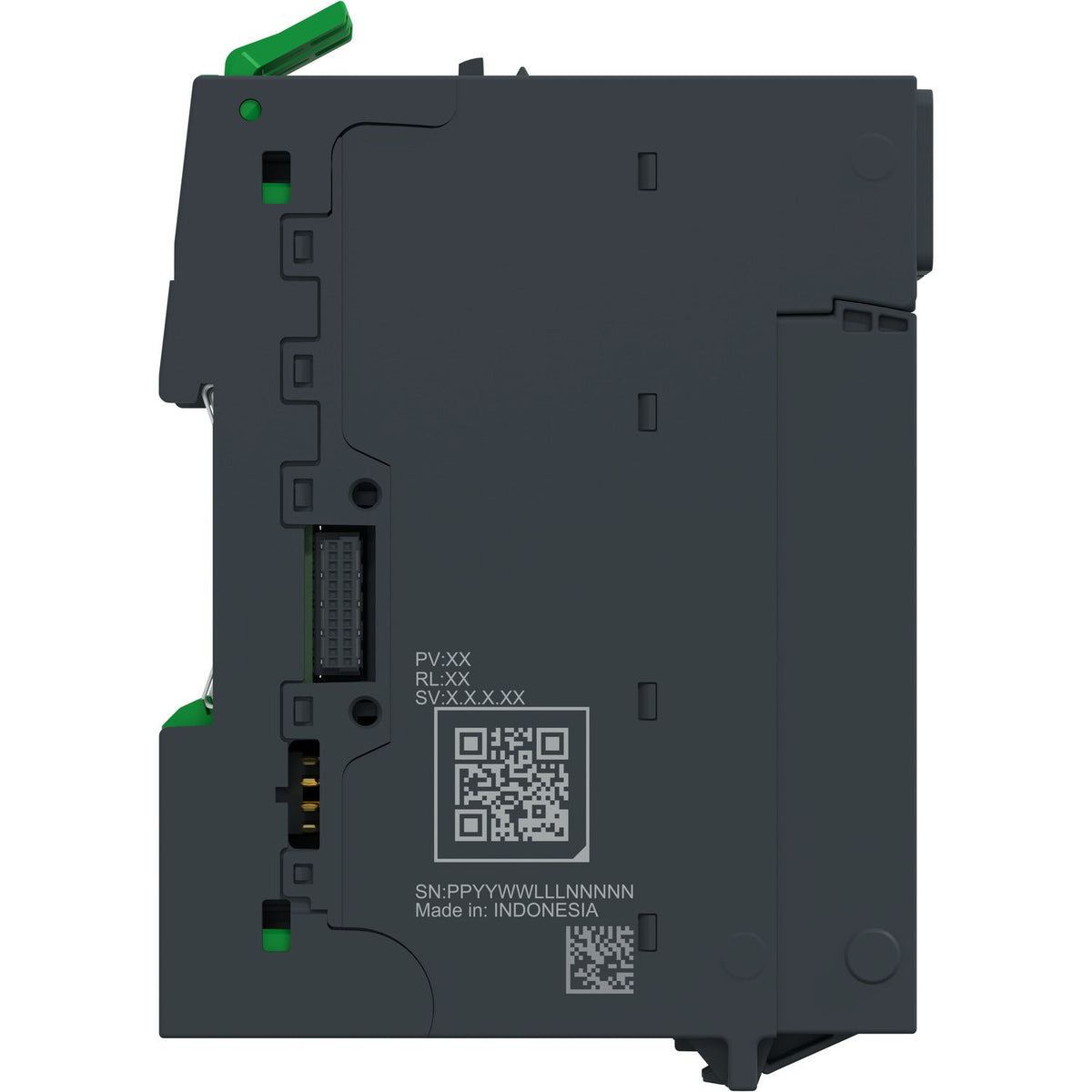

Schneider Electric NTSDRA0615K Modicon Edge I/O NTS Relay Output 6Ch NO 2A Remote I/O Module

The Schneider Electric NTSDRA0615K is a Modicon Edge I/O NTS relay output module kit with 6 isolated form-A (NO) relay channels rated 2 A, pre-assembled on its NTSXBA0100H base. Each channel switches 5...125 V DC or 24...250 V AC loads through a 2-wire connection, covering a -20...60 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• RCM
• EN/IEC 61131-2

Selection Notes

The form-A (NO-only) relay contacts on the NTSDRA0615K suit simple on/off actuation such as pilot lamps or contactor coils where only a normally-open path is needed; for applications requiring both NO and NC feedback on the same point, the NTSDRC0215K/0415K form-C modules are the correct choice instead. The dual AC/DC voltage window (5...125 V DC, 24...250 V AC) lets the same relay switch either a 24 V DC control circuit or a 230 V AC load without a separate module. The 1780 V AC inter-channel isolation allows each of the 6 channels to reference a different circuit safely.
