Schneider Electric METSECTV45025 PowerLogic LVCT solid core current transformer 250 A

Schneider Electric METSECTV45025 PowerLogic LVCT Solid Core CT 250 A 0.333 V RJ45 Current Transformer

Name: Schneider Electric METSECTV45025 PowerLogic LVCT Solid Core CT 250 A 0.333 V RJ45 Current Transformer
Brand: Schneider Electric
SKU: METSECTV45025
Price: 84.77 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: METSECTV45025

Catalog No: METSECTV45025

Tariff Code (HS): 850431

Rated Current: 250 A

Communication: RJ45

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$84.77

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

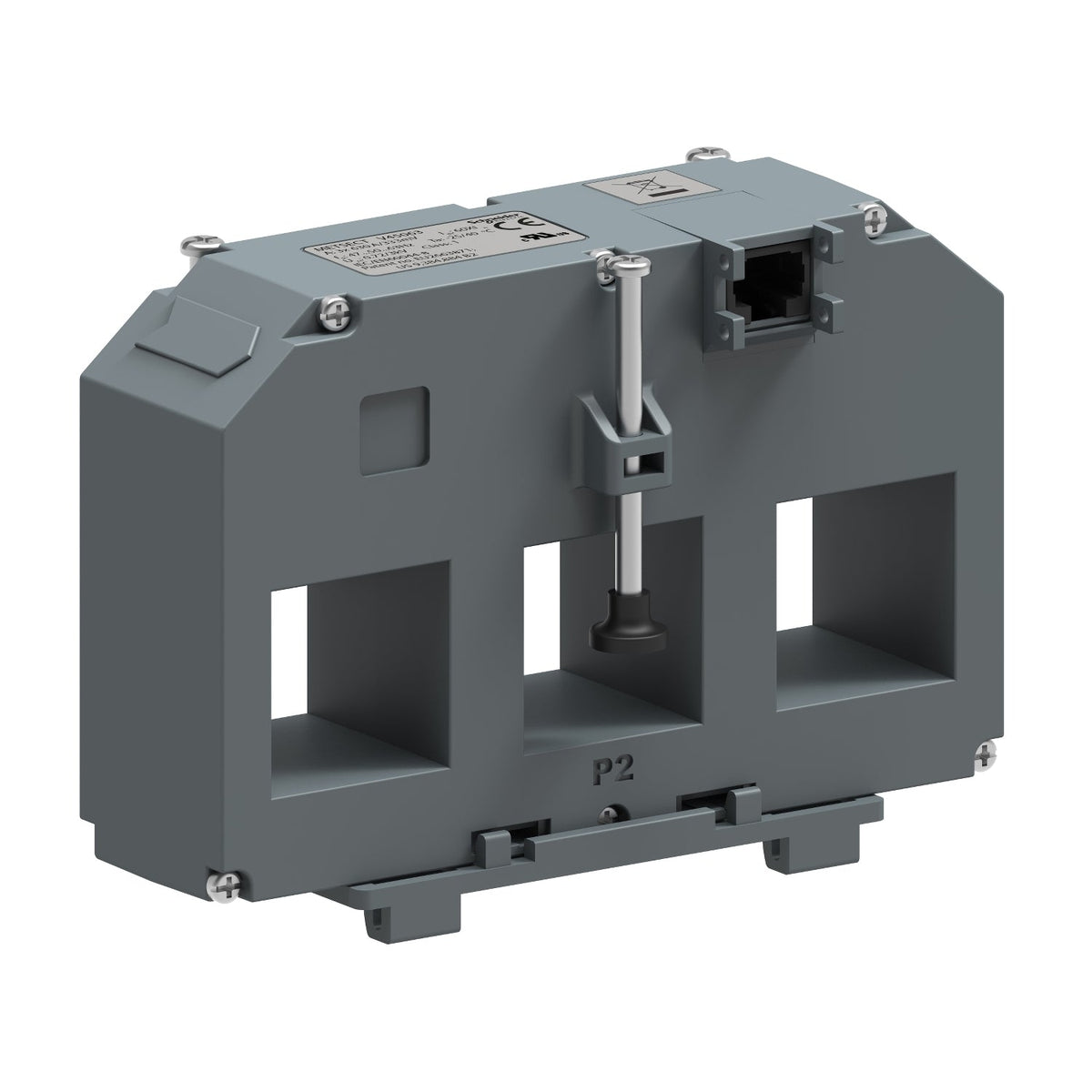

The Schneider Electric METSECTV45025 is a PowerLogic LVCT, a low-voltage triple solid-core current transformer rated 250 A with a 0.333 V output. It connects to compatible PM2210R, PM2220R, PM5310R, and PM5320R energy meters with a single RJ45 cable, built around a 45 mm centre-to-centre bus bar window for wider conductor spacing.

Technical Specifications

Reference	METSECTV45025
Brand	Schneider Electric
Range	PowerLogic
Product type	Current transformer, measurement accessory
Current transformer type	Triple solid core
Rated current (In)	250 A
Output voltage	0.333 V
Measurement accuracy	+/- 0.5 %
Network frequency	50 Hz / 60 Hz
Distance between centres	45 mm
Bus bar opening	31 x 31 mm
Connection	RJ45
Compatible meters	PM2210R, PM2220R, PM5310R, PM5320R
Dimensions (W x H x D)	140 x 90 x 54 mm
Net weight	680 g

Certifications & Standards

CE
UL
EN 60044-8
EN 61869-2
UL 61010
IEC 61010

Selection Notes

The METSECTV45025 matches the METSECTV35025's 250 A rating but opens to a 31 x 31 mm bus bar in a 45 mm centre-to-centre body, so choose it over the 35 mm-centre unit whenever the installed bar spacing or bar depth will not clamp into the narrower window. The larger 140 x 90 mm footprint and 680 g weight are the trade-off for the wider bus bar clearance.

Technical Details

Short Description

PowerLogic LVCT 3-in-1 solid-core CT, 250 A, 0.333 V output, 45 mm centres, RJ45 to PM2200R/PM5300R meters.

Rated Current (Ampere)

250 A

Mounting Type

Busbar or cable, RJ45 link to meter

Catalog No

METSECTV45025

Delivery Date (Days)

30 days

Model Number

LVCT

Tariff Code

850431
