Schneider Electric METSECTV35010 PowerLogic LVCT Solid Core CT 100 A 0.333 V RJ45 Current Transformer

% $-80.63

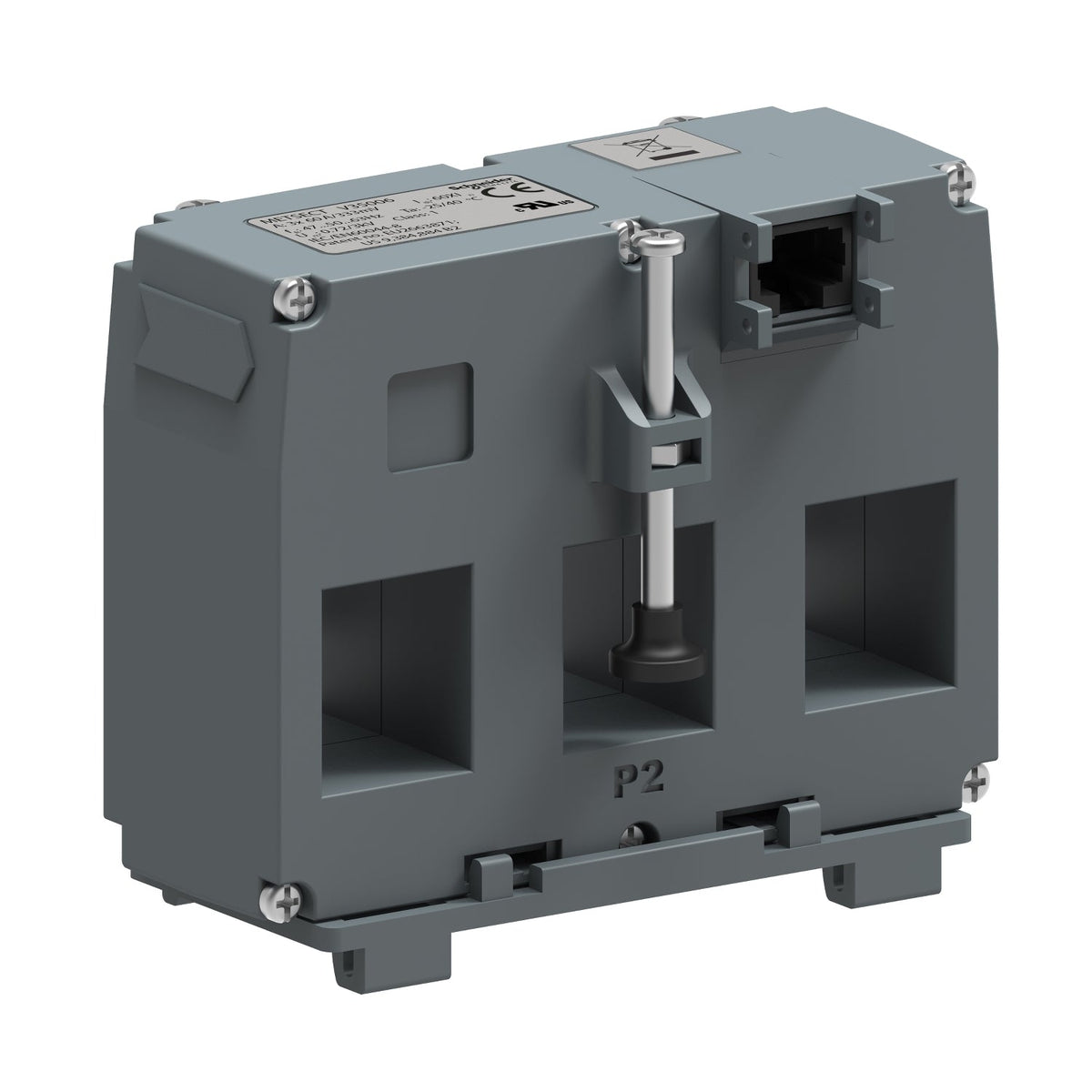

Schneider Electric METSECTV35010 PowerLogic LVCT solid core current transformer 100 A
Schneider Electric METSECTV35010 PowerLogic LVCT solid core current transformer 100 A

Schneider Electric METSECTV35010 PowerLogic LVCT Solid Core CT 100 A 0.333 V RJ45 Current Transformer

Brand: Schneider Electric
Reference No: METSECTV35010
Catalog No: METSECTV35010
Tariff Code (HS): 850431
Rated Current: 100 A
Communication: RJ45
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$80.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECTV35010 is a PowerLogic LVCT, a low-voltage triple solid-core current transformer rated 100 A with a 0.333 V output. It connects to compatible PM2210R, PM2220R, PM5310R, and PM5320R energy meters with a single RJ45 cable, replacing three separate CTs on a 35 mm centre-to-centre busbar or cable set.

Technical Specifications

Reference METSECTV35010
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, measurement accessory
Current transformer type Triple solid core
Rated current (In) 100 A
Output voltage 0.333 V
Measurement accuracy +/- 0.5 %
Network frequency 50 Hz / 60 Hz
Distance between centres 35 mm
Bus bar opening 25 x 21 mm
Connection RJ45
Compatible meters PM2210R, PM2220R, PM5310R, PM5320R
Dimensions (W x H x D) 105 x 80 x 54 mm
Net weight 550 g

Certifications & Standards

  • CE
  • UL
  • EN 60044-8
  • EN 61869-2
  • UL 61010
  • IEC 61010

Selection Notes

The METSECTV35010 covers 100 A feeders in the same 35 mm-centre LVCT body as the 60 A unit, so the decision between the two is purely about the metered current, not fit. Panel builders standardising on the 35 mm centre spacing can move between the 60 A, 100 A, 125 A, 160 A, and 250 A versions in this block without changing the meter wiring or RJ45 cable run.

Technical Details

Short Description
PowerLogic LVCT 3-in-1 solid-core CT, 100 A, 0.333 V output, RJ45 to PM2200R/PM5300R meters.
Rated Current (Ampere)
100 A
Mounting Type
Busbar or cable, RJ45 link to meter
Catalog No
METSECTV35010
Delivery Date (Days)
30 days
Model Number
LVCT
Tariff Code
850431
