Schneider Electric METSECT5VV500 PowerLogic CT VV Type 5000/5 A 55x165 mm Busbar Current Transformer

% $-576.43

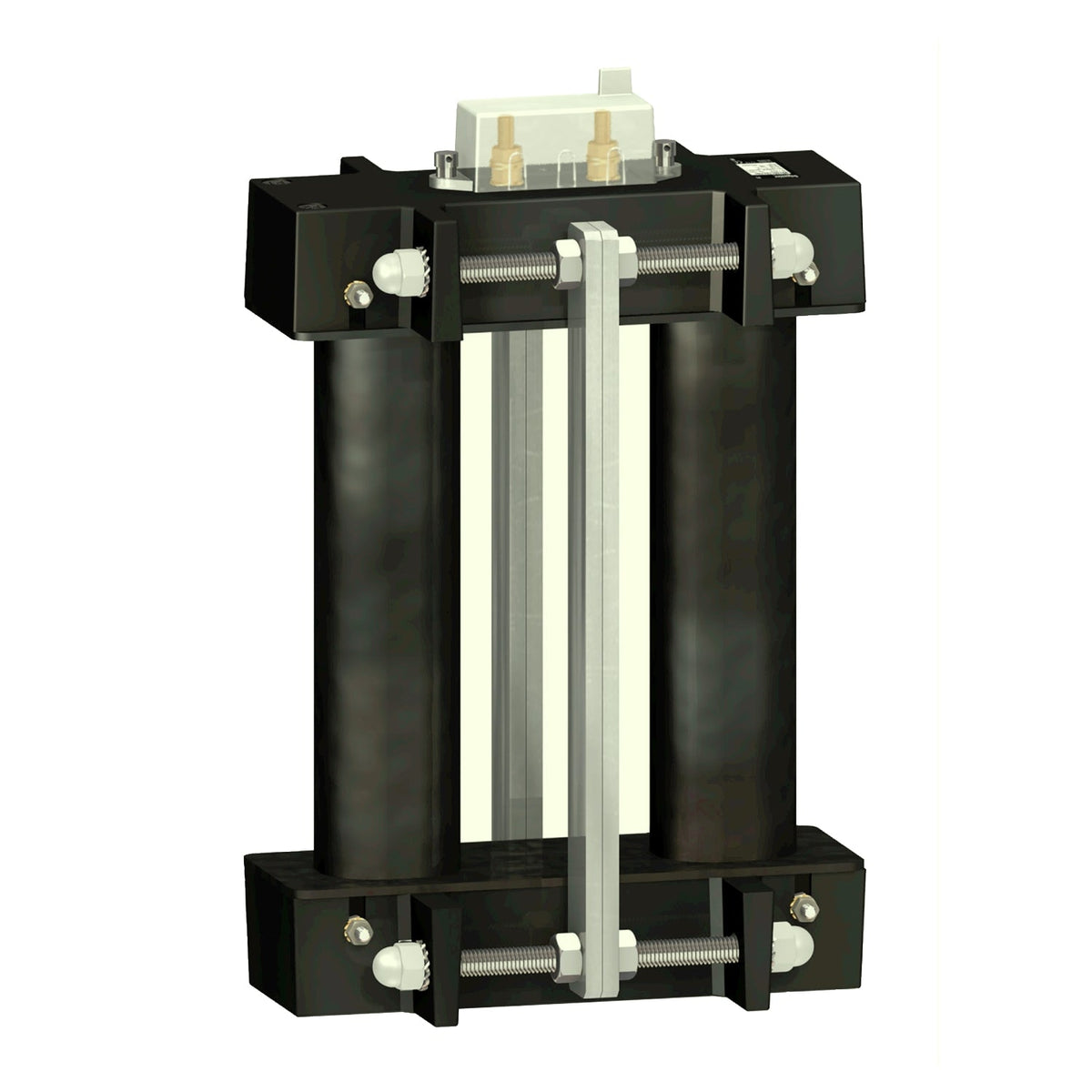

Schneider Electric METSECT5VV500 PowerLogic CT VV type 5000/5 A busbar current transformer
Schneider Electric METSECT5VV500 PowerLogic CT VV type 5000/5 A busbar current transformer

Schneider Electric METSECT5VV500 PowerLogic CT VV Type 5000/5 A 55x165 mm Busbar Current Transformer

Brand: Schneider Electric
Reference No: METSECT5VV500
Catalog No: METSECT5VV500
Tariff Code (HS): 850431
Rated Current: 5000 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$576.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECT5VV500 is a PowerLogic VV-type current transformer for main switchboard metering, rated 5000/5 A for busbar mounting only. It fits a single 165 x 55 mm bus bar opening and delivers Class 0.5 accuracy at a 60 VA burden, built for the high-current feeders a cable-type CT cannot cover.

Technical Specifications

Reference METSECT5VV500
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, tropicalised for busbar
Current transformer ratio 5000/5 A
Accuracy class Class 0.5 at 60 VA
Rated thermal current (Ith) 60 kA
Dynamic withstand current 2.5 x Ith
Maximum safety factor 10
Rated operational voltage (Ue) < 720 V AC 50/60 Hz
Electrical insulation class Class B
Rated impulse withstand voltage (Uimp) 3 kV
Bus bar opening 165 x 55 mm, single output
Mounting mode Insulated locking screw
Mounting support Busbar
Dimensions (W x H x D) 175 x 242 x 110 mm
Sealing With
IP degree of protection IP20
Ambient operating temperature -25...50 C
Net weight 3.1 kg

Certifications & Standards

  • CE
  • EAC
  • IEC 61869-2
  • VDE 0414

Selection Notes

The METSECT5VV500 is built for 5000 A busbar runs where no cable CT applies, with a single 165 x 55 mm window sized for heavy copper or aluminum bars. Its 60 kA thermal rating and maximum safety factor of 10 reflect the fault duty expected on a main incomer rather than a sub-feeder. Pick the 6000 A VV600 instead only once the feeder's rated current exceeds this unit's 5000 A primary.

Technical Details

Short Description
PowerLogic VV-type busbar current transformer, 5000/5 A ratio, Class 0.5 at 60 VA, 55 x 165 mm opening.
Rated Current (Ampere)
5000 A
Mounting Type
Busbar
Protection Type
IP20
Catalog No
METSECT5VV500
Delivery Date (Days)
30 days
Model Number
CT
Tariff Code
850431
