Schneider Electric METSECT5MD080 PowerLogic CT MD Type 800/5 A Class 1 40 mm Current Transformer

% $-40.71

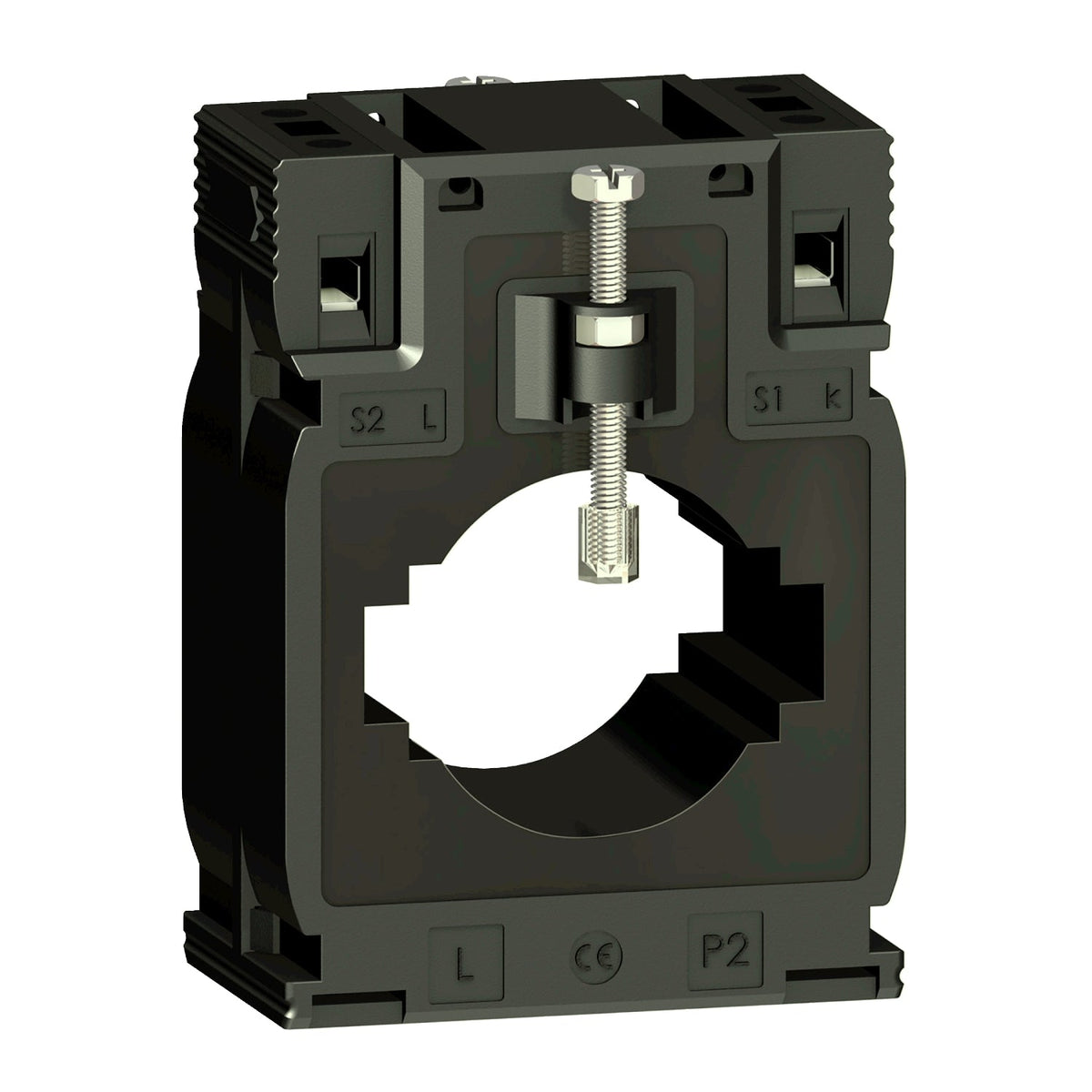

Schneider Electric METSECT5MD080 PowerLogic CT MD type 800/5 A current transformer
Schneider Electric METSECT5MD080 PowerLogic CT MD type 800/5 A current transformer

Schneider Electric METSECT5MD080 PowerLogic CT MD Type 800/5 A Class 1 40 mm Current Transformer

Brand: Schneider Electric
Reference No: METSECT5MD080
Catalog No: METSECT5MD080
Tariff Code (HS): 850431
Rated Current: 800 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$40.71

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECT5MD080 is a PowerLogic MD-type current transformer for panel metering, rated 800/5 A for busbar and cable installation. It accepts cables up to 40 mm in diameter or a 50.5 x 12.5 mm / 40.5 x 20.5 mm bus bar, delivering Class 0.5 accuracy at 8 VA burden or Class 1 at 12 VA.

Technical Specifications

Reference METSECT5MD080
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, tropicalised for busbar and cable
Current transformer ratio 800/5 A
Accuracy class Class 0.5 at 8 VA / Class 1 at 12 VA
Rated thermal current (Ith) 48 kA
Dynamic withstand current 2.5 x Ith
Maximum safety factor 5
Rated operational voltage (Ue) < 720 V AC 50/60 Hz
Rated insulation voltage (Ui) 3 kV
Rated impulse withstand voltage (Uimp) 3 kV
Electrical insulation class Class B
Cable outer diameter 40 mm
Bus bar opening 50.5 x 12.5 mm or 40.5 x 20.5 mm
Mounting mode By screws, clip-on, or insulated locking screw
Mounting support Busbar, mounting plate, or DIN rail
Dimensions (W x H x D) 70 x 95 x 65 mm
IP degree of protection IP20
Ambient operating temperature -25...60 C
Net weight 0.369 kg

Certifications & Standards

  • CE
  • VDE 0414
  • IEC 61869-2

Selection Notes

The METSECT5MD080 is the highest-current unit in the 40 mm MD window, rated 800 A primary with a 48 kA thermal current that matches the top MC variant one size down in cable diameter. Choose it over the MC080 whenever the installed conductor exceeds the 32 mm MC window, since the current and accuracy class line up but the physical clearance does not.

Technical Details

Short Description
PowerLogic MD-type tropicalised CT, 800/5 A ratio, Class 0.5/1 accuracy, 40 mm cable or dual busbar opening.
Rated Current (Ampere)
800 A
Mounting Type
Busbar, cable, or DIN rail
Protection Type
IP20
Catalog No
METSECT5MD080
Delivery Date (Days)
30 days
Model Number
CT
Tariff Code
850431
