Schneider Electric METSECT5MC080 PowerLogic CT MC Type 800/5 A Class 1 32 mm Current Transformer

% $-34.29

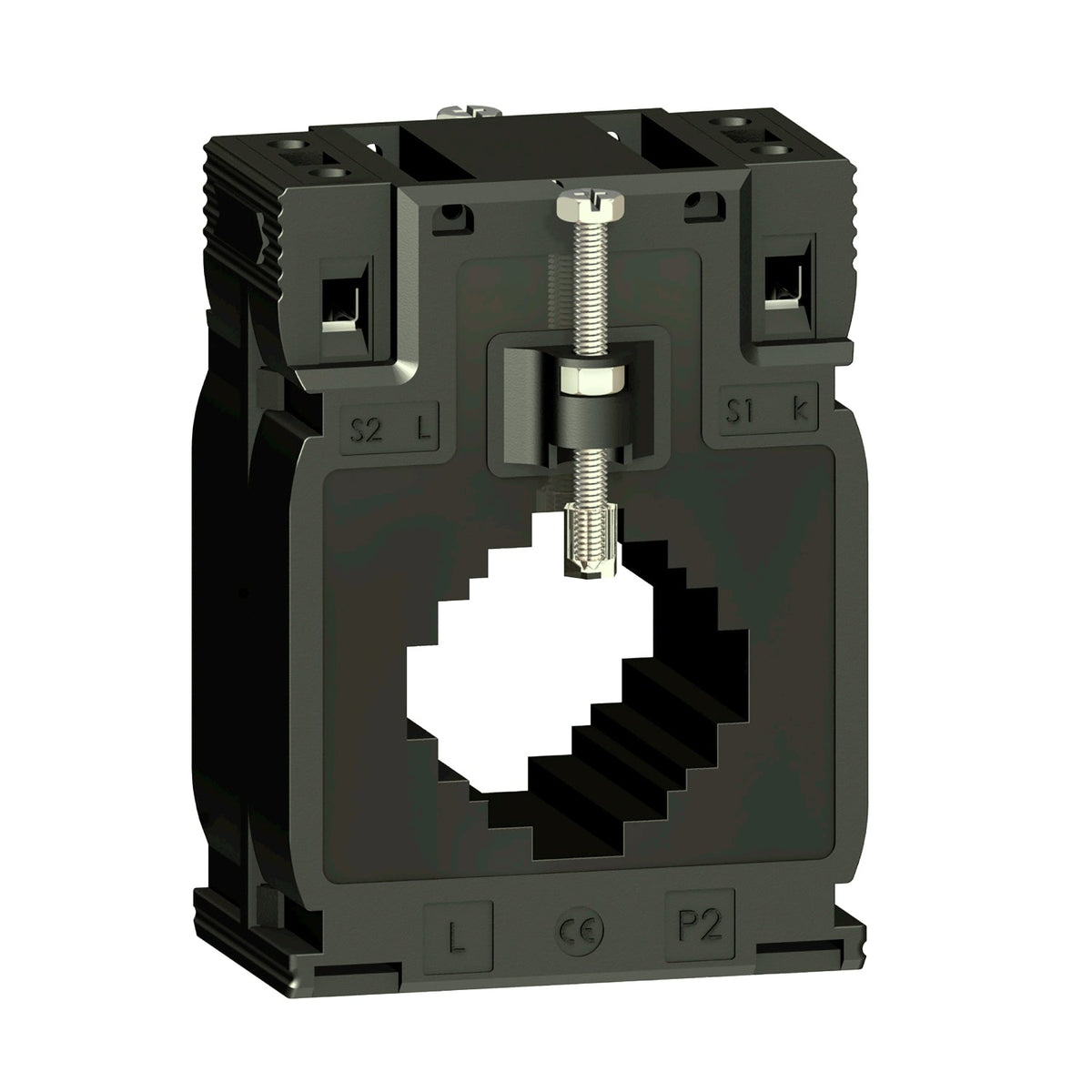

Schneider Electric METSECT5MC080 PowerLogic CT MC type 800/5 A current transformer
Schneider Electric METSECT5MC080 PowerLogic CT MC type 800/5 A current transformer

Schneider Electric METSECT5MC080 PowerLogic CT MC Type 800/5 A Class 1 32 mm Current Transformer

Brand: Schneider Electric
Reference No: METSECT5MC080
Catalog No: METSECT5MC080
Tariff Code (HS): 850431
Rated Current: 800 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$34.29

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSECT5MC080 is a PowerLogic MC-type current transformer for panel metering, rated 800/5 A for busbar and cable installation. It accepts cables up to 32 mm in diameter or a 40.5 x 10.5 / 32.5 x 20.5 / 25.5 x 25.5 mm bus bar, delivering Class 0.5 accuracy at 10 VA burden or Class 1 at 12 VA.

Technical Specifications

Reference METSECT5MC080
Brand Schneider Electric
Range PowerLogic
Product type Current transformer, tropicalised for busbar and cable
Current transformer ratio 800/5 A
Accuracy class Class 0.5 at 10 VA / Class 1 at 12 VA
Rated thermal current (Ith) 48 kA
Dynamic withstand current 2.5 x Ith
Maximum safety factor 5
Rated operational voltage (Ue) < 720 V AC 50/60 Hz
Rated insulation voltage (Ui) 3 kV 50 Hz for 1 minute
Rated impulse withstand voltage (Uimp) 3 kV
Electrical insulation class Class B
Cable outer diameter 32 mm
Bus bar opening 40.5 x 10.5 / 32.5 x 20.5 / 25.5 x 25.5 mm
Mounting mode By screws, insulated locking screw, or clip-on
Mounting support Busbar, mounting plate, or DIN rail
Window dimensions 70 x 95 mm outside, 41 x 41 mm inner
IP degree of protection IP20
Ambient operating temperature -25...60 C
Net weight 0.499 kg

Certifications & Standards

  • CE
  • VDE 0414
  • IEC 61869-2

Selection Notes

The METSECT5MC080 carries 800 A primary current through the same 32 mm MC window used by the lower-current variants, with a 48 kA thermal rating that is the highest in the MC line. Choosing it over the 600 A unit makes sense once the feeder's fault current calculation shows the lower-rated core would saturate; the window size and mounting options stay identical across the family, so this is purely a current and thermal-duty decision.

Technical Details

Short Description
PowerLogic MC-type tropicalised CT, 800/5 A ratio, Class 0.5/1 accuracy, 32 mm cable or triple busbar opening.
Rated Current (Ampere)
800 A
Mounting Type
Busbar, cable, or DIN rail
Protection Type
IP20
Catalog No
METSECT5MC080
Delivery Date (Days)
30 days
Model Number
CT
Tariff Code
850431
