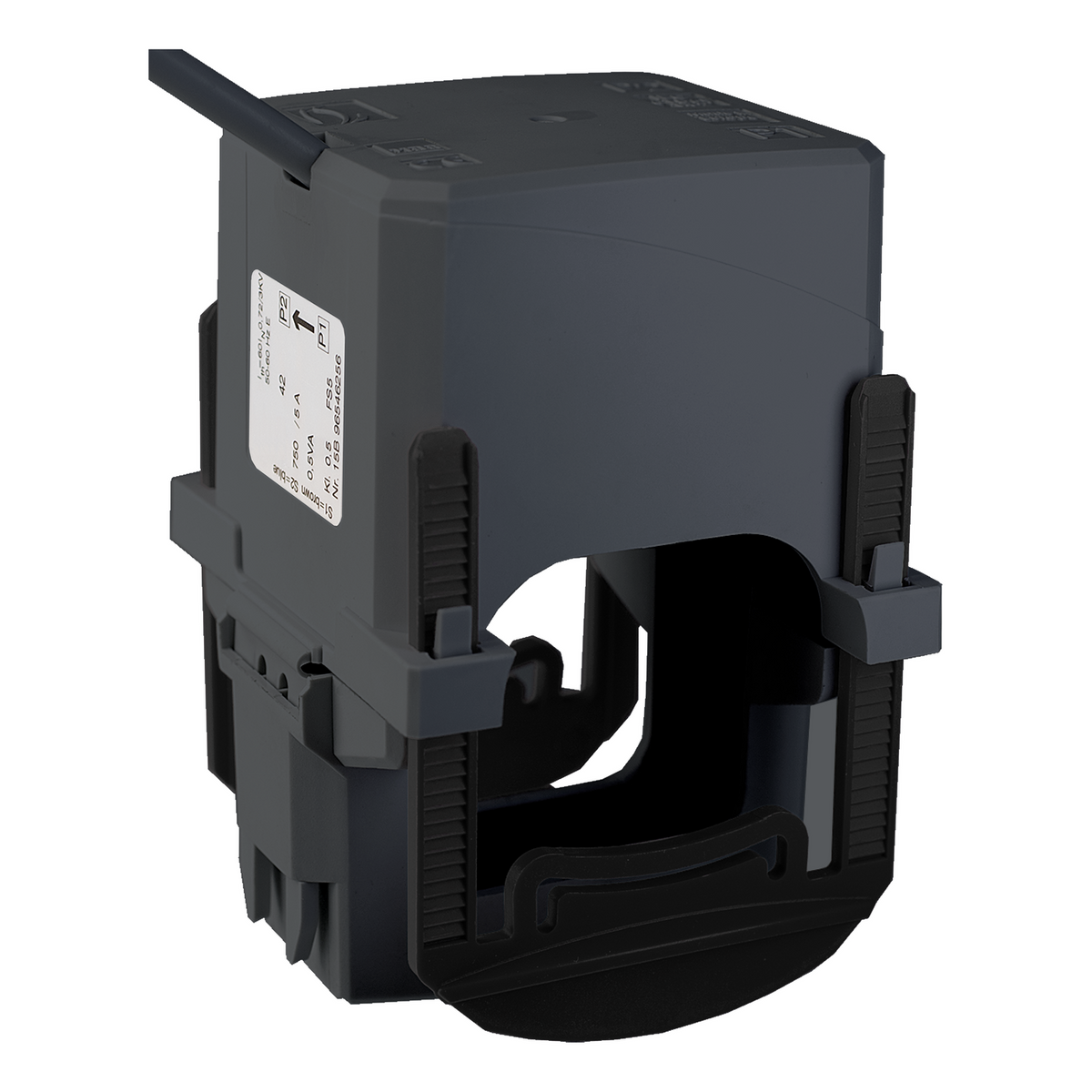

Schneider Electric METSECT5HJ080 PowerLogic HJ Type 800/5 A Class 0.5 42.4mm Current Transformer

The Schneider Electric METSECT5HJ080 is a PowerLogic Type HJ split-core current transformer for cable mounting, ratio 800/5 A, Class 0.5 accuracy at 2.5 VA. It clips around a cable up to 42.4 mm diameter without opening the circuit, supplying a standard 5 A secondary to a power meter or protection relay on a 800 A feeder.

Technical Specifications

Certifications & Standards

• DIN EN 60044-1
• DIN EN 61869-1
• DIN EN 61869-2
• VDE 0414

Selection Notes

The METSECT5HJ080 clamps onto a cable up to 42.4 mm diameter for a 800 A feeder without breaking the conductor, which is the main reason to pick a HJ split-core type over a solid-core busbar transformer. Class 0.5 accuracy makes it suitable for revenue-grade or sub-billing energy metering, not just coarse load indication. Choose the next current rating in the HJ series if the measured feeder load exceeds 800 A, since the window size stays the same across the family.

Applications

The clip-on HJ body lets a panel builder add the METSECT5HJ080 to an existing 800 A cable run during a metering or protection upgrade, without disconnecting the conductor or shutting down the circuit to fit the transformer.
