Schneider Electric METSECT5HA020 PowerLogic HA Type 200/5 A Class 1 18.4mm Current Transformer

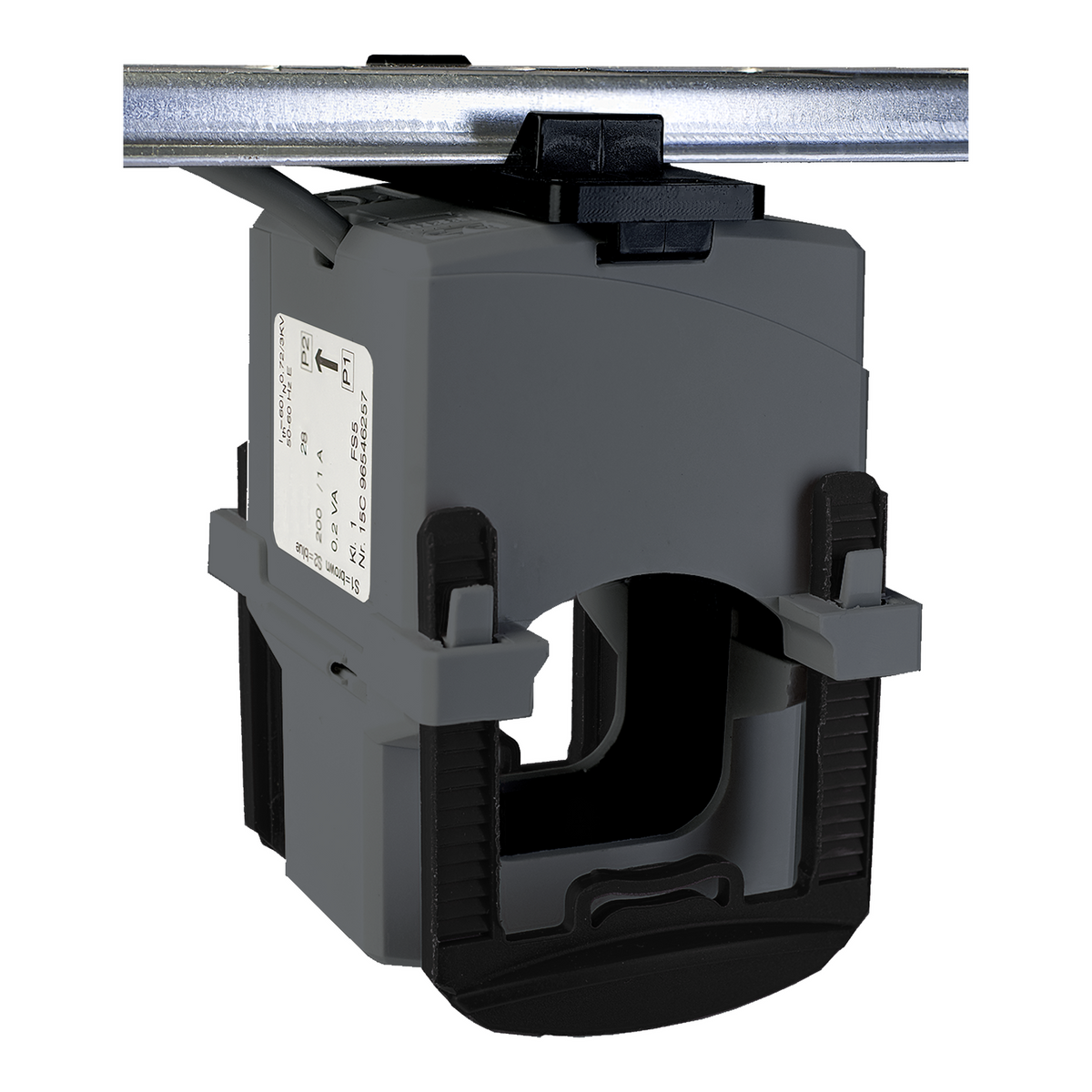

The Schneider Electric METSECT5HA020 is a PowerLogic Type HA split-core current transformer for cable mounting, ratio 200/5 A, Class 1 accuracy at 1.5 VA. It clips around a cable up to 18.4 mm diameter without opening the circuit, supplying a standard 5 A secondary to a power meter or protection relay on a 200 A feeder.

Technical Specifications

Certifications & Standards

• DIN EN 60044-1
• DIN EN 61869-1
• DIN EN 61869-2
• VDE 0414

Selection Notes

The METSECT5HA020 clamps onto a cable up to 18.4 mm diameter for a 200 A feeder without breaking the conductor, which is the main reason to pick a HA split-core type over a solid-core busbar transformer. Class 1 accuracy covers general-purpose metering and protection-relay current input, where billing-grade precision is not required. Choose the next current rating in the HA series if the measured feeder load exceeds 200 A, since the window size stays the same across the family.

Applications

The clip-on HA body lets a panel builder add the METSECT5HA020 to an existing 200 A cable run during a metering or protection upgrade, without disconnecting the conductor or shutting down the circuit to fit the transformer.
