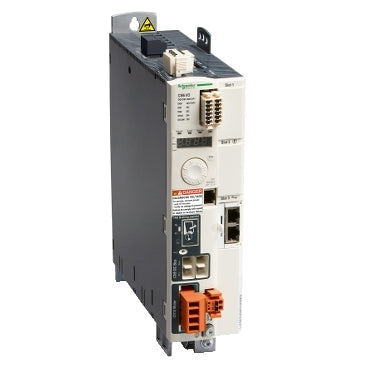

Schneider Electric LXM32SD30N4 Lexium 32 LXM32S 10A 400V SERCOS III Servo Drive

The Schneider Electric LXM32SD30N4 is a Lexium 32 LXM32S motion servo drive with integrated SERCOS III fieldbus, delivering 10 A continuous output current at 8 kHz from a three-phase 200-240 V / 380-480 V supply, rated 3 kW nominal power at 400 V. It provides 2 capture digital inputs, 3 discrete outputs, and an integrated STO safety function.

Technical Specifications

Certifications & Standards

• CE
• CSA
• EN/IEC 61800-3

Selection Notes

The LXM32SD30N4's SERCOS III interface is fixed and integrated rather than card-selectable — choose this 'S' variant specifically when the machine's motion controller runs SERCOS III, or the 'M' series instead for CANopen/EtherCAT/Profinet flexibility. At 10 A continuous / 3 kW, it matches the LXM32MD30N4's power class in the same 68 mm book frame, but without the M-series' extended SS1/SS2/SLS/SOS safety options — only integrated STO is available here.

Applications

Single-axis servo control on SERCOS III motion networks, paired with a BMH 100 mm servo motor at up to 3 kW.
