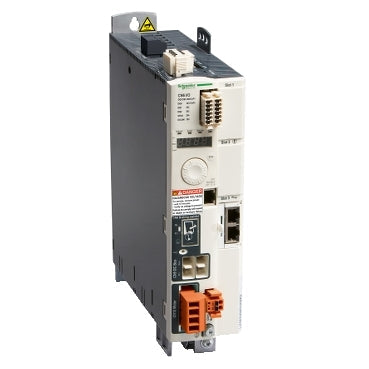

Schneider Electric LXM32MD18M2 Lexium 32 LXM32M 6A 230V Single-Phase Servo Drive

The Schneider Electric LXM32MD18M2 is a Lexium 32 'M' (modular) servo drive for a single axis, delivering 6 A continuous output current at 8 kHz from a single-phase 100-120 V / 200-240 V supply and 1 kW nominal power at 230 V. Digital I/O is built in, with CANopen, CANmotion, EtherNet/IP, EtherCAT, Profibus, Profinet, and Modbus TCP each added through a separate communication card.

Technical Specifications

Certifications & Standards

• CE
• TÜV
• UL
• CSA
• EN/IEC 61800-3
• EN/IEC 61800-5-1

Selection Notes

The 'M' distinguishes this drive from the fixed-fieldbus LXM32A and analog/Modbus LXM32C families: only digital I/O is integrated by default, and the fieldbus protocol — CANopen, CANmotion, EtherNet/IP, EtherCAT, Profibus, Profinet, or Modbus TCP — is chosen per project by fitting the matching communication option card, alongside an optional eSM safety card for SS1/SS2/SLS/SOS beyond the base STO function. Its 6 A continuous rating and 1 kW at 230 V match the LXM32AD18M2 and LXM32CD18M2; select the LXM32M when the project's fieldbus protocol is undecided or differs machine to machine.

Applications

Single-axis servo control on single-phase machines where the fieldbus protocol (CANopen, EtherNet/IP, EtherCAT, Profibus, Profinet, or Modbus TCP) is chosen per project via an option card rather than fixed at the factory.
