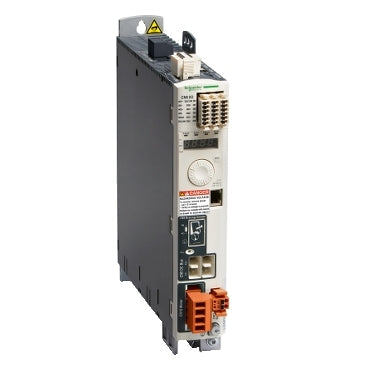

Schneider Electric LXM32CD30M2 Lexium 32 LXM32C 10A 230V 1.6kW Single-Phase Servo Drive

The Schneider Electric LXM32CD30M2 is a compact Lexium 32 single-phase servo drive rated for 10 A continuous output current at 8 kHz, delivering 1.6 kW nominal power at 230 V. It runs from a 100-240 V AC single-phase supply, integrates an EMC filter, and communicates over Modbus via RJ45 for single-axis motion control with BMH or BSH servo motors.

Technical Specifications

Certifications & Standards

• CE
• UL
• CSA
• TÜV
• EN/IEC 61800-3
• EN/IEC 61800-5-1

Selection Notes

At 10 A continuous / 1.6 kW nominal (230 V, 8 kHz), the LXM32CD30M2 is a compact single-phase Lexium 32 drive suited to lower-power single-axis motion where cabinet space is tight, with a 68 mm-wide C-frame body. Its 2 safety plus 6 logic discrete inputs, 5 discrete outputs and 2 analogue inputs give ample local I/O for machines that sequence motion without a central controller. The integrated STO (SIL 3, PL e) removes the need for an external safety relay on the torque-off path, and Modbus over RJ45 covers single-axis configuration and diagnostics. Choose a higher-current Lexium 32 model when the application's continuous torque demand exceeds this drive's 10 A / 1.6 kW rating.
