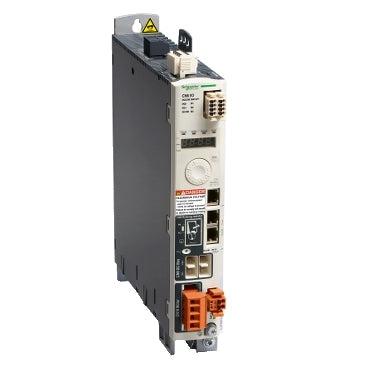

Schneider Electric LXM32AD12N4 Lexium 32 LXM32A 3A 400V Three-Phase Servo Drive

The Schneider Electric LXM32AD12N4 is a Lexium 32 Book-format motion servo drive for a single axis, delivering 3 A continuous output current at 8 kHz from a three-phase 200-240 V / 380-480 V supply. Nominal power is 0.9 kW at 400 V, with integrated CANmotion and CANopen fieldbus ports and an integrated STO safety function (SIL 3 / PL e).

Technical Specifications

Certifications & Standards

• CE
• TÜV
• UL
• CSA
• EN/IEC 61800-3
• EN/IEC 61800-5-1

Selection Notes

As an 'A' variant, the LXM32AD12N4 controls position, speed, and torque over an integrated CANmotion or CANopen fieldbus rather than through analog or pulse/direction wiring — pick the 'C' series instead if the application needs a standalone pulse-train or ±10 V analog reference with no motion-bus master. The 3 A continuous rating and 12 A 5-second peak (not the 12 in the reference, which marks that 5-second overload point) size it for machines under roughly 0.9 kW at 400 V; step up to the 6 A or 10 A LXM32A variants in the same three-phase frame for higher continuous torque.

Applications

Single-axis position, speed, and torque control on machines already running a CANopen or CANmotion motion network, paired with a BMH or BSH servo motor at up to 0.9 kW.
