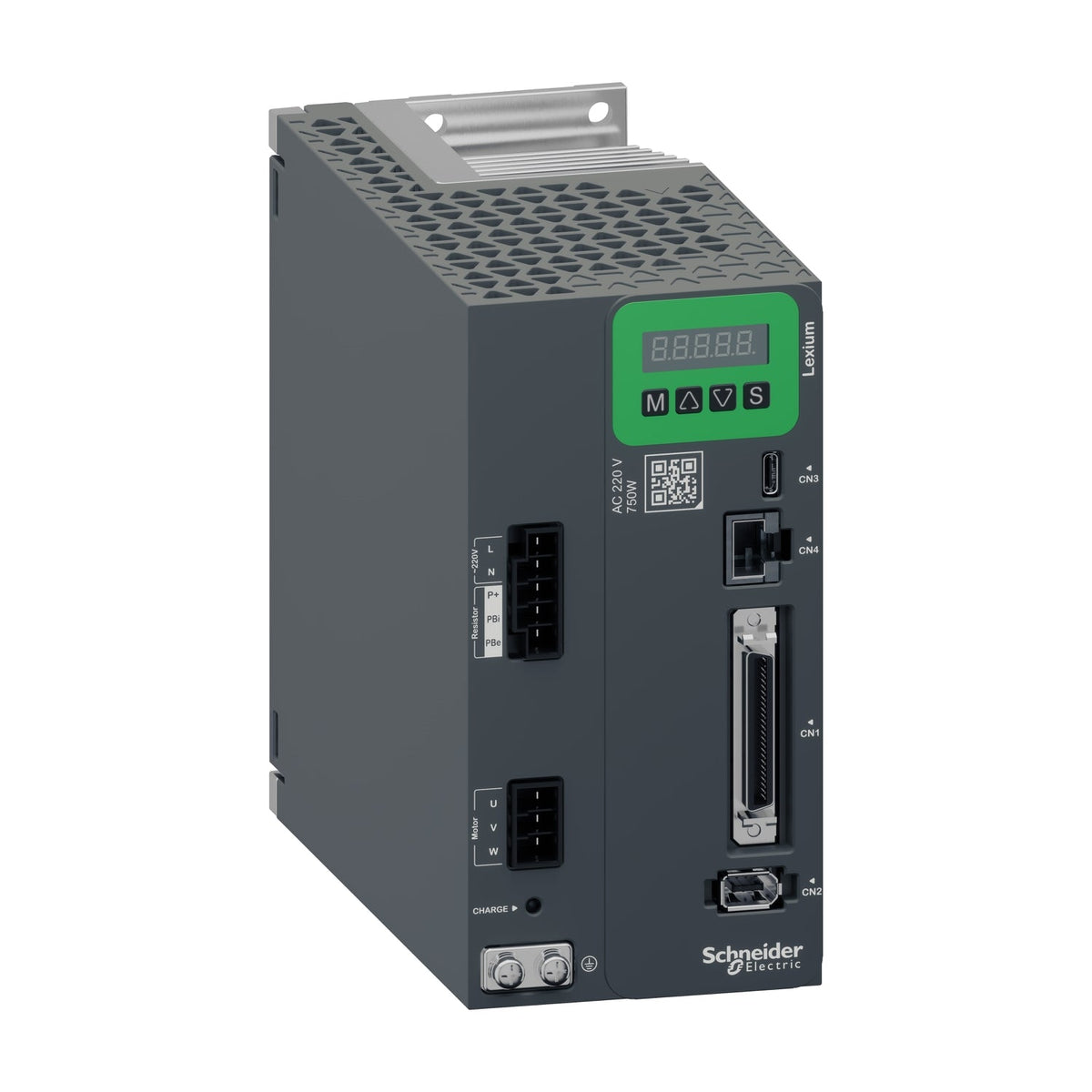

Schneider Electric LXM18PDU07M2X Lexium 18 LXM18P 0.75kW Single-Phase 220V Servo Drive

The Schneider Electric LXM18PDU07M2X is a Lexium 18 servo drive rated for 0.75 kW continuous power at 220...240 V single-phase supply, delivering 5.1 A continuous output current at 8 kHz switching frequency. It integrates Modbus, digital I/O, analog I/O (2 analog inputs), pulse-train input (PTI), and pulse-train output (PTO) in a 155.5 x 78 x 166.5 mm housing weighing 1.79 kg.

Technical Specifications

Selection Notes

At 0.75 kW / 5.1 A continuous, the LXM18PDU07M2X moves to the taller 78 mm housing shared with the higher-power LXM18P drives, so panel space should be planned for that increase versus the 48 mm units. The 17.3 A / 3 s peak rating is for short overload during acceleration, not continuous running above 5.1 A. The same 2 analog inputs and onboard PTI/PTO/Modbus interface carry over from the smaller LXM18P variants, so control wiring and commissioning stay consistent across the power range. It operates across a -5 to 45 degC ambient range and up to 1000 m altitude without derating, and ships in 7-unit packs for panel-build spares planning.
