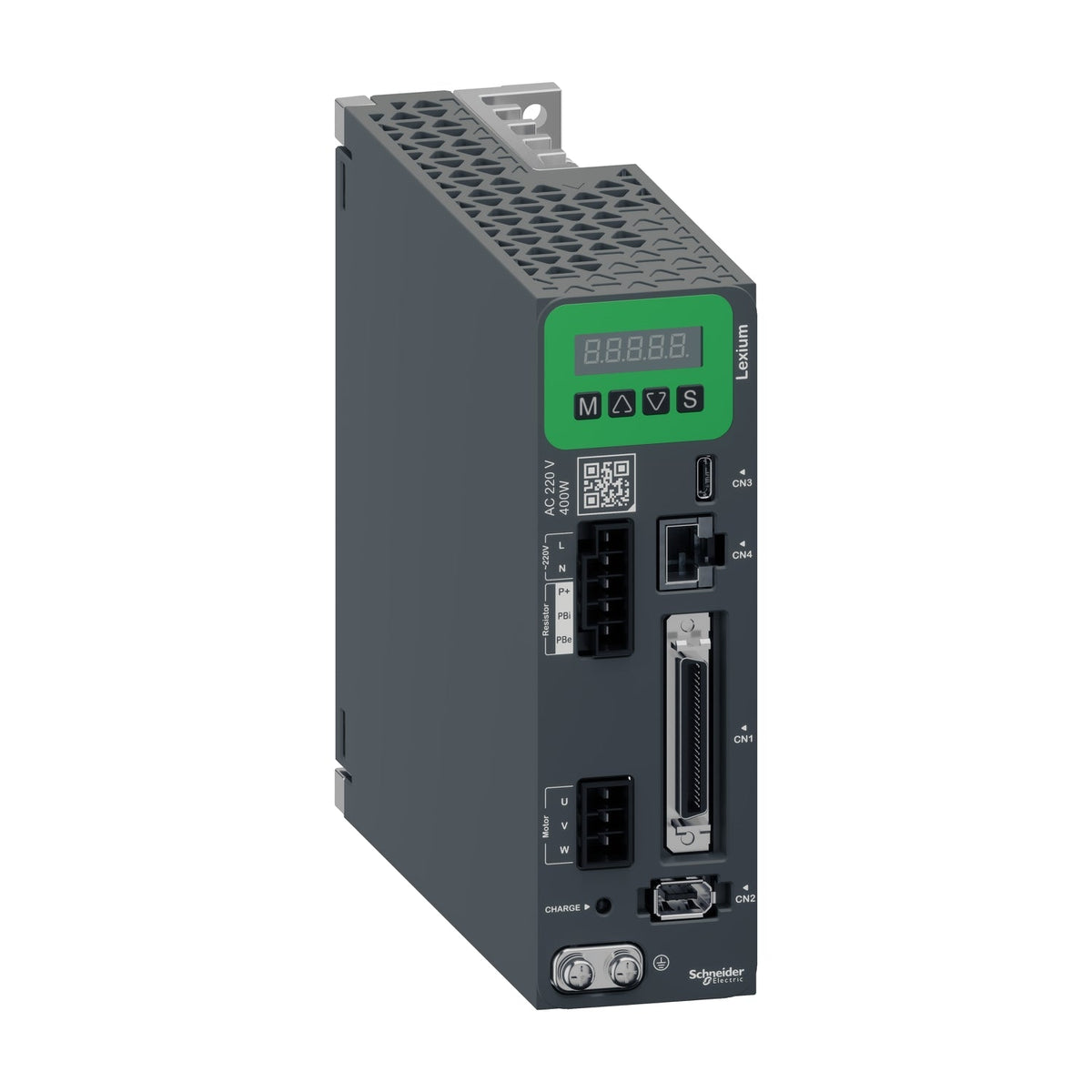

Schneider Electric LXM18PDU04M2X Lexium 18 LXM18P 0.4kW Single-Phase 220V Servo Drive

The Schneider Electric LXM18PDU04M2X is a Lexium 18 servo drive rated for 0.4 kW continuous power at 220...240 V single-phase supply, delivering 2.8 A continuous output current at 8 kHz switching frequency. It integrates Modbus, digital I/O, analog I/O (2 analog inputs), pulse-train input (PTI), and pulse-train output (PTO) in a 155.5 x 48 x 166.5 mm housing weighing 1.19 kg.

Technical Specifications

Selection Notes

The 0.4 kW / 2.8 A continuous rating steps up from the smallest LXM18P drive while keeping the same 48 mm-tall enclosure, giving more continuous torque headroom for PTI/analog-controlled axes without a larger footprint. The 9.6 A / 3 s peak covers brief acceleration overload only, so cyclic duty needs to stay within 2.8 A continuous. As with the rest of the LXM18P line, the 2 analog inputs and onboard Modbus let it run from either an analog reference or a Modbus master without extra hardware. It operates across a -5 to 45 degC ambient range and up to 1000 m altitude without derating, and ships in 11-unit packs for panel-build spares planning.
