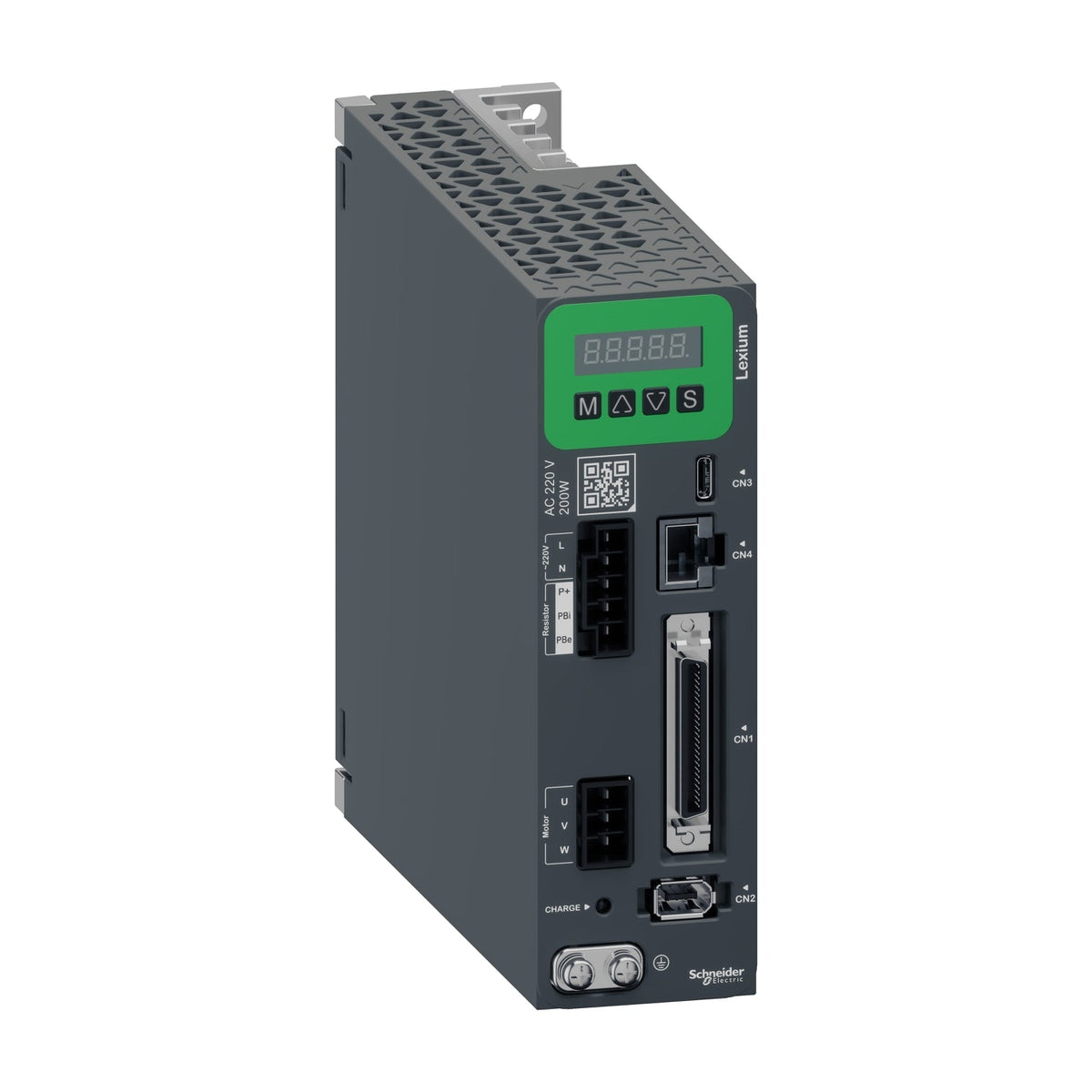

Schneider Electric LXM18PDU02M2X Lexium 18 LXM18P 0.2kW Single-Phase 220V Servo Drive

The Schneider Electric LXM18PDU02M2X is a Lexium 18 servo drive rated for 0.2 kW continuous power at 220...240 V single-phase supply, delivering 1.6 A continuous output current at 8 kHz switching frequency. It integrates Modbus, digital I/O, analog I/O (2 analog inputs), pulse-train input (PTI), and pulse-train output (PTO) in a 155.5 x 48 x 166.5 mm housing weighing 1.19 kg.

Technical Specifications

Selection Notes

The 0.2 kW / 1.6 A continuous rating is the entry point of the LXM18P pulse-train/analog/Modbus line, suited to low-inertia axes controlled by step/direction (PTI) signals or a Modbus master rather than an EtherCAT network. Its 2 analog inputs allow direct analog reference control without a separate I/O module, which the EtherCAT-based LXM18E variants do not expose the same way. The 5.9 A / 3 s peak figure is a short-duration overload rating; continuous operation must stay within the 1.6 A output current. It operates across a -5 to 45 degC ambient range and up to 1000 m altitude without derating, and ships in 11-unit packs for panel-build spares planning.
