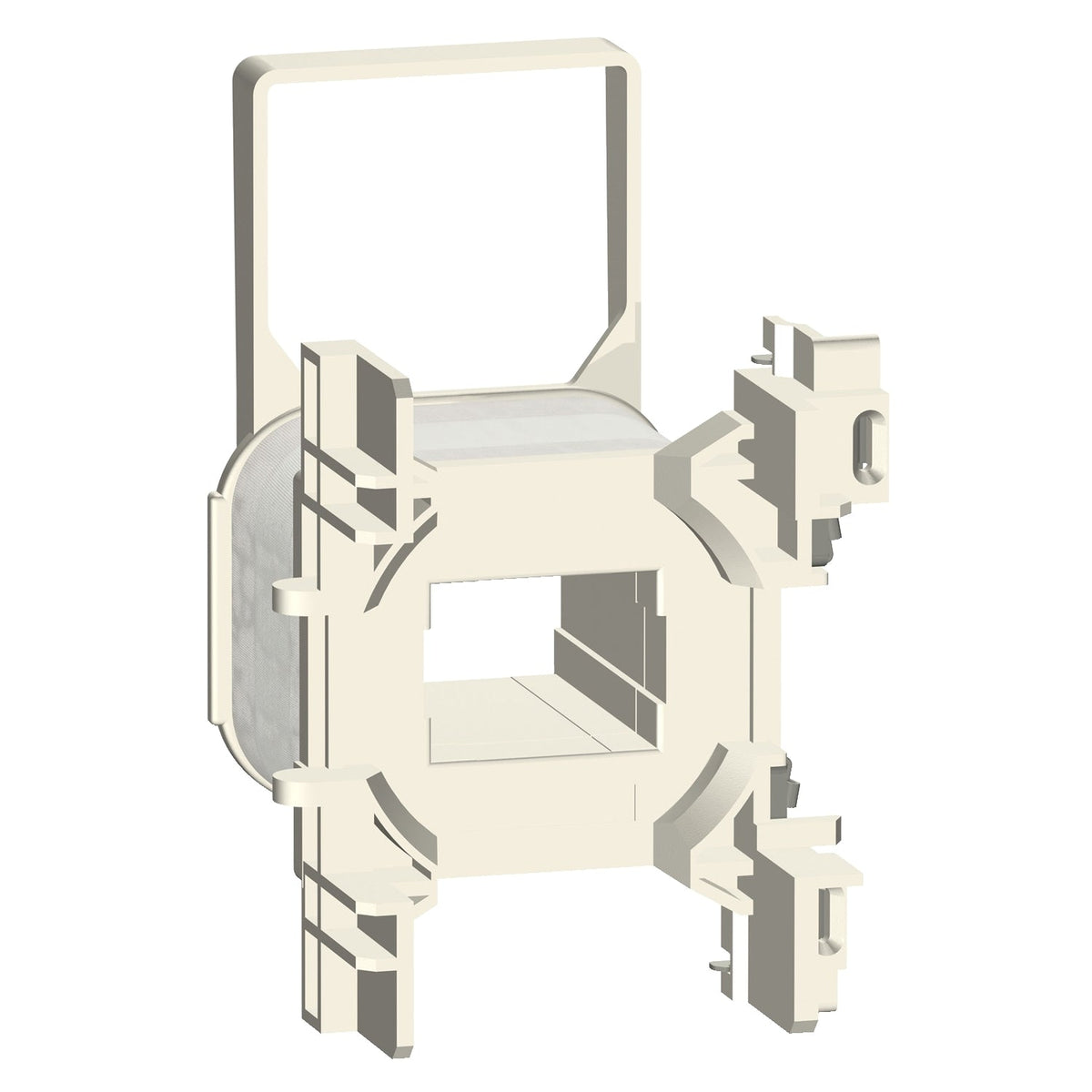

Schneider Electric LXD3V7 TeSys Deca contactor coil 400 V AC for LC1D40A-D65A

Schneider Electric LXD3V7 TeSys Deca Contactor Coil 400 V AC 50/60 Hz for LC1D40A-D65A Contactor Coil

Name: Schneider Electric LXD3V7 TeSys Deca Contactor Coil 400 V AC 50/60 Hz for LC1D40A-D65A Contactor Coil
Brand: Schneider Electric
SKU: LXD3V7
Price: 33.05 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: LXD3V7

Catalog No: LXD3V7

Tariff Code (HS): 853690

Rated Voltage: 400 V AC

Poles: 3P

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$33.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric LXD3V7 is a TeSys Deca replacement contactor coil rated 400 V AC 50/60 Hz, compatible with LC1D40A...D65A, LC1DT60A, and LC1DT80A contactors in the 40-65 A frame. It operates within 0.8-1.1 Uc at 50 Hz and 0.85-1.1 Uc at 60 Hz, rated for up to 3600 cycles per hour at 60 C ambient.

Technical Specifications

Reference	LXD3V7
Brand	Schneider Electric
Range	TeSys Deca
GTIN	3389119410465
Device short name	LXD3
Product or component type	Contactor coil
Control circuit type	AC 50/60 Hz
Uc control circuit voltage	400 V AC 50/60 Hz
Average resistance	607 ohm at 20 C
Inductance of closed circuit	33.1 H
Product compatibility	LC1DT60A, LC1DT80A, LC1D40A...D65A
Maximum operating rate	3600 cyc/h at 60 C
Coil technology	Without built-in suppressor module
Control circuit voltage limits	0.8-1.1 Uc at 50 Hz, 0.85-1.1 Uc at 60 Hz operational; 0.3-0.6 Uc drop-out
Inrush power	160 VA (50/60 Hz, cos phi 0.75, at 20 C)
Hold-in power consumption	15 VA (50/60 Hz, cos phi 0.3, at 20 C)
Heat dissipation	4-5 W (50/60 Hz)
Ambient air temperature for operation	-5...60 C
Net weight	0.07 kg
Country of origin	FR

Selection Notes

Specify the LXD3V7 for the 40-65 A LC1D40A...D65A, LC1DT60A, and LC1DT80A frame only; its higher inrush and hold-in power versus the LXD1 reflects the larger armature of this frame, so the two coils are not interchangeable between frame sizes despite sharing the same 400 V AC control voltage.

Technical Details

Short Description

TeSys Deca contactor coil, 400 V AC 50/60 Hz, for LC1D40A-D65A contactors.

Rated Voltage (VAC)

400 V AC

Catalog No

LXD3V7

Number of Poles

Delivery Date (Days)

30 days

Model Number

LXD3

Tariff Code

853690
