Schneider Electric LXD1V7 TeSys Deca Contactor Coil 400 V AC 50/60 Hz for LC1D09-D38 Contactor Coil

% $-11.14

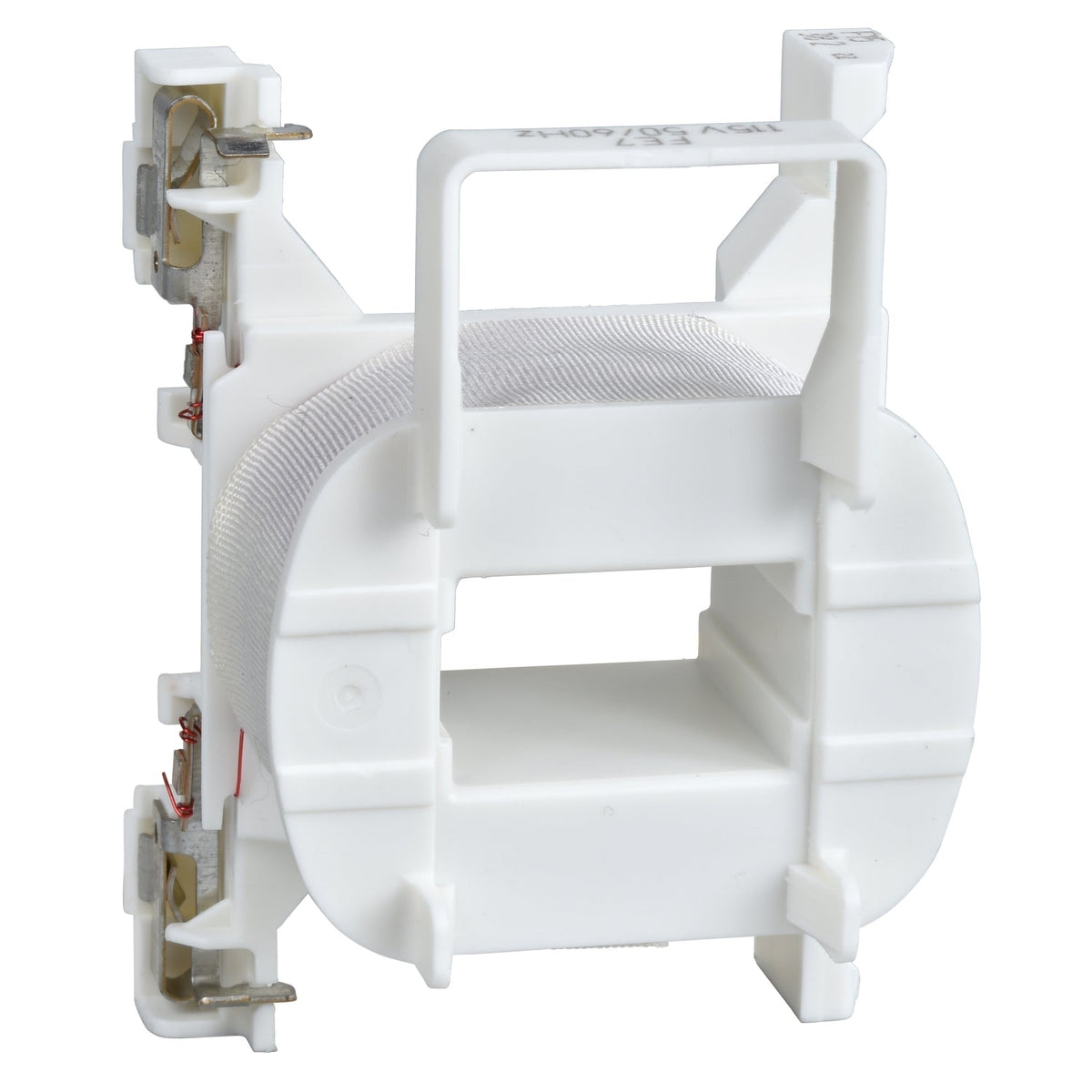

Schneider Electric LXD1V7 TeSys Deca contactor coil 400 V AC for LC1D09-D38
Schneider Electric LXD1V7 TeSys Deca contactor coil 400 V AC for LC1D09-D38

Schneider Electric LXD1V7 TeSys Deca Contactor Coil 400 V AC 50/60 Hz for LC1D09-D38 Contactor Coil

Brand: Schneider Electric
Reference No: LXD1V7
Catalog No: LXD1V7
Tariff Code (HS): 853690
Rated Voltage: 400 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LXD1V7 is a TeSys Deca replacement contactor coil rated 400 V AC 50/60 Hz, compatible with LC1D09...D38 and LC1DT20...DT40 contactors in the 9-38 A frame. It operates within 0.8-1.1 Uc at 50 Hz and 0.85-1.1 Uc at 60 Hz, and is rated for up to 3600 cycles per hour at 60 C ambient.

Technical Specifications

Reference LXD1V7
Brand Schneider Electric
Range TeSys Deca
GTIN 3389110467963
Device short name LXD1
Product or component type Contactor coil
Control circuit type AC 50/60 Hz
Uc control circuit voltage 400 V AC 50/60 Hz
Average resistance 1633 ohm at 20 C
Inductance of closed circuit 60 H
Product compatibility CAD, LC1DT20...DT40, LC1D09...D38
Maximum operating rate 3600 cyc/h at 60 C
Coil technology Without built-in suppressor module
Control circuit voltage limits 0.8-1.1 Uc at 50 Hz, 0.85-1.1 Uc at 60 Hz operational; 0.3-0.6 Uc drop-out
Inrush power 70 VA (50/60 Hz, cos phi 0.75, at 20 C)
Hold-in power consumption 7-7.5 VA (50/60 Hz, cos phi 0.3, at 20 C)
Heat dissipation 2-3 W (50/60 Hz)
Ambient air temperature for operation -5...60 C
Net weight 0.07 kg
Country of origin ID

Selection Notes

Specify the LXD1V7 only for the 9-38 A LC1D09...D38 and LC1DT20...DT40 frame it is listed for; the 400 V AC control voltage removes the need for a separate control transformer on 400 V-powered panels, but the coil is frame-specific and is not interchangeable with the 40-65 A LXD3 series.

Technical Details

Short Description
TeSys Deca contactor coil, 400 V AC 50/60 Hz, for LC1D09-D38 contactors.
Rated Voltage (VAC)
400 V AC
Catalog No
LXD1V7
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LXD1
Tariff Code
853690
