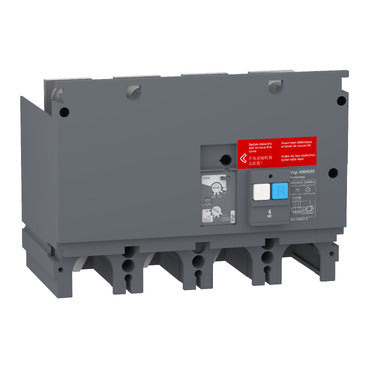

Schneider Electric LV532465 EasyPact CVS400-630 Vigi Earth-Leakage Add-On Module 4P Circuit Breaker Accessory

The Schneider Electric LV532465 is a 4-pole Vigi earth-leakage add-on module for EasyPact CVS400/630 moulded case circuit breakers, operating at 200-440 V AC 50/60 Hz with adjustable sensitivity from 30 mA to 30 A. It mounts directly on the device terminals, is self-powered from the distribution voltage even on just 2 phases, and actuates the trip unit directly on an earth-leakage fault.

Technical Specifications

Certifications & Standards

• IEC 60947-2

Selection Notes

LV532465 covers the larger 400/630 A EasyPact CVS frame, where sensitivity tops out at 30 A rather than the 10 A ceiling on the 100-250 A modules, reflecting the higher leakage currents acceptable on a larger distribution feeder; the 3-pole version of the same module is a separate SKU. Its 30 mA to 30 A adjustable sensitivity and 0-300 ms delay cover both Class A (standard) and Class AC earth-leakage detection, so the same module can be set for personnel protection at 30 mA or selective fire/equipment protection at higher thresholds.
