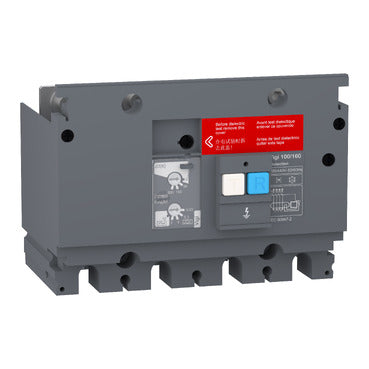

Schneider Electric LV529489 EasyPact CVS100-160 Vigi Earth-Leakage Add-On Module 4P Circuit Breaker Accessory

The Schneider Electric LV529489 is a 4-pole Vigi earth-leakage add-on module for EasyPact CVS100/160 moulded case circuit breakers, operating at 200-440 V AC 50/60 Hz with adjustable sensitivity from 30 mA to 10 A. It mounts directly on the device terminals, is self-powered from the distribution voltage even on just 2 phases, and actuates the trip unit directly on an earth-leakage fault.

Technical Specifications

Certifications & Standards

• IEC 60947-2

Selection Notes

LV529489 fits 4-pole EasyPact CVS100 or CVS160 breakers and covers the 100 A and 160 A frames on one reference; the 3-pole version of the same module is a separate SKU. Its 30 mA to 10 A adjustable sensitivity and 0-300 ms delay cover both Class A (standard) and Class AC earth-leakage detection, so the same module can be set for either personnel protection at 30 mA or selective fire/equipment protection at higher thresholds. Being self-powered from the line voltage, it needs no auxiliary control supply.
