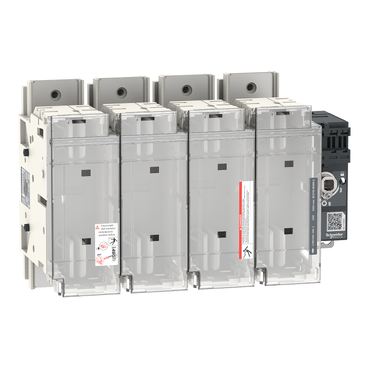

Schneider Electric LV481444 FuPacT GSD400 4P 400 A NH2 Fuse Switch Disconnector

The Schneider Electric LV481444 FuPacT GSD400 is a 4-pole switch disconnector fuse rated 400 A at up to 690 V AC, built for front or right-side handle control. It takes DIN NH2 fuses and protects distribution circuits in buildings, infrastructure and industrial plants against short-circuits and overloads, with a 50 kA breaking capacity with fuses at 415 V and 690 V.

Technical Specifications

Certifications & Standards

• CE
• CCC
• EAC
• EN/IEC 60947-1
• EN/IEC 60947-3

Selection Notes

The GSD400 4P adds a fourth switched pole and internal neutral links to the 3-pole GSD400, for circuits needing a switched rather than solid neutral; it shares the 3-pole version's 400 A rating, NH2 fuse size and 50 kA breaking capacity, in a 318 mm wide housing. Choose the 3-pole variant where the neutral does not need to be switched. Only AC-22A/AC-22B utilisation categories are rated at this frame, so confirm the duty is switching rather than frequent AC-23 motor-type operation.
