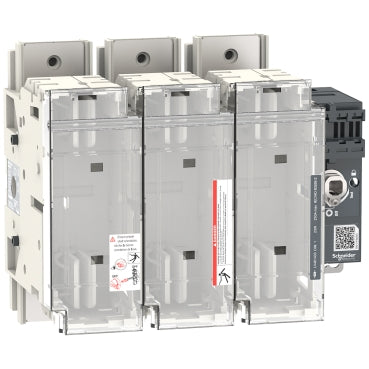

Schneider Electric LV481433 FuPacT GSD250 3P 250 A NH1 Fuse Switch Disconnector

The Schneider Electric LV481433 FuPacT GSD250 is a 3-pole switch disconnector fuse rated 250 A at up to 690 V AC, built for front or right-side handle control. It takes DIN NH1 fuses and protects distribution circuits in buildings, infrastructure and industrial plants against short-circuits and overloads, with an 80 kA breaking capacity with fuses at 415 V.

Technical Specifications

Certifications & Standards

• CE
• CCC
• EAC
• EN/IEC 60947-1
• EN/IEC 60947-3

Selection Notes

The GSD250 steps up to a DIN NH1 fuse carrier, the next frame above the NH00-based GSD160, for circuits rated above 160 A up to 250 A. Its 234 x 195 x 146 mm housing is larger than the NH00 frames and its lugs-ring terminal range extends to 240 mm² to carry the higher continuous current. The 80 kA/415 V and 50 kA/690 V breaking capacities with fuses match the GSD125/GSD160, since fault-current interruption is carried by the fuse rather than the switch frame.
