Schneider Electric LV480808 Fupact ISFT630 3P 630 A Fuse Switch Disconnector – NH3

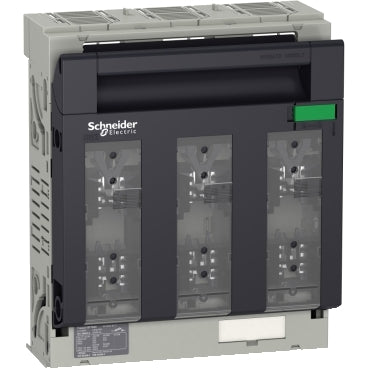

Schneider Electric LV480808 Fupact ISFT630 3P 630 A NH3 Fuse Switch Disconnector

Name: Schneider Electric LV480808 Fupact ISFT630 3P 630 A NH3 Fuse Switch Disconnector
Brand: Schneider Electric
SKU: LV480808
Price: 343.07 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: LV480808

Catalog No: LV480808

Tariff Code (HS): 853610

Rated Current: 630 A

Rated Voltage: 690 V

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$343.07

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric LV480808 is a three-pole Fupact ISFT630 fuse-switch disconnector rated 630 A at 690 V AC for AC-21B duty, sized for NH3 fuse links and built for backplate mounting with m10 terminals. It carries a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses and a 20.4 kA for 1 s short-time withstand rating.

Technical Specifications

Reference	LV480808
Brand	Schneider Electric
Range	FuPacT
Device short name	ISFT630
Poles	3P (3 fuse carriers)
Fuse type / size	DIN NH3
[Ith] conventional thermal current	630 A at 40 °C (48 W per fuse)
[Ue] rated operational voltage	690 V AC 50/60 Hz (800 V AC AC-20); 440 V DC (800 V DC DC-20)
[Ui] / [Uimp] insulation / impulse withstand voltage	1000 V AC / 1000 V DC / 8 kV
[Ie] rated operational current	630 A, AC-21B, 220–690 V AC; 630 A, AC-22B, up to 690 V AC; 630 A DC-21B/DC-22B at 220–440 V DC (3 poles in series)
Breaking capacity with fuses	80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC
[Icw] rated short-time withstand current	20.4 kA for 1 s
Rated making/breaking capacity	42.4 kA at 690 V
Control type	Fuse carriers handle
Mounting	Backplate
Connections / tightening torque	M10 terminals (20 N.m)
Dimensions (W x H x D) / net weight	250 mm x 306 mm x 130 mm / 3.5 kg
IP degree of protection	IP3x front face (IEC 60529)
Standard	IEC 60947-1, IEC 60947-3

Certifications & Standards

CE
CCC
EAC
EN/IEC 60947-1
EN/IEC 60947-3

Selection Notes

The LV480808 is a fixed, non-switchable ISFT630 disconnector rated 630 A, sized for NH3 fuse links and a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses installed. Pick the backplate version over the other ISFT630 mounting variants in this range when it matches the busbar or cable connection already used in the panel.

Technical Details

Short Description

ISFT630 3P 630 A fuse-switch disconnector, NH3, backplate.

Rated Current (Ampere)

630 A

Rated Voltage (VAC)

690 V

Mounting Type

Backplate

Protection Type

IP3x

Catalog No

LV480808

Delivery Date (Days)

30 days

Model Number

ISFT630

Tariff Code

853610

Schneider Electric LV480808 Fupact ISFT630 3P 630 A NH3 Fuse Switch Disconnector

Technical Specifications

Certifications & Standards

Selection Notes

Technical Details

Downloads

Customers say

Customer Reviews
