Schneider Electric LV480805 Fupact ISFT250 3P 250 A NH1 Fuse Switch Disconnector

% $-323.33
Schneider Electric LV480805 Fupact ISFT250 3P 250 A Fuse Switch Disconnector – NH1
Schneider Electric LV480805 Fupact ISFT250 3P 250 A Fuse Switch Disconnector – NH1

Schneider Electric LV480805 Fupact ISFT250 3P 250 A NH1 Fuse Switch Disconnector

Brand: Schneider Electric
Reference No: LV480805
Catalog No: LV480805
Tariff Code (HS): 853610
Rated Current: 250 A
Rated Voltage: 690 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$323.33

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

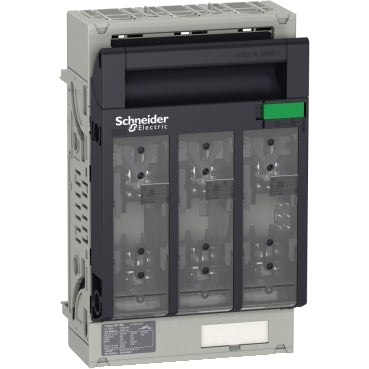

The Schneider Electric LV480805 is a three-pole Fupact ISFT250 fuse-switch disconnector rated 250 A at 690 V AC for AC-21B duty, sized for NH1 fuse links and built for 60 mm busbar, turnable hook mounting with m10 terminals. It carries a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses and a 8.6 kA for 1 s short-time withstand rating.

Technical Specifications

Reference LV480805
Brand Schneider Electric
Range FuPacT
Device short name ISFT250
Poles 3P (3 fuse carriers)
Fuse type / size DIN NH1
[Ith] conventional thermal current 250 A at 40 °C (23 W per fuse)
[Ue] rated operational voltage 690 V AC 50/60 Hz (800 V AC AC-20); 440 V DC (800 V DC DC-20)
[Ui] / [Uimp] insulation / impulse withstand voltage 1000 V AC / 1000 V DC / 8 kV
[Ie] rated operational current 250 A, AC-21B, 220–690 V AC; 250 A, AC-22B, up to 690 V AC; 250 A DC-21B/DC-22B at 220–440 V DC (3 poles in series)
Breaking capacity with fuses 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC
[Icw] rated short-time withstand current 8.6 kA for 1 s
Rated making/breaking capacity 14.6 kA at 690 V
Control type Fuse carriers handle
Mounting Busbars, 60 mm, turnable hook
Connections / tightening torque M10 terminals (6 N.m)
Dimensions (W x H x D) / net weight 184 mm x 306 mm x 110 mm / 2 kg
IP degree of protection IP3x front face (IEC 60529)
Standard IEC 60947-1, IEC 60947-3

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The LV480805 is a fixed, non-switchable ISFT250 disconnector rated 250 A, sized for NH1 fuse links and a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses installed. Pick the 60 mm busbar, turnable hook version over the other ISFT250 mounting variants in this range when it matches the busbar or cable connection already used in the panel.

Technical Details

Short Description
ISFT250 3P 250 A fuse-switch disconnector, NH1, 60 mm busbar, turnable hook.
Rated Current (Ampere)
250 A
Rated Voltage (VAC)
690 V
Mounting Type
Busbars, 60 mm, turnable hook
Protection Type
IP3x
Catalog No
LV480805
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
ISFT250
Tariff Code
853610
