Schneider Electric LV480801 Fupact ISFT160 3P 160 A NH00 Fuse Switch Disconnector

% $-71.95

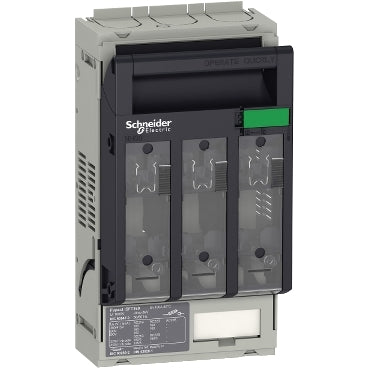

Schneider Electric LV480801 Fupact ISFT160 3P 160 A Fuse Switch Disconnector – NH00
Schneider Electric LV480801 Fupact ISFT160 3P 160 A Fuse Switch Disconnector – NH00

Schneider Electric LV480801 Fupact ISFT160 3P 160 A NH00 Fuse Switch Disconnector

Brand: Schneider Electric
Reference No: LV480801
Catalog No: LV480801
Tariff Code (HS): 853610
Rated Current: 160 A
Rated Voltage: 690 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$71.95

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV480801 is a three-pole Fupact ISFT160 fuse-switch disconnector rated 160 A at 690 V AC for AC-21B duty, sized for NH00 fuse links and built for backplate mounting with m8 terminals. It carries a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses and a 5 kA for 1 s short-time withstand rating.

Technical Specifications

Reference LV480801
Brand Schneider Electric
Range FuPacT
Device short name ISFT160
Poles 3P (3 fuse carriers)
Fuse type / size DIN NH00
[Ith] conventional thermal current 160 A at 40 °C (12 W per fuse)
[Ue] rated operational voltage 690 V AC 50/60 Hz (800 V AC AC-20); 440 V DC (800 V DC DC-20)
[Ui] / [Uimp] insulation / impulse withstand voltage 1000 V AC / 1000 V DC / 8 kV
[Ie] rated operational current 160 A, AC-21B and AC-22B, 220–690 V AC; 160 A DC-21B at 220 V DC, 125 A DC-21B at 440 V DC (3 poles in series)
Breaking capacity with fuses 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC
[Icw] rated short-time withstand current 5 kA for 1 s
Rated making/breaking capacity 7.65 kA at 690 V
Control type Fuse carriers handle
Mounting Backplate
Connections / tightening torque M8 terminals (5 N.m)
Dimensions (W x H x D) / net weight 106 mm x 206 mm x 80 mm / 0.6 kg
IP degree of protection IP3x front face (IEC 60529)
Standard IEC 60947-1, IEC 60947-3

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The LV480801 is a fixed, non-switchable ISFT160 disconnector rated 160 A, sized for NH00 fuse links and a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses installed. Pick the backplate version over the other ISFT160 mounting variants in this range when it matches the busbar or cable connection already used in the panel.

Technical Details

Short Description
ISFT160 3P 160 A fuse-switch disconnector, NH00, backplate.
Rated Current (Ampere)
160 A
Rated Voltage (VAC)
690 V
Mounting Type
Backplate
Protection Type
IP3x
Catalog No
LV480801
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
ISFT160
Tariff Code
853610
