Schneider Electric LV438327 ComPacT NSX100-250 DC Terminal Shield 4P Parallel Circuit Breaker Accessory

% $-75.96
Schneider Electric LV438327 ComPacT NSX100-250 DC terminal shield 4P parallel – Circuit Breaker Accessory
Schneider Electric LV438327 ComPacT NSX100-250 DC terminal shield 4P parallel – Circuit Breaker Accessory

Schneider Electric LV438327 ComPacT NSX100-250 DC Terminal Shield 4P Parallel Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV438327
Catalog No: LV438327
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$75.96

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

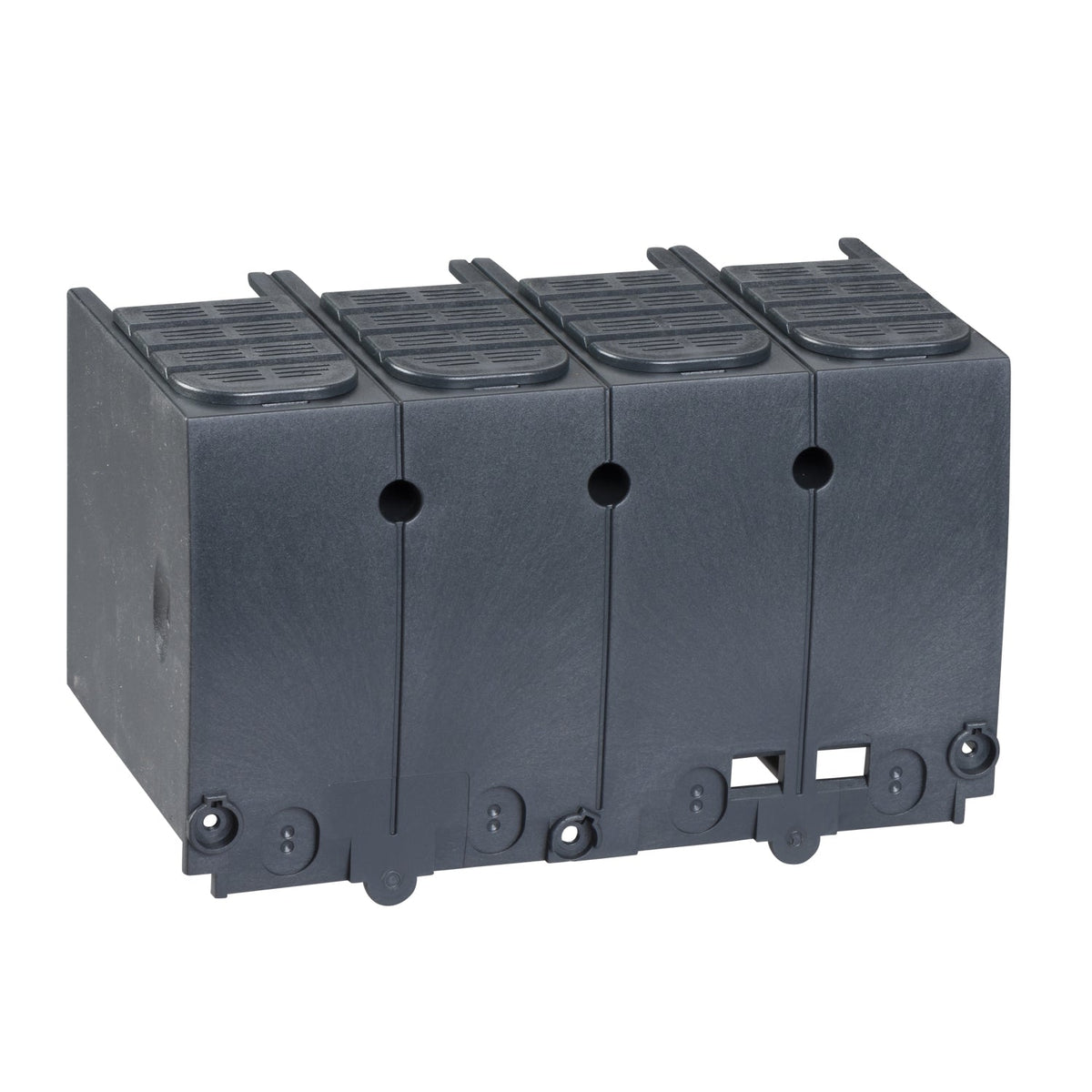

The Schneider Electric LV438327 is a 4-pole terminal shield for ComPacT NSX100 DC, NSX160 DC and NSX250 DC breakers, plus the INS250 and INV100-250 switch-disconnectors, wired with poles in parallel. It insulates the upstream and downstream connection terminals to IP40 and is supplied as a single set.

Technical Specifications

Reference LV438327
Brand Schneider Electric
Product or Component Type Terminal shield
Range Compatibility ComPacT NSX100 DC, ComPacT NSX160 DC, ComPacT NSX250 DC, INS250, INV100...250
Accessory Type Insulation accessory
Poles 4P
Quantity per Set 1 set
Output Coupling Parallel
Location of Connection Upstream, Downstream
IP Degree of Protection IP40 (IEC 60529)
Units per Package 9

Selection Notes

Use the LV438327 instead of the series-coupled LV438326 when the NSX100-250 DC poles are paralleled for higher current rather than higher voltage; both are 4-pole, IP40-rated and fit the same NSX100-250 DC and INV100-250 frame range.

Technical Details

Short Description
ComPacT NSX100-250 DC terminal shield, 4P, parallel connection, IP40.
Protection Type
IP40
Catalog No
LV438327
Delivery Date (Days)
30 days
Model Number
Terminal Shield
Tariff Code
853890
