Schneider Electric LV434205 ComPact NSX BSCM Breaker Status Control Module 24 V DC Circuit Breaker Accessory

% $-177.71

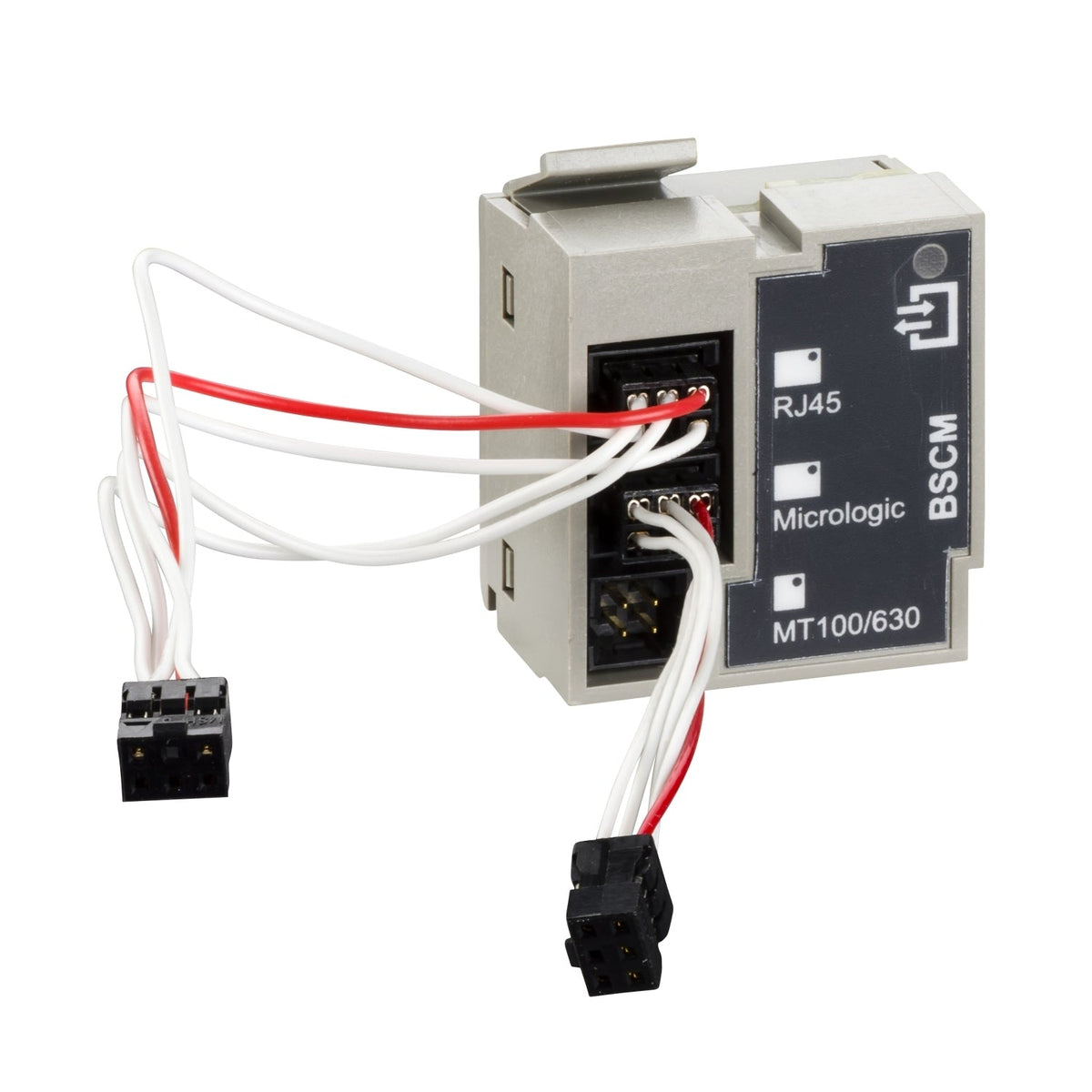

Schneider Electric LV434205 ComPact NSX BSCM breaker status control module
Schneider Electric LV434205 ComPact NSX BSCM breaker status control module

Schneider Electric LV434205 ComPact NSX BSCM Breaker Status Control Module 24 V DC Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV434205
Catalog No: LV434205
Series: ComPact NSX100...250 | ComPact NSX400...630
Tariff Code (HS): 853890
Communication: Connects to Ethernet/Modbus IFE or IFM interface via NSX cord terminal block
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$177.71

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV434205 is a Breaker Status Control Module (BSCM) for ComPact NSX100-630 and PowerPact Multistandard circuit breakers, operating on 24 V DC. It acquires device status indications and manages remote-control functions, including a memory for maintenance indicators, and connects to an Ethernet or Modbus IFE/IFM interface through the breaker's cord terminal block.

Technical Specifications

Reference LV434205
Brand Schneider Electric
Range of Product ComPact NSX100-250, NSX400-630
Device Short Name Breaker status control module
Product or Component Type Communication module
Range Compatibility ComPact NSX, PowerPact Multistandard
Function of Module Control circuit breaker, get breaking status
[Us] Rated Supply Voltage 24 V DC
GTIN 3606480021817

Selection Notes

LV434205 is installed inside the ComPact NSX breaker behind the front cover and is the module that makes communicating remote-control operation possible: once fitted, an IFE or IFM interface can open, close and reset the breaker in manual or auto mode, in addition to reading its status. A breaker without the BSCM can still be monitored over IFE/IFM but cannot be remotely operated.

Technical Details

Short Description
BSCM breaker status and control module for ComPact NSX100-630, 24 V DC, remote open/close/reset.
Mounting Type
Internal, behind breaker front cover
Catalog No
LV434205
Delivery Date (Days)
30 days
Model Number
BSCM
Tariff Code
853890
