Schneider Electric LV434001 EnerlinX IFE Ethernet Interface Module 24 V DC Circuit Breaker Accessory

% $-435.63

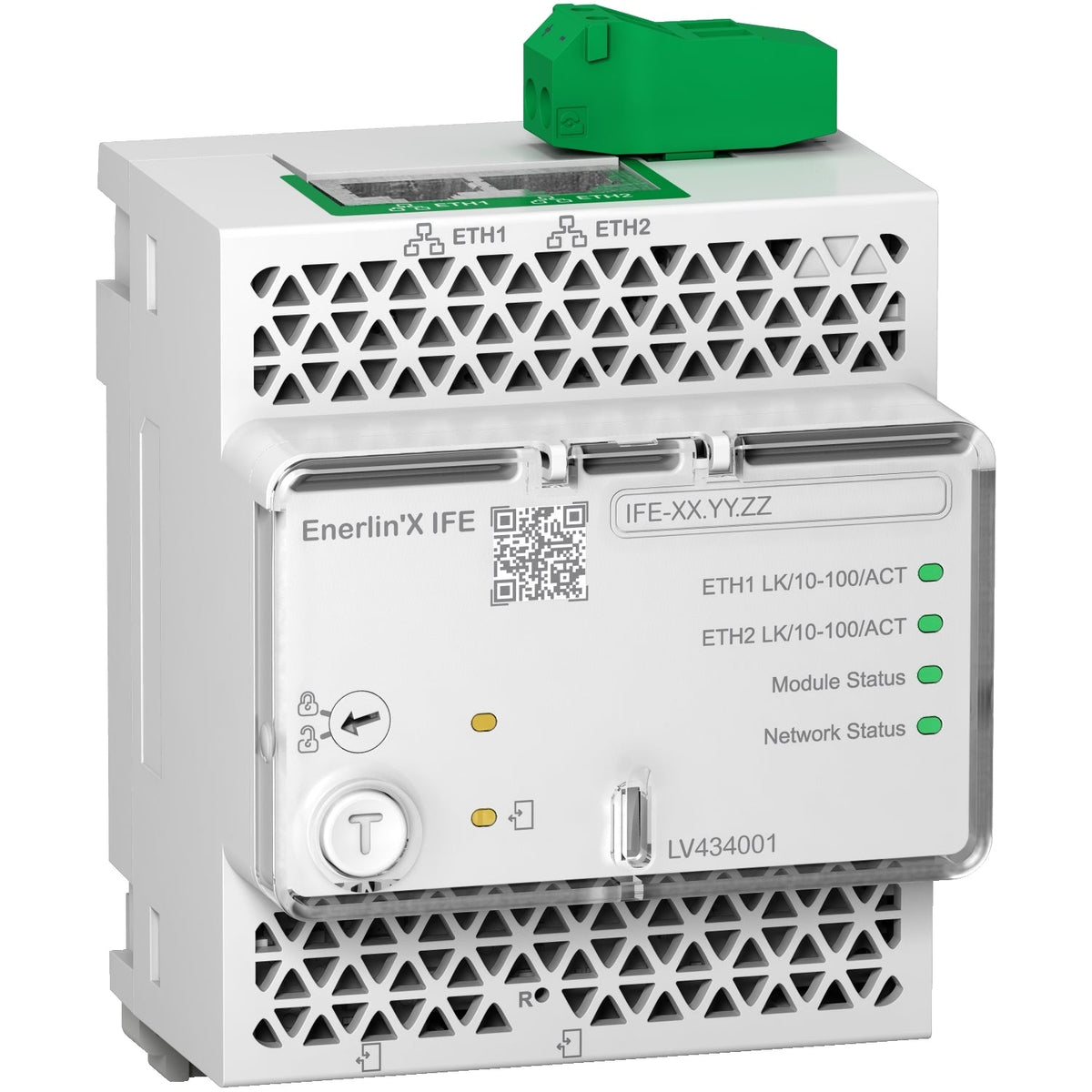

Schneider Electric LV434001 Enerlin'X IFE Ethernet interface module
Schneider Electric LV434001 Enerlin'X IFE Ethernet interface module

Schneider Electric LV434001 Enerlin'X IFE Ethernet Interface Module 24 V DC Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV434001
Catalog No: LV434001
Series: ComPact NSX100...250 | ComPact NSX400...630 | ComPact NS630b...1600 | ComPact NS1600b...3200
Tariff Code (HS): 853890
Communication: Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP (10/100 Mbit/s), Universal Logic Plug
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$435.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV434001 is an Enerlin'X IFE Ethernet interface module that gives a single MasterPact, ComPacT or PowerPact circuit breaker Ethernet access at 10/100 Mbps for a simple daisy-chain connection. It mounts on 35 mm DIN rail with an embedded HTTP server and draws 24 V DC - 20/+10% at 120 mA.

Technical Specifications

Reference LV434001
Brand Schneider Electric
Range of Product ComPact NSX100-250, NSX400-630, NS630b-1600, NS1600b-3200
Device Short Name IFE
Product or Component Type Interface module
Range Compatibility MasterPact MTZ/NT/NW, ComPact NSX, ComPact NS630b-1600, ComPact NS1600b-3200, PowerPact J/L/H/P/R
Communication Network Type Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP, 10/100 Mbit/s, 2-port RJ45; Universal Logic Plug, 2-port RJ45
Web Server Embedded HTTP server
Mounting Mode By clips, 35 mm DIN rail
Control Type By software
[Us] Rated Supply Voltage 24 V DC -20/+10%
Maximum Supply Current 3 A
Current Consumption 120 mA
Connections / Terminals RJ45 connector
Dimensions (H x W x D) 105 x 72 x 71 mm
Net Weight 182.5 g
IP Degree of Protection Connectors IP2X, other parts IP3X, front panel IP4X
Ambient Air Temperature (Operation) -20...70 °C
Ambient Air Temperature (Storage) -40...85 °C
Pollution Degree 3

Certifications & Standards

  • GOST
  • cULus
  • FCC
  • CE
  • UL 60950
  • UL 508
  • IEC 60947-6-2
  • IEC 60950

Selection Notes

LV434001 serves a single breaker over Ethernet; the switchboard-server variant in the same IFE family adds a Modbus TCP/IP gateway for several breakers sharing one Ethernet drop. Choose LV434001 when only one MasterPact, ComPacT or PowerPact needs a direct Ethernet/Modbus TCP connection rather than a shared gateway. Both RJ45 ULP ports on its underside daisy-chain the breaker's internal ULP link while the two top-side RJ45 ports carry the Ethernet connection.

Technical Details

Short Description
Enerlin'X IFE Ethernet interface module for one MasterPact/ComPacT/PowerPact breaker, 24 V DC.
Mounting Type
35 mm DIN rail, by clips
Protection Type
Connectors IP2X, other parts IP3X, front panel IP4X
Catalog No
LV434001
Delivery Date (Days)
30 days
Model Number
IFE
Tariff Code
853890
