Schneider Electric LV432614T ComPacT NSX400-630 Mechanical Interlock Toggle Circuit Breaker Accessory

% $-180.79

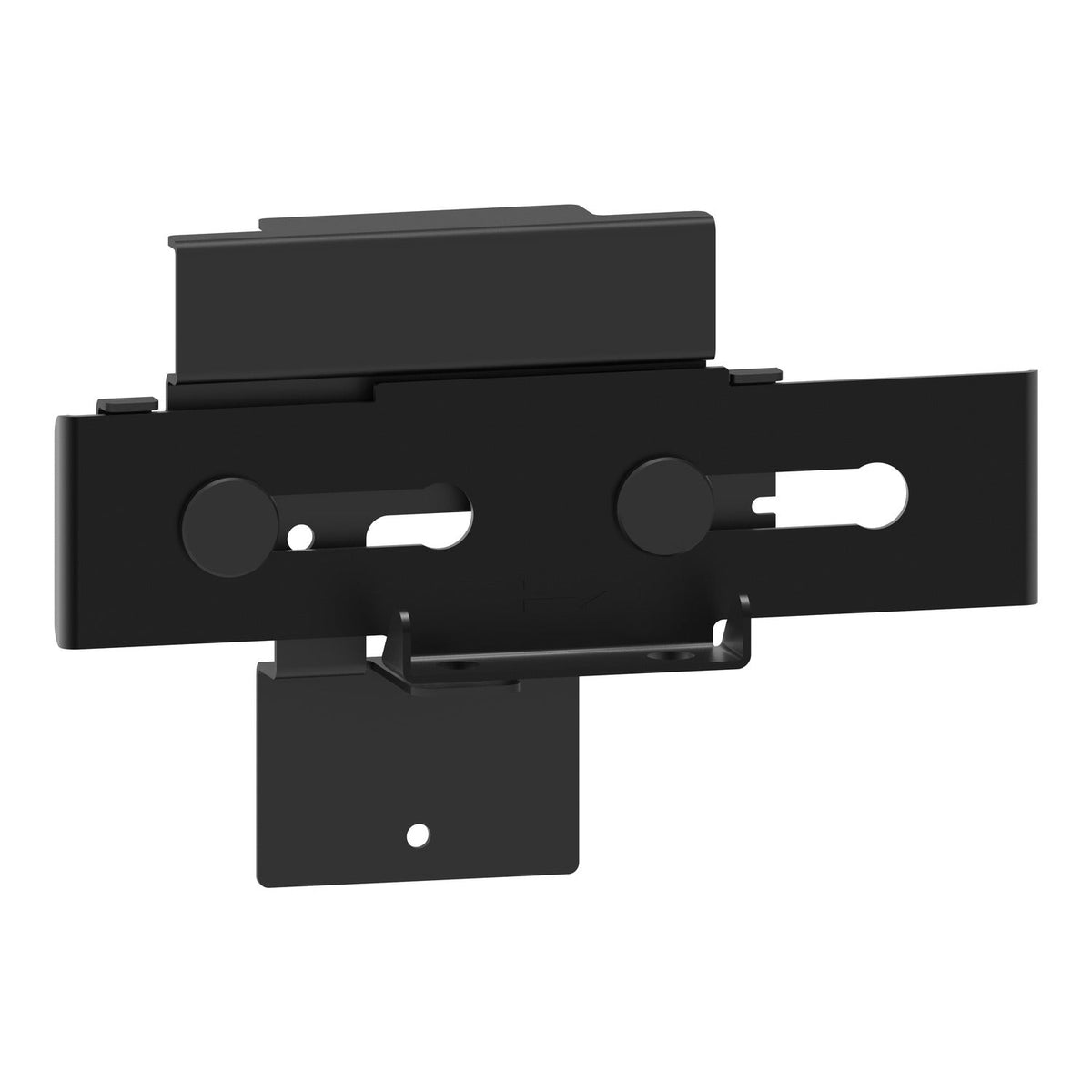

Schneider Electric LV432614T mechanical interlock for toggle ComPacT NSX400-630 devices
Schneider Electric LV432614T mechanical interlock for toggle ComPacT NSX400-630 devices

Schneider Electric LV432614T ComPacT NSX400-630 Mechanical Interlock Toggle Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV432614T
Catalog No: LV432614T
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$180.79

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV432614T is a mechanical interlocking system for toggle-operated ComPacT NSX400 and NSX630 devices. It only allows one breaker ON with the other OFF, or both OFF, and locks with one or two padlocks. The system is fixed-mounted between the two breakers and does not require a plug-in or withdrawable configuration to operate.

Technical Specifications

Reference LV432614T
Brand Schneider Electric
Range Compatibility ComPacT NSX, ComPacT NSX DC
Component Type Mechanical interlock
Accessory Category Interlocking accessory
Mounting Mode Fixed
Source-Changeover Interlock Mechanical interlocking
Control Type Toggle
Authorized Positions One ON/one OFF, or both OFF
Padlocking 1 or 2 padlocks, 5-8 mm shackle

Selection Notes

This is the toggle interlock reference for the NSX400-630 frame; two identical units installed side by side extend the interlock to three devices. It applies to toggle-operated breakers only, not the rotary-handle variant covered by LV432621, and both interlocked breakers must share the same fixed mounting mode.

Technical Details

Short Description
The Schneider Electric LV432614T is a mechanical interlocking system for toggle-operated ComPacT NSX400 and NSX630 devices.
Mounting Type
Fixed
Catalog No
LV432614T
Delivery Date (Days)
30 days
Model Number
Mechanical Interlock
Tariff Code
853890
