Schneider Electric LV432614 ComPacT NSX400-630 Mechanical Interlock Toggle 2-Device Circuit Breaker Accessory

% $-182.64

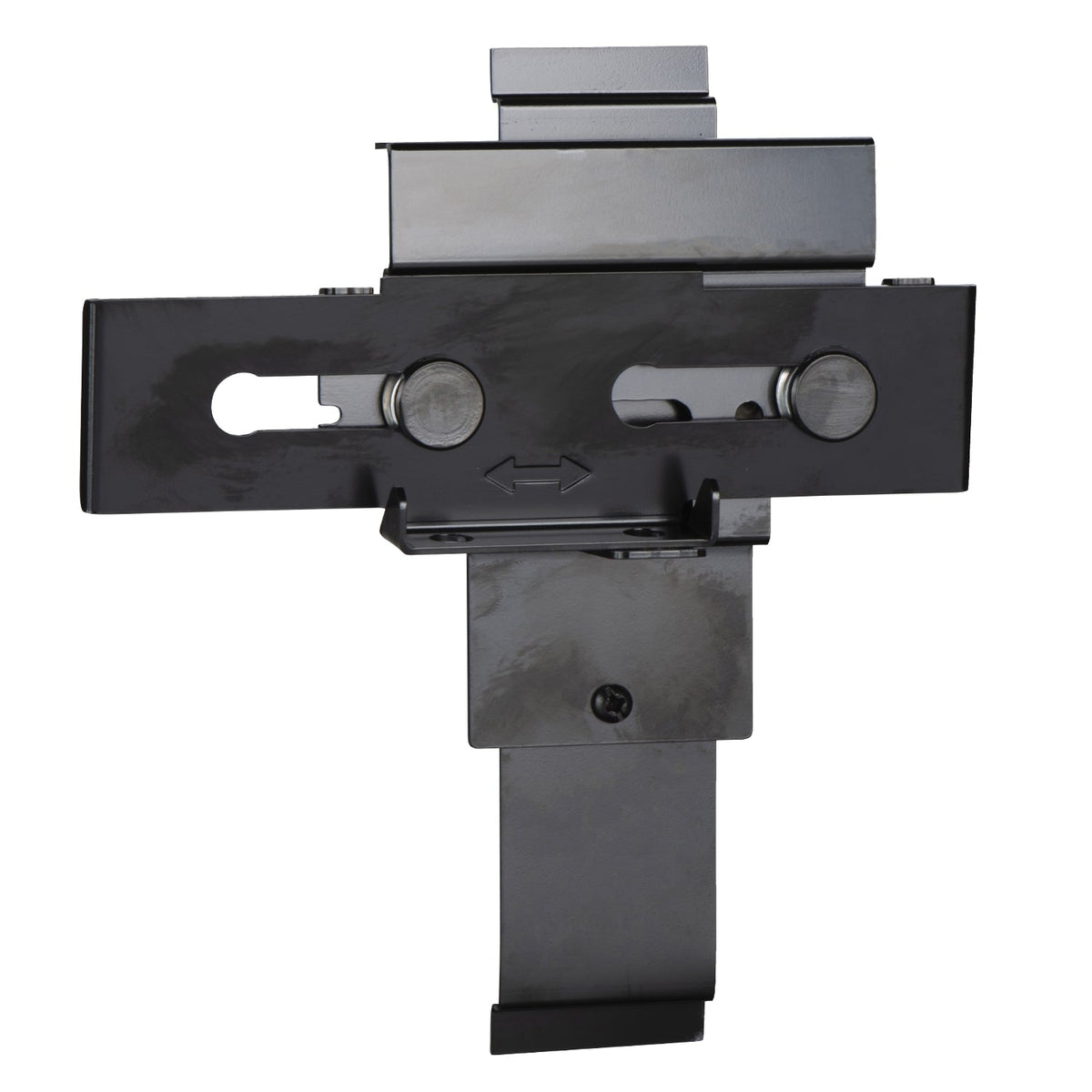

Schneider Electric LV432614 mechanical interlock with toggles for two ComPacT NSX400-630 devices
Schneider Electric LV432614 mechanical interlock with toggles for two ComPacT NSX400-630 devices

Schneider Electric LV432614 ComPacT NSX400-630 Mechanical Interlock Toggle 2-Device Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV432614
Catalog No: LV432614
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$182.64

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV432614 is a mechanical interlocking system for two toggle-operated ComPacT NSX400 or NSX630 devices, fixed or plug-in. It only allows one breaker ON with the other OFF, or both OFF, and locks with one or two padlocks. The system is fixed-mounted between the two breakers and does not require a plug-in or withdrawable configuration to operate.

Technical Specifications

Reference LV432614
Brand Schneider Electric
Range Compatibility ComPacT NSX400, NSX630, NSX400 DC, NSX630 DC
Component Type Mechanical interlock
Accessory Category Interlocking accessory
Mounting Mode Fixed
Source-Changeover Interlock Mechanical interlocking
Control Type Toggle
Authorized Positions One ON/one OFF, or both OFF
Padlocking 1 or 2 padlocks, 5-8 mm shackle

Selection Notes

Use two identical LV432614 interlocking systems to cover three toggle-operated NSX400/630 devices installed side by side. This reference only interlocks toggle controls; for direct rotary handles on EasyPact CVS400/630, use LV432621 instead, since the mechanisms are not interchangeable between control types.

Technical Details

Short Description
The Schneider Electric LV432614 is a mechanical interlocking system for two toggle-operated ComPacT NSX400 or NSX630 devices, fixed or plug-in.
Mounting Type
Fixed
Catalog No
LV432614
Delivery Date (Days)
30 days
Model Number
Mechanical Interlock
Tariff Code
853890
