Schneider Electric LV432525 ComPacT NSX400-630 Auxiliary Connector Support 3 Circuit Breaker Accessory

% $-16.04

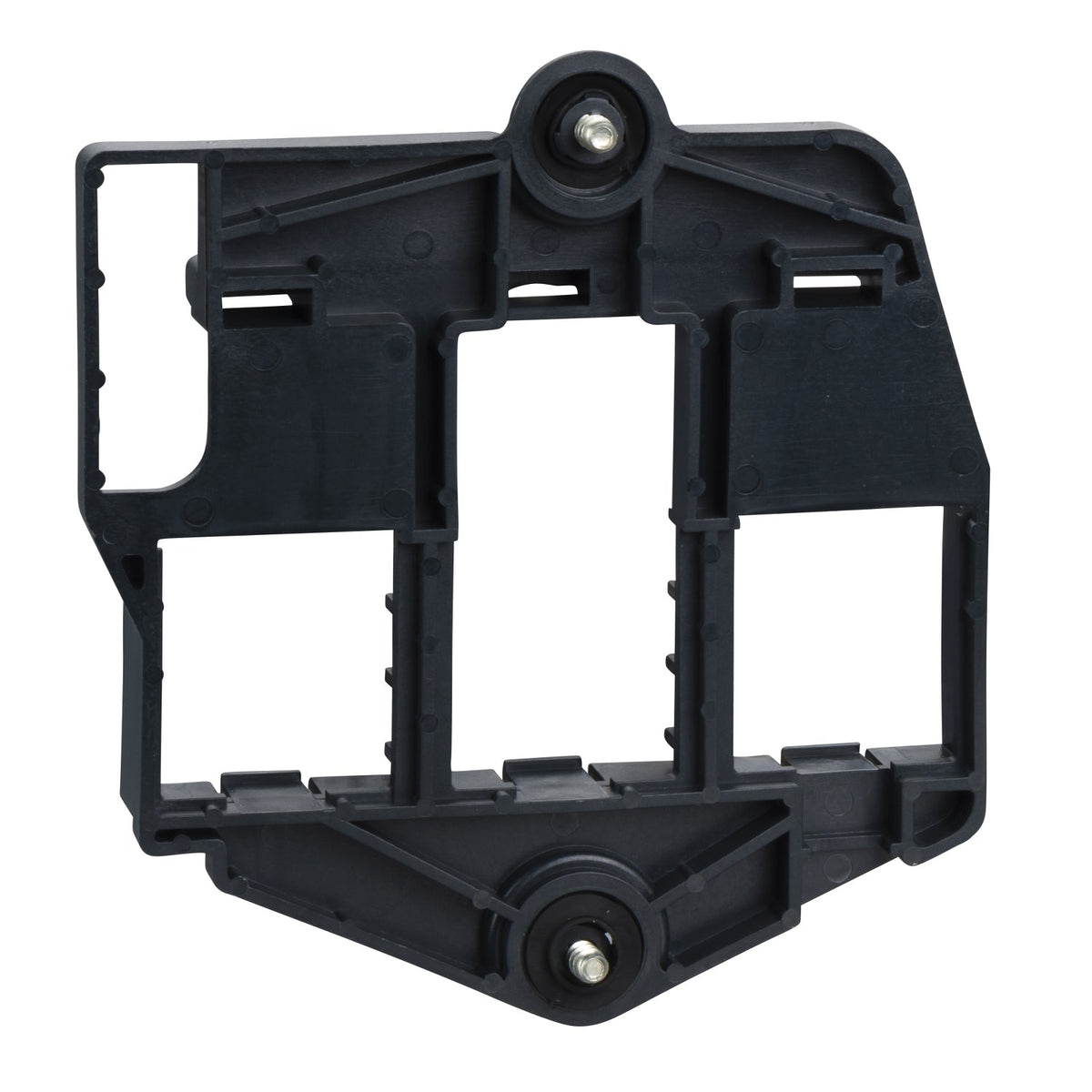

Schneider Electric LV432525 ComPacT NSX400-630 auxiliary connector support
Schneider Electric LV432525 ComPacT NSX400-630 auxiliary connector support

Schneider Electric LV432525 ComPacT NSX400-630 Auxiliary Connector Support 3 Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV432525
Catalog No: LV432525
Series: ComPacT NSX400...630 | ComPacT NSX400...630 DC | ComPact NSX400...630 | ComPact NSX400...630 DC
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$16.04

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV432525 is the support for the moving part of the automatic auxiliary connector used on ComPacT/ComPact NSX400 and NSX630 circuit breakers. It fits plug-in or withdrawable breaker installations and accepts up to 3 moving connectors with 9 wires each, so it completes the auxiliary-wiring path between the breaker and the switchboard.

Technical Specifications

SKU LV432525
Brand Schneider Electric
GTIN 3606480021732
Range ComPacT/ComPact NSX400...630 (AC and DC)
Product type Support
Device application Wiring
Range compatibility ComPacT/ComPact NSX400, NSX630 (AC and DC)
Accepts moving connectors 3, 9 wires each (up to 27 wires total)

Selection Notes

This support is the fixed, plug-in-base side of the auxiliary connector; it must be paired with the matching moving-part connector (sold separately) mounted on the breaker to complete the wiring path. It is sized for NSX400/630 frames only — NSX100/160/250 breakers use the equivalent support rated for 2 moving connectors instead.

Technical Details

Short Description
ComPacT NSX400/630 automatic auxiliary connector support, accepts 3 moving connectors.
Mounting Type
Plug-in base
Catalog No
LV432525
Delivery Date (Days)
30 days
Model Number
support
Tariff Code
853890
