Schneider Electric LV432523 ComPacT NSX400-630 Auxiliary Connector Moving Part Circuit Breaker Accessory

% $-22.53

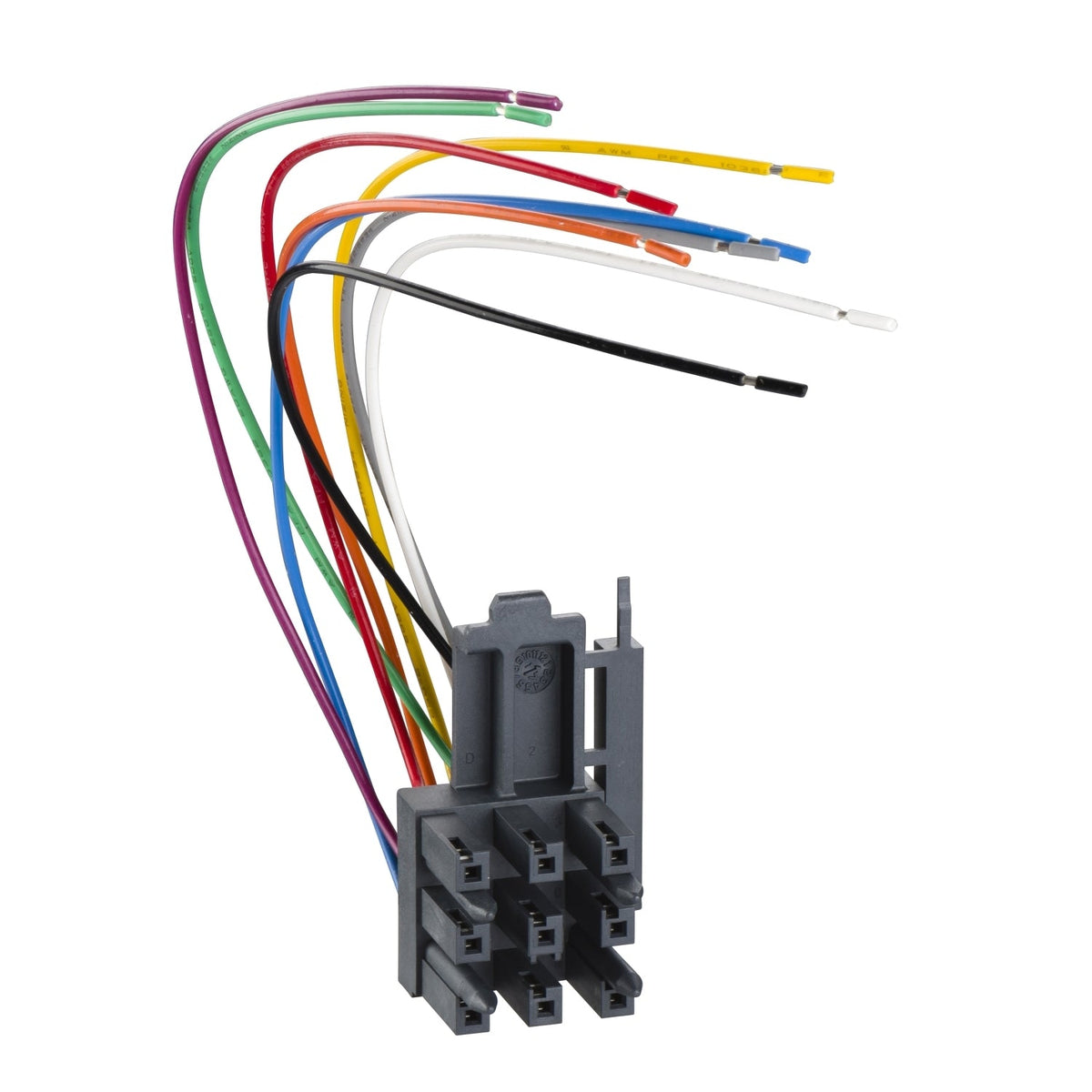

Schneider Electric LV432523 ComPacT NSX400-630 auxiliary connector moving part - 9 wires
Schneider Electric LV432523 ComPacT NSX400-630 auxiliary connector moving part - 9 wires

Schneider Electric LV432523 ComPacT NSX400-630 Auxiliary Connector Moving Part Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV432523
Catalog No: LV432523
Series: ComPacT NSX400...630 | ComPacT NSX400...630 DC | ComPact NSX400...630 | ComPact NSX400...630 DC
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$22.53

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV432523 is the moving part of an automatic auxiliary connector for ComPacT/ComPact NSX400 and NSX630 circuit breakers, carrying up to 9 wires. It mounts on plug-in or withdrawable breakers and mates with a dedicated support to connect the breaker's indication contacts, voltage releases, motor mechanisms and MicroLogic trip-unit options without individual wiring at each racking cycle.

Technical Specifications

SKU LV432523
Brand Schneider Electric
GTIN 3606480021725
Range ComPacT/ComPact NSX400...630 (AC and DC)
Product type Connector kit, moving part
Device application Wiring
Range compatibility ComPacT/ComPact NSX400, NSX630 (AC and DC)
Total number of wires 9

Selection Notes

This is the breaker-side moving part only; it requires the matching fixed support (mounted on the plug-in base) to complete the auxiliary connection, and NSX400/630 breakers accept up to 3 of these 9-wire connectors for a maximum of 27 auxiliary wires. For the smaller NSX100/160/250 frame, use the equivalent moving part sized for that frame instead.

Technical Details

Short Description
ComPacT NSX400/630 automatic auxiliary connector, moving part, 9 wires.
Mounting Type
Plug-in / withdrawable breaker
Catalog No
LV432523
Delivery Date (Days)
30 days
Model Number
9-wire moving connector
Tariff Code
853890
