Schneider Electric LV431549 ComPacT NSX250 Communicating Motor Mechanism MTc250 220-240 V AC Accessory

% $-577.13

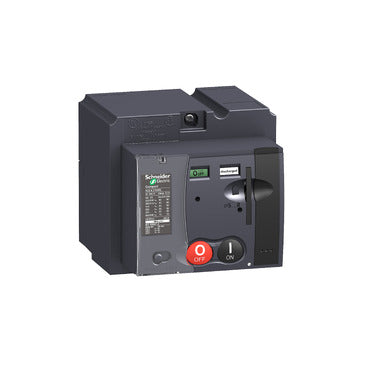

Schneider Electric LV431549 communicating motor mechanism MTc250 for ComPacT NSX250
Schneider Electric LV431549 communicating motor mechanism MTc250 for ComPacT NSX250

Schneider Electric LV431549 ComPacT NSX250 Communicating Motor Mechanism MTc250 220-240 V AC Accessory

Brand: Schneider Electric
Reference No: LV431549
Tariff Code (HS): 85362090
Rated Voltage: 220-240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$577.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV431549 is a communicating motor mechanism (MTc250) for fixed ComPacT NSX250 and PowerPact J-frame circuit breakers, supplied at 220-240 V AC. It automates spring-charging and can receive external opening and closing orders while keeping all indications visible. It responds to an open command in under 700 ms and a close command in under 80 ms, up to 4 operations per minute.

Technical Specifications

Reference LV431549
GTIN 3606480020254
Brand Schneider Electric
Device Short Name MTc250
Range Compatibility ComPacT NSX250, NSX250 DC
Device Application Automatic spring charging
Control Type Communicating
[Uc] Control Circuit Voltage 220-240 V AC, 50/60 Hz
Circuit Breaker Mounting Mode Fixed
Compatible Frame Current 250 A
Control Signal Type Impulse, maintained
Response Time Open < 700 ms, close < 80 ms
Max. Power Consumption 500 VA (opening and closing)
Provided Equipment SDE adaptor

Selection Notes

The communicating MTc250 adds remote open/close command over the standard MT250 mechanism (LV431542), so specify it when the breaker must accept external control signals from a supervisory or EcoStruxure system rather than operate on local spring-charging alone.

Technical Details

Short Description
The Schneider Electric LV431549 is a communicating motor mechanism (MTc250) for fixed ComPacT NSX250 and PowerPact J-frame circuit breakers,...
Rated Voltage (VAC)
220-240 V AC
Mounting Type
Fixed, on-device
Delivery Date (Days)
30 days
Model Number
Communicating Motor Mechanism MTc250
Tariff Code
85362090
