Schneider Electric LV429526 ComPacT NSX100-250 Escutcheon Toggle Trip Unit Access IP30 Accessory

% $-28.08

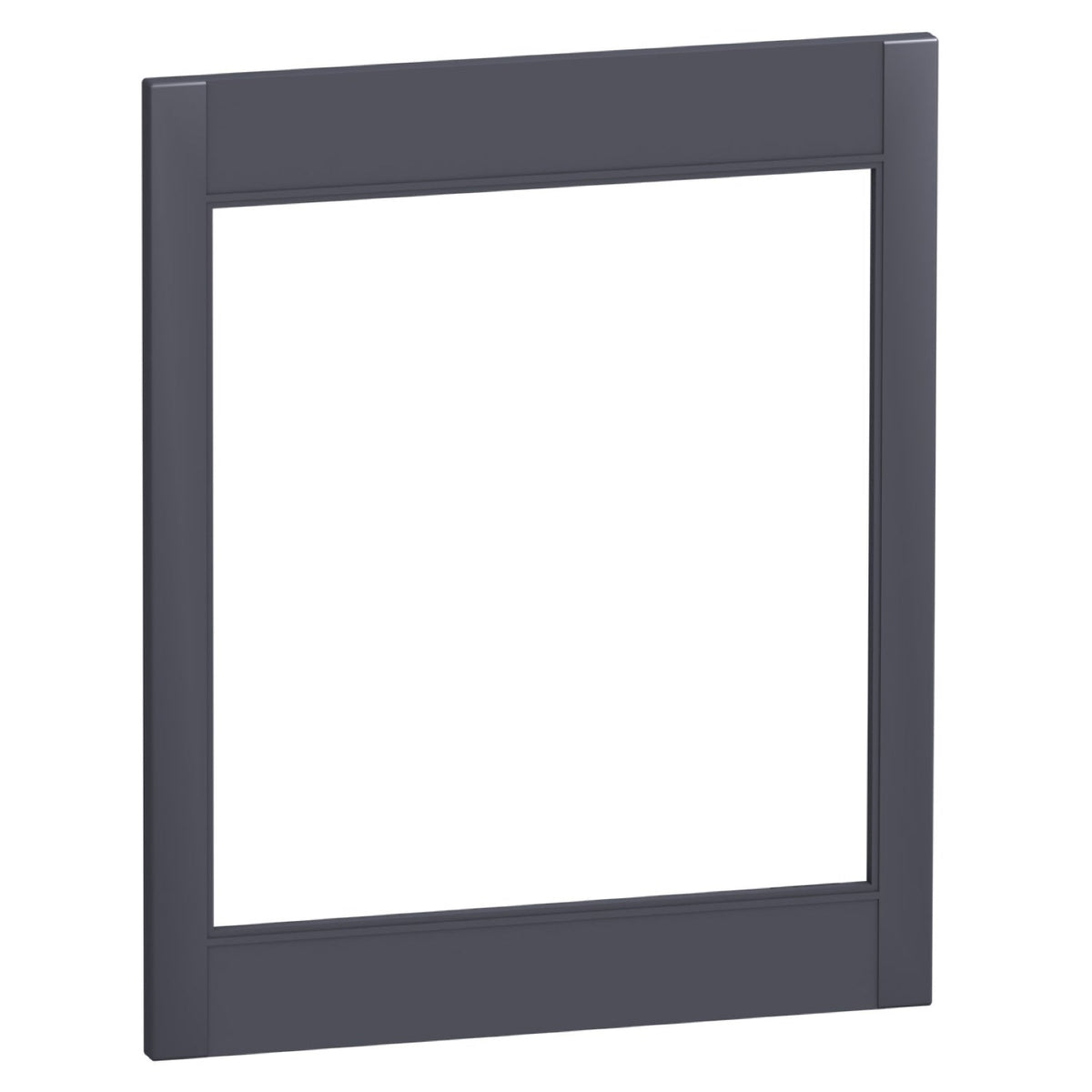

Schneider Electric LV429526 escutcheon for toggle ComPacT NSX100-250 with trip unit access, IP30
Schneider Electric LV429526 escutcheon for toggle ComPacT NSX100-250 with trip unit access, IP30

Schneider Electric LV429526 ComPacT NSX100-250 Escutcheon Toggle Trip Unit Access IP30 Accessory

Brand: Schneider Electric
Reference No: LV429526
Catalog No: LV429526
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$28.08

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV429526 is a front panel escutcheon for fixed, toggle-operated ComPacT NSX100, NSX160 and NSX250 circuit breakers, with a cut-out for trip unit access. Mounted on the switchboard door, it reaches IP30, letting technicians adjust the trip unit settings without removing the escutcheon or opening the switchboard door for routine calibration checks.

Technical Specifications

Reference LV429526
Brand Schneider Electric
Range Compatibility ComPacT NSX100, NSX160, NSX250, NSX100 DC, NSX160 DC, NSX250 DC
Component Type Escutcheon
Accessory Category Insulation accessory
Control Type Toggle
Mounting Mode Fixed
IP Degree of Protection IP30 (IEC 60529)
Cut-Out Trip unit access

Selection Notes

Choose this escutcheon over the general LV429317 escutcheon when the panel needs direct front access to the trip unit for setting adjustments without removing the cover; it only fits toggle-operated, fixed-mounted NSX100-250 breakers, not plug-in or withdrawable ones. It only comes in the toggle-control version, unlike LV429317 which covers all control types.

Technical Details

Short Description
The Schneider Electric LV429526 is a front panel escutcheon for fixed, toggle-operated ComPacT NSX100, NSX160 and NSX250 circuit breakers, with a...
Mounting Type
Fixed, switchboard door
Protection Type
IP30
Catalog No
LV429526
Delivery Date (Days)
30 days
Model Number
Escutcheon
Tariff Code
853890
