Schneider Electric LV429515 ComPacT NSX100-250 Short Terminal Shield 3P 35 mm IP40 Circuit Breaker Accessory

% $-18.51

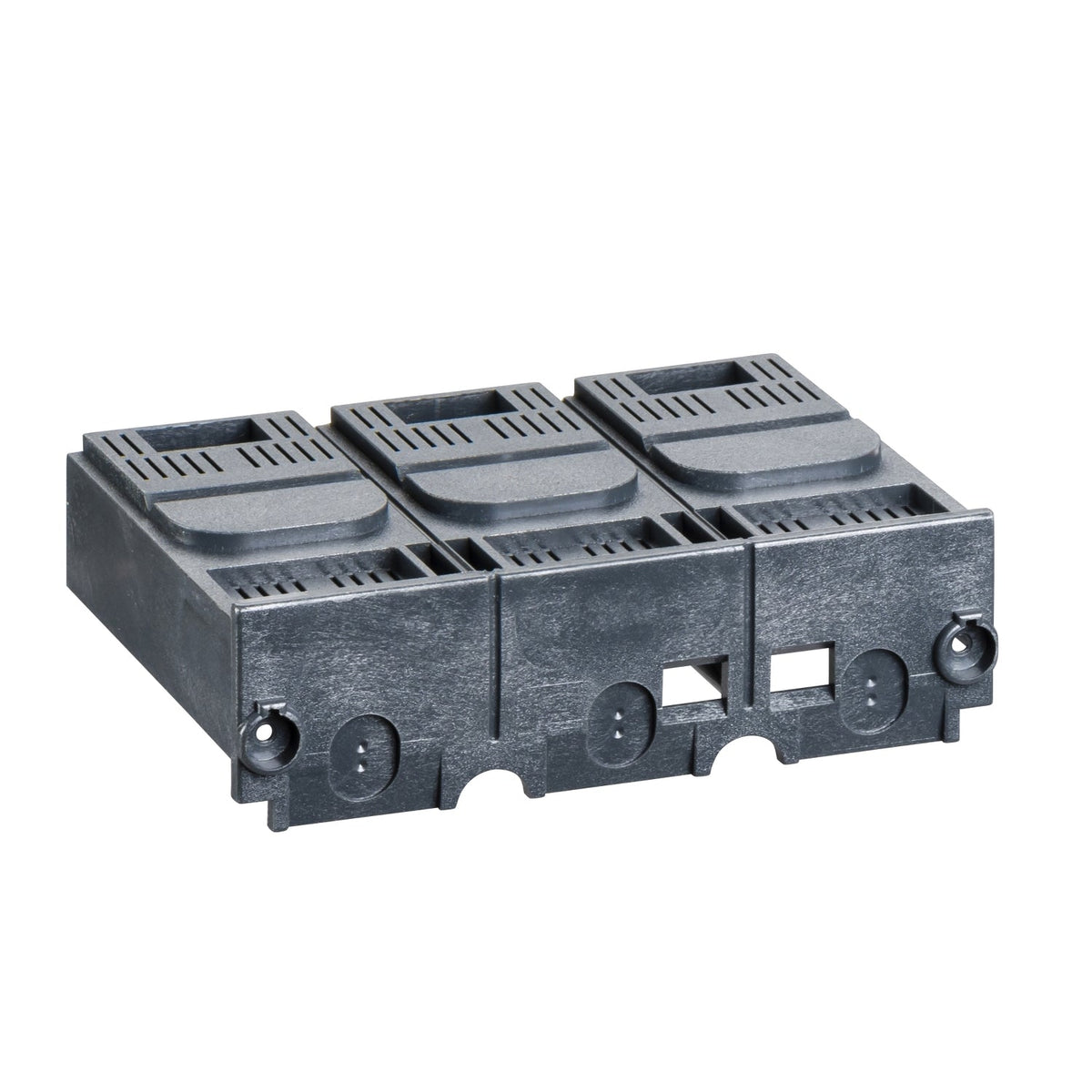

Schneider Electric LV429515 short terminal shield for ComPacT NSX100-250, 3P, IP40
Schneider Electric LV429515 short terminal shield for ComPacT NSX100-250, 3P, IP40

Schneider Electric LV429515 ComPacT NSX100-250 Short Terminal Shield 3P 35 mm IP40 Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV429515
Catalog No: LV429515
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$18.51

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV429515 is a short terminal shield for 3-pole ComPacT NSX100, NSX160, NSX250 and EasyPact CVS100-250 circuit breakers, with a 35 mm connection pitch. It meets the IEC 60947-2 clearance distance and reaches IP40, IK07. It fits fixed, plug-in and withdrawable mounting and can be installed upstream or downstream of the device.

Technical Specifications

Reference LV429515
GTIN 3606480019890
Brand Schneider Electric
Range Compatibility ComPacT NSX100, NSX160, NSX250, NSX100 DC, NSX160 DC, NSX250 DC, EasyPact CVS100, CVS160, CVS250
Component Type Short terminal shield
Accessory Category Insulation accessories
Poles 3P
Connection Pitch 35 mm
Product Compatibility Circuit-breaker, plug-in base
IP Degree of Protection IP40 (IEC 60529)
Country of Origin France

Selection Notes

This short shield fits fixed, plug-in and withdrawable NSX100-250/CVS100-250 breakers at a 35 mm pitch; two are used per plug-in kit (LV429289). Use the long terminal shield instead when the application connects cables or insulated bars rather than busbars.

Technical Details

Short Description
The Schneider Electric LV429515 is a short terminal shield for 3-pole ComPacT NSX100, NSX160, NSX250 and EasyPact CVS100-250 circuit breakers,...
Mounting Type
Upstream / downstream
Protection Type
IP40 / IK07
Catalog No
LV429515
Delivery Date (Days)
30 days
Model Number
Short Terminal Shield
Tariff Code
853890
