Schneider Electric LV429441 ComPacT NSX100-160 Communicating Motor Mechanism 220-240 V AC Accessory

% $-576.64

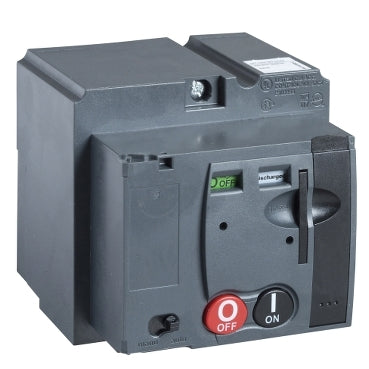

Schneider Electric LV429441 communicating motor mechanism MTc100/160 for ComPacT NSX100-160
Schneider Electric LV429441 communicating motor mechanism MTc100/160 for ComPacT NSX100-160

Schneider Electric LV429441 ComPacT NSX100-160 Communicating Motor Mechanism 220-240 V AC Accessory

Brand: Schneider Electric
Reference No: LV429441
Tariff Code (HS): 85362090
Rated Voltage: 220-240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$576.64

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV429441 is a communicating motor mechanism (MTc100/160) for fixed ComPacT NSX100 and NSX160 circuit breakers, supplied at 220-240 V AC. It automates spring-charging and can receive remote open/close orders while keeping all breaker indications visible. It responds to an open command in under 700 ms and a close command in under 80 ms, up to 4 operations per minute.

Technical Specifications

Reference LV429441
GTIN 3606480020247
Brand Schneider Electric
Device Short Name MTc100/160
Range Compatibility ComPacT NSX100, NSX160, NSX100 DC, NSX160 DC
Device Application Automatic spring charging
Control Type Communicating
[Uc] Control Circuit Voltage 220-240 V AC, 50/60 Hz
Circuit Breaker Mounting Mode Fixed
Compatible Frame Current 100 A, 160 A
Control Signal Type Impulse, maintained
Response Time Open < 700 ms, close < 80 ms
Max. Operating Frequency 4 per minute
Max. Power Consumption 500 VA (opening and closing)
Provided Equipment SDE adaptor

Selection Notes

The communicating MTc100/160 adds remote open/close control over the standard MT100/160 mechanism, so pick it for breakers that need external command signals rather than local spring-charging only; the SDE adaptor is included, not a separate part to order.

Technical Details

Short Description
The Schneider Electric LV429441 is a communicating motor mechanism (MTc100/160) for fixed ComPacT NSX100 and NSX160 circuit breakers, supplied at...
Rated Voltage (VAC)
220-240 V AC
Mounting Type
Fixed, on-device
Delivery Date (Days)
30 days
Model Number
Communicating Motor Mechanism MTc100/160
Tariff Code
85362090
