Schneider Electric LV429317 ComPacT NSX100-250 Escutcheon All Control Types IP40 Circuit Breaker Accessory

% $-17.65

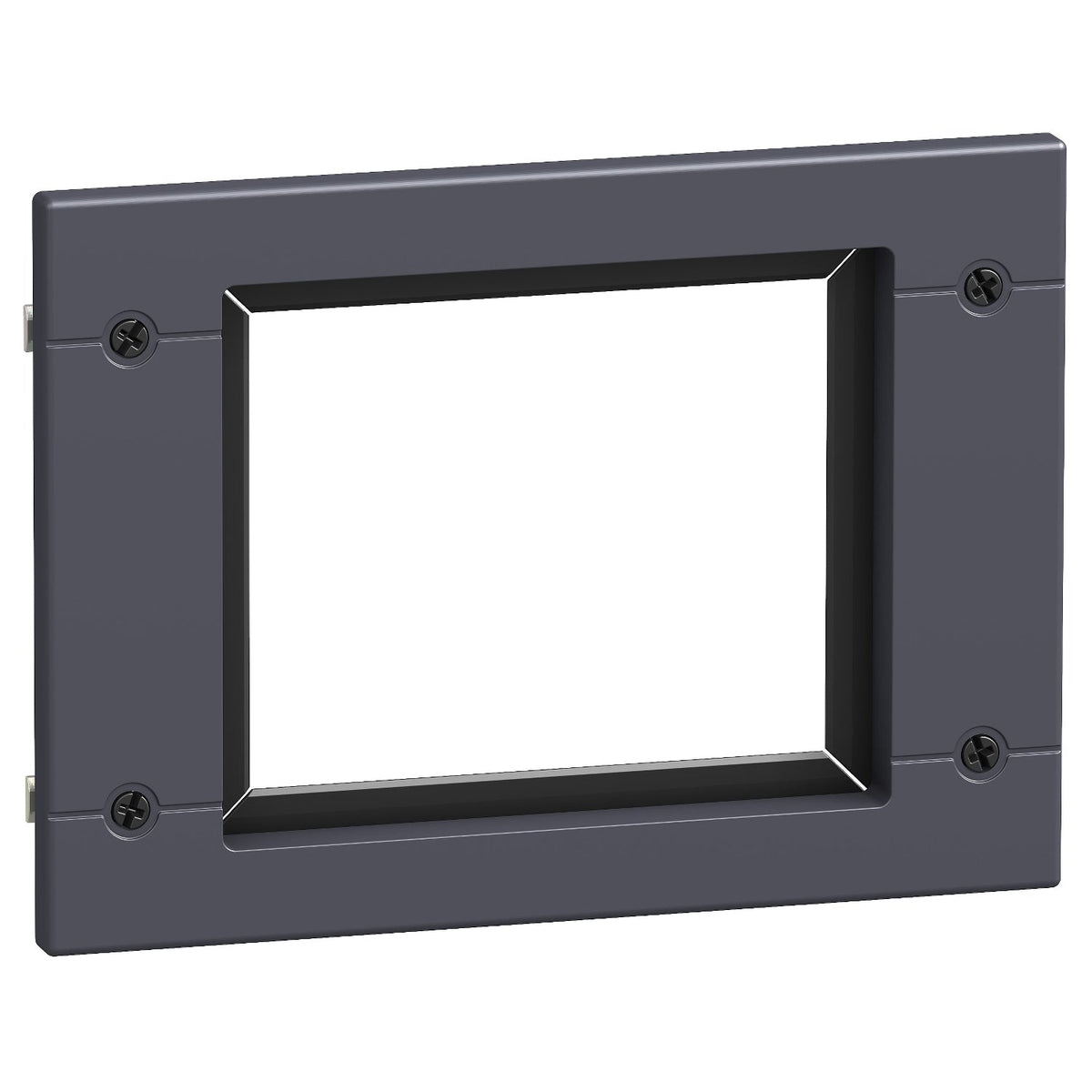

Schneider Electric LV429317 escutcheon for fixed ComPacT NSX100-250, all control types, IP40
Schneider Electric LV429317 escutcheon for fixed ComPacT NSX100-250, all control types, IP40

Schneider Electric LV429317 ComPacT NSX100-250 Escutcheon All Control Types IP40 Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV429317
Catalog No: LV429317
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$17.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV429317 is a front panel escutcheon for fixed ComPacT NSX100, NSX160, NSX250 and EasyPact CVS100-250 circuit breakers. Mounted on the switchboard door, it raises the enclosure degree of protection to IP40 and IK07 around toggle, rotary handle or motor mechanism controls. One reference covers all three control types, simplifying stock for panel builders fitting mixed controls.

Technical Specifications

Reference LV429317
GTIN 3606480021152
Brand Schneider Electric
Range Compatibility ComPacT NSX100, NSX160, NSX250, NSX100 DC, NSX160 DC, NSX250 DC, EasyPact CVS100, CVS160, CVS250
Component Type Escutcheon
Accessory Category Insulation accessory
Control Type Toggle, rotary handle, motor mechanism
Mounting Mode Fixed
IP Degree of Protection IP40 (IEC 60529)
Country of Origin Poland

Selection Notes

This escutcheon covers all three control types (toggle, rotary handle, motor mechanism) on fixed NSX100-250/CVS100-250 breakers, so the same reference works regardless of which control accessory is fitted; only the fixed-mounting variant is covered, not plug-in or withdrawable devices.

Technical Details

Short Description
The Schneider Electric LV429317 is a front panel escutcheon for fixed ComPacT NSX100, NSX160, NSX250 and EasyPact CVS100-250 circuit breakers.
Mounting Type
Fixed, switchboard door
Protection Type
IP40 / IK07
Catalog No
LV429317
Delivery Date (Days)
30 days
Model Number
Escutcheon
Tariff Code
853890
